Long-Travel Micrometer Heads

SHS - SHN - SHH - MHN

Long-Travel Micrometer Heads
In stock
SKU
SHS - SHN - SHH - MHN
OptoSigma's Long-Travel Micrometer Heads provide exceptionally high-resolution adjustment as well as enduring durability. Options include ranges of 25 and 50 mm. These micrometer adjusters are made with industry-standard specifications including the 500-micrometer thread pitch and shank diameters of 9.5, 10, and 12 mm. The micrometers have graduated marked where the smallest distance is 10 micrometers. Round or flat tip options are available but flat-tip spindles require a centered ball tip push point, as found on all of our translation stages. If you are wondering, yes, they are.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Delivery Price Add to cart
i

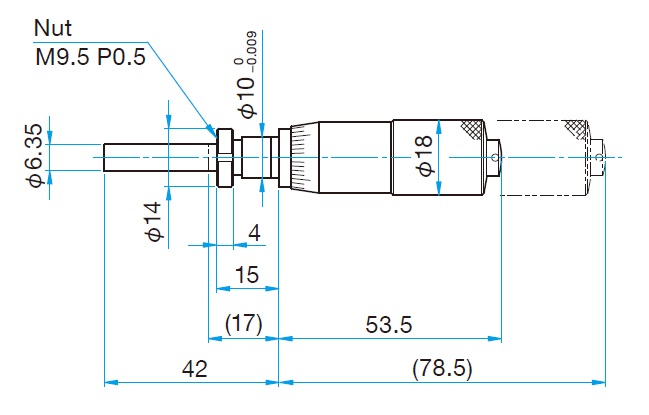

25mm Travel Micrometer Head, Flat Carbide Tip, 10mm Shank Diameter
SHN2-25
0 - 25mm
in stock
$55.00
Travel 0 - 25mm
Type Standard
Readable Resolution 0.01mm
Lead of Actuator 0.5mm
Load Capacity (Static load) 39.2N(4kgf)
Tip Style Flat
i
50mm Travel Micrometer Head, Flat Carbide Tip, 12mm Shank Diameter
SHH2-50
0 - 50mm
2 weeks
$162.00
Travel 0 - 50mm
Type Standard
Readable Resolution 0.01mm
Lead of Actuator 0.5mm
Load Capacity (Static load) 39.2N(4kgf)
Tip Style Flat
i
25mm Travel Micrometer Head, Flat Carbide Tip, 12mm Shank Diameter
SHH2-25
0 - 25mm
2 weeks
$138.00
Travel 0 - 25mm
Type Standard
Readable Resolution 0.01mm
Lead of Actuator 0.5mm
Load Capacity (Static load) 39.2N(4kgf)
Tip Style Flat
i
25mm Travel Micrometer Head, Round Tip, 9.5mm Shank Diameter
SHS2-25-SR4
0 - 25mm
in stock
$84.00
Travel 0 - 25mm
Type Standard
Readable Resolution 0.01mm
Lead of Actuator 0.5mm
Load Capacity (Static load) 39.2N(4kgf)
Tip Style Round
i
25mm Travel Micrometer Head, Flat Carbide Tip, 9.5mm Shank Diameter
SHS2-25
0 - 25mm
in stock
$60.00
Travel 0 - 25mm
Type Small diameter
Readable Resolution 0.01mm
Lead of Actuator 0.5mm
Load Capacity (Static load) 39.2N(4kgf)
Tip Style Flat
i
40mm Travel Micrometer Head, Flat Carbide Tip, 10mm Shank Diameter
SHN2-40
0 - 40mm
2 weeks
$127.00
Travel 0 - 40mm
Type Small diameter
Readable Resolution 0.01mm
Lead of Actuator 0.5mm
Load Capacity (Static load) 39.2N(4kgf)
Tip Style Flat
