Fine Pitch Screw Actuators

FPSAN

Fine Pitch Screw Actuators
In stock
SKU
FPSAN
FPSAN Fine-pitch Adjustment Screws are intended as direct replacements for the micrometers used on OptoSigma stages but can also be used for any application requiring high-resolution adjustment. They are available in two sizes, M4 and M6, and have three mounting shank diameters: 6mm, 9.5mm, and 10mm. They are also available with two different thread pitches for each M4 and M6 size. The thread pitches are 0.50mm per thread (0.50P) and 0.25mm per thread (0.25P). Most micrometers have a 0.50mm thread pitch. Thread pitch is the distance between adjacent screw threads and represent how far the screw will travel in one full rotation, therefore the smaller thread pitch provides higher resulution.. Knobs are available and sold separately in either hex-key or screw-on types.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Length Delivery Price Add to cart
i

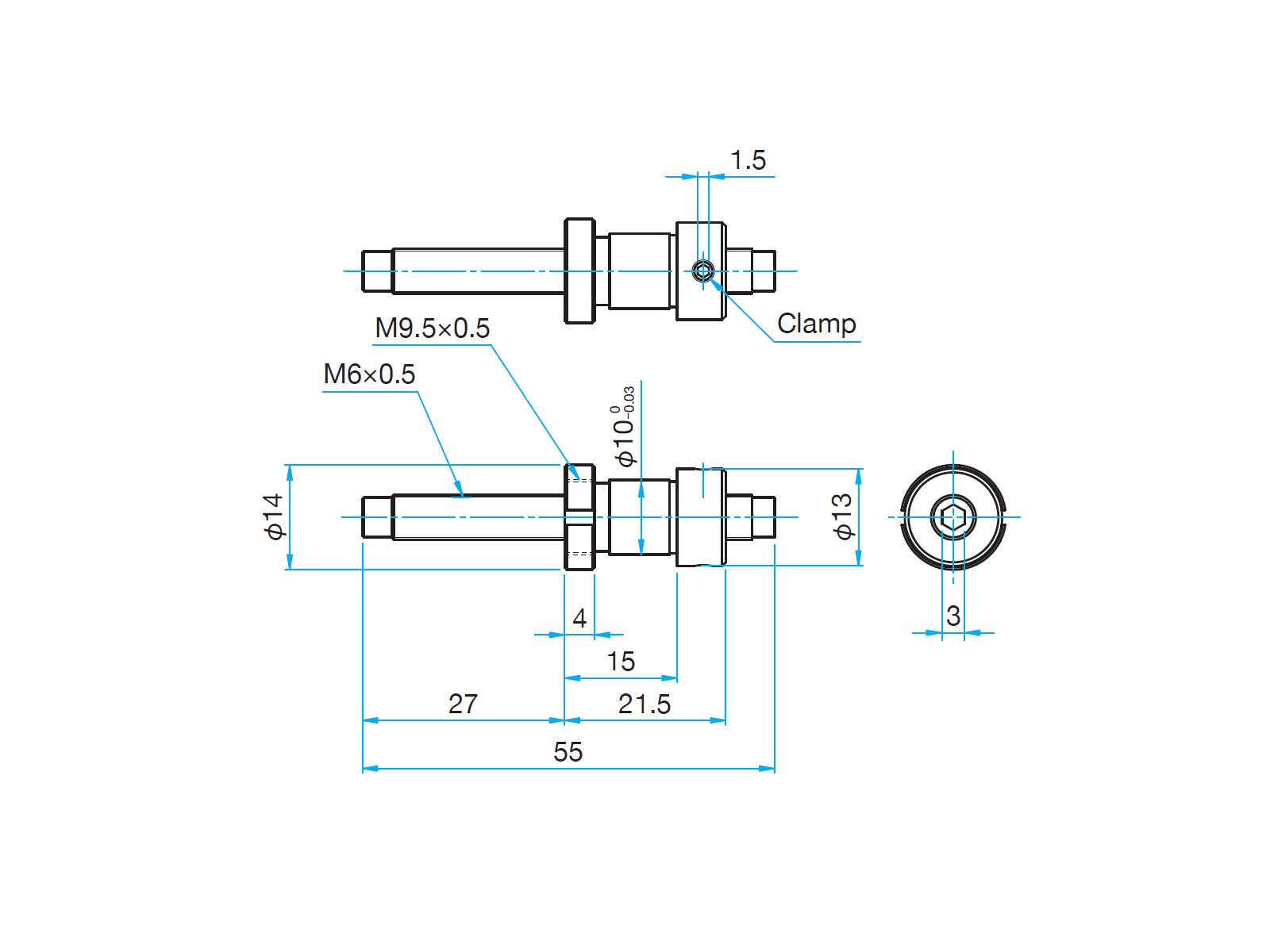

33.5mm Travel, Hex-Key Adjustment Screw, M6X0.50P Thd, Flat Carbide Tip, Locking, 10mm Shank
FPSAN-65055
55mm
2 weeks
$27.30
Screw M6
Pitch 0.5mm
Length 55mm
Bush Diameter 10mm
Bush Length 11mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.5, or KCL-304
i

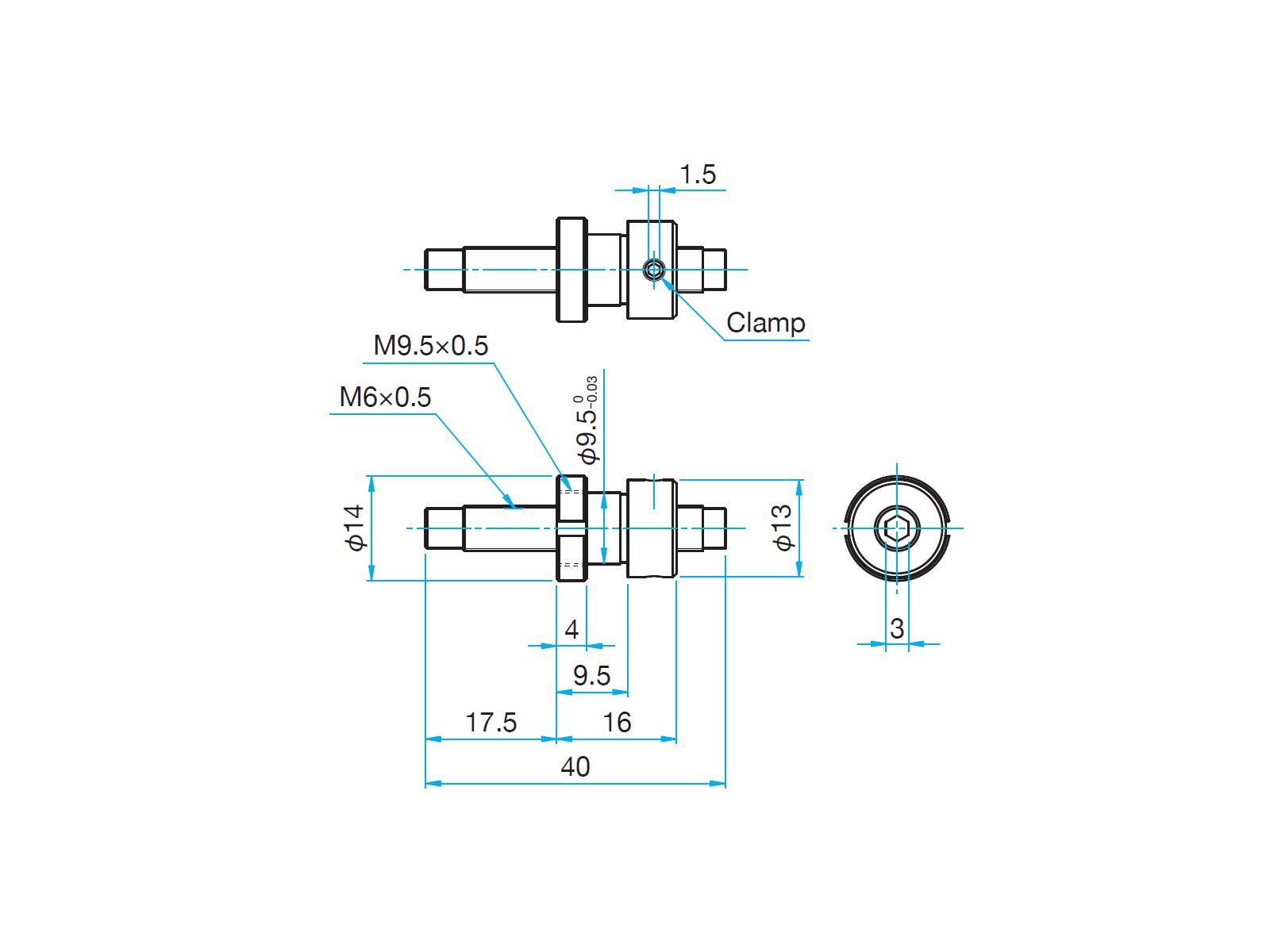

24mm Travel, Hex-Key Adjustment Screw, M6X0.50P Thd, Flat Carbide Tip, Locking, 9.5mm Shank
FPSAN-65040
40mm
2 weeks
$24.15
Screw M6
Pitch 0.5mm
Length 40mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.5, or KCL-304
i
14mm Travel, Hex-Key Adjustment Screw, M4X0.25P Thd, Ball Tip, Locking, 6mm Shank
FPSAN-42525R
26.2mm
2 weeks
$25.20
Screw M4
Pitch 0.25mm
Length 26.2mm
Bush Diameter 6mm
Bush Length 6mm
Load Capacity (Static load) 29.4N(3kgf)
Compatible Knobs FPSAN-M4-0.25, or KCL-203
i

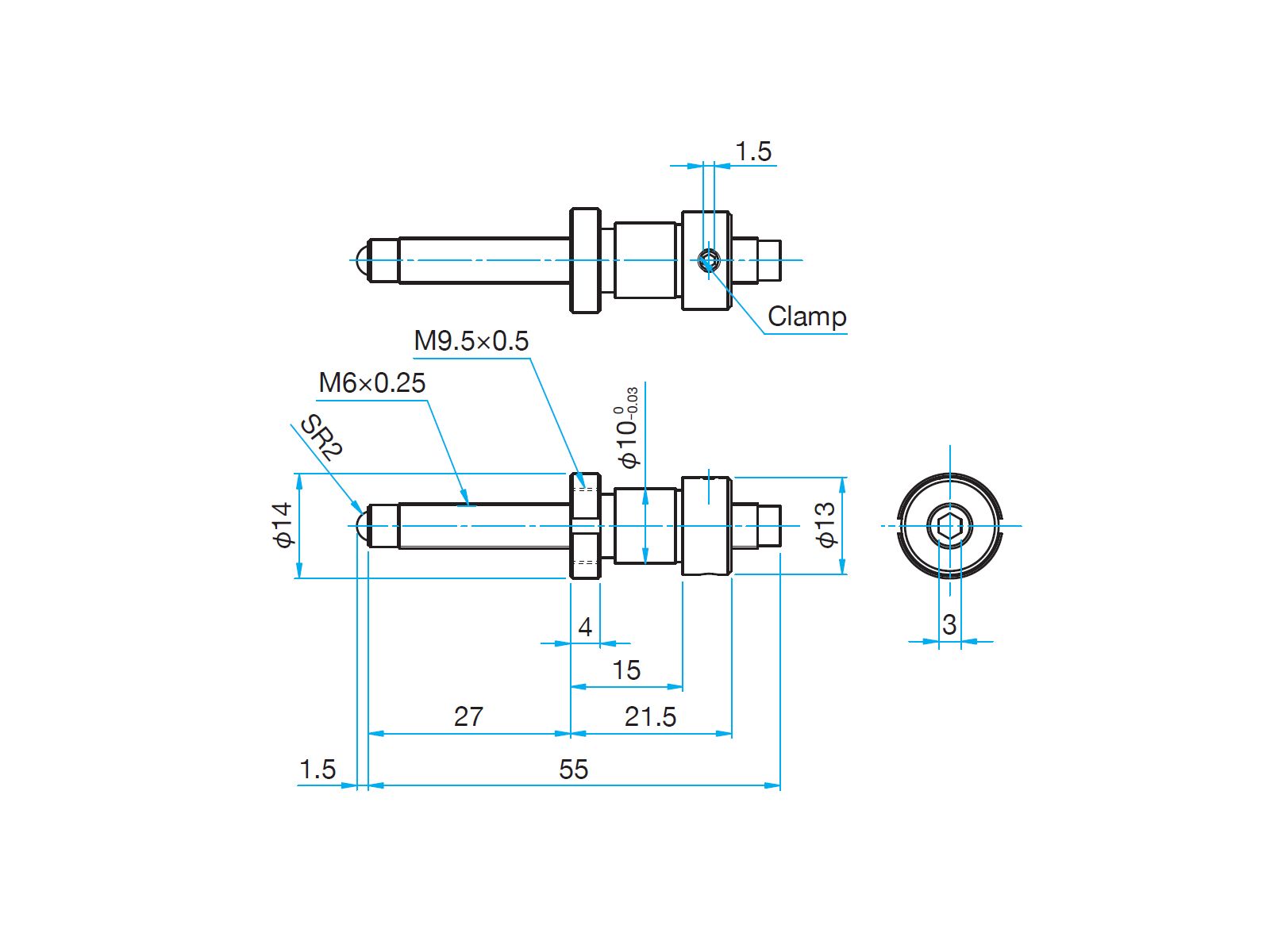

33.5mm Travel, Hex-Key Adjustment Screw, M6X0.25P Thd, Ball Tip, Locking, 10mm Shank
FPSAN-62555R
56.4mm
in stock
$30.45
Screw M6
Pitch 0.25mm
Length 56.4mm
Bush Diameter 10mm
Bush Length 11mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.25, or KCL-304
i

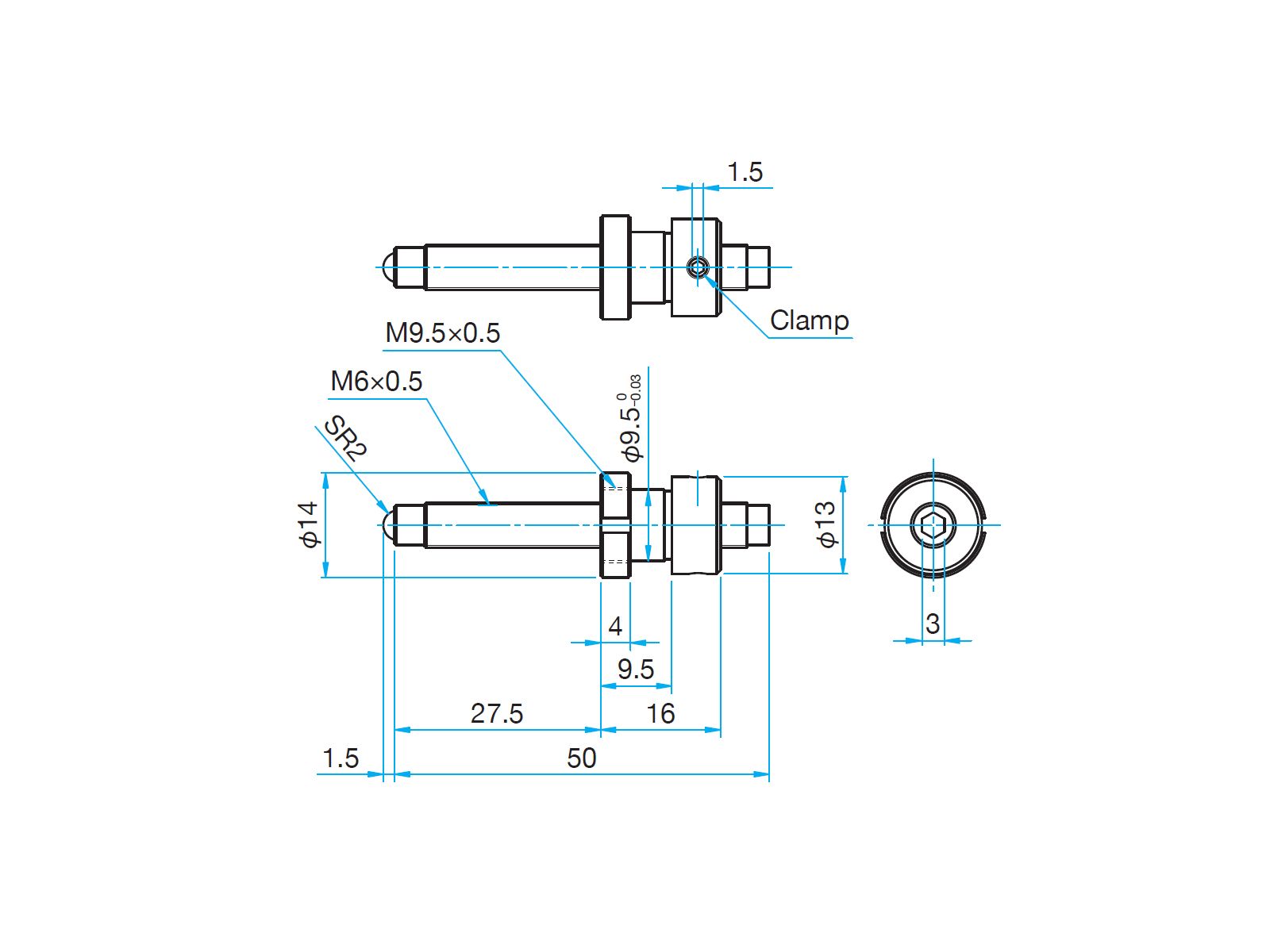

34mm Travel, Hex-Key Adjustment Screw, M6X0.50P Thd, Ball Tip, Locking, 9.5mm Shank
FPSAN-65050R
51.4mm
2 weeks
$30.45
Screw M6
Pitch 0.5mm
Length 51.4mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.5, or KCL-304
i

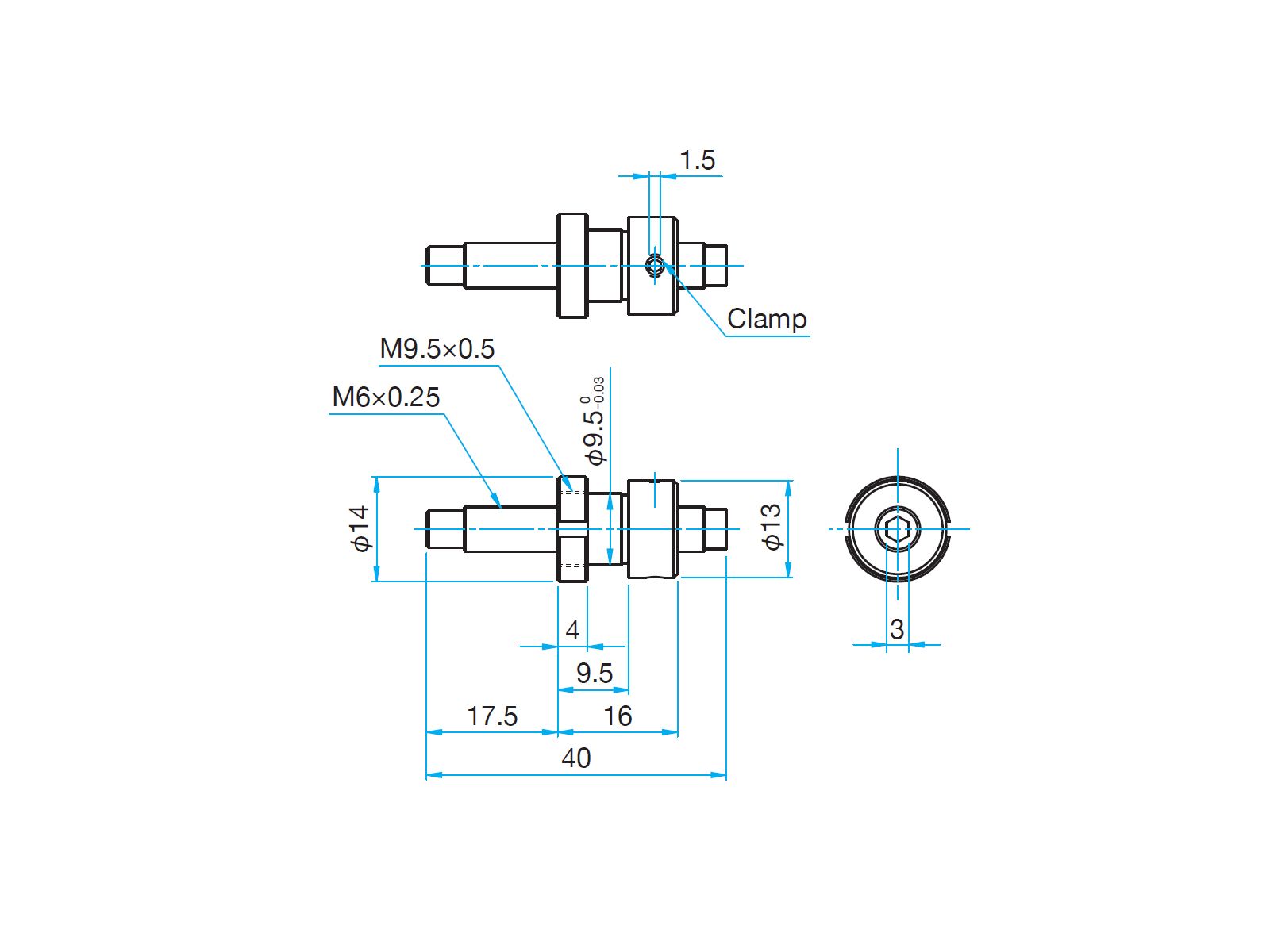

24mm Travel, Hex-Key Adjustment Screw, M6X0.25P Thd, Flat Carbide Tip, Locking, 9.5mm Shank
FPSAN-62540
40mm
in stock
$24.15
Screw M6
Pitch 0.25mm
Length 40mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.25, or KCL-304
i
33.5mm Travel, Hex-Key Adjustment Screw, M6X0.50P Thd, Ball Tip, Locking, 9.5mm Shank
FPSAN-65055R
56.4mm
2 weeks
$30.45
Screw M6
Pitch 0.5mm
Length 56.4mm
Bush Diameter 10mm
Bush Length 11mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.5, or KCL-304
i

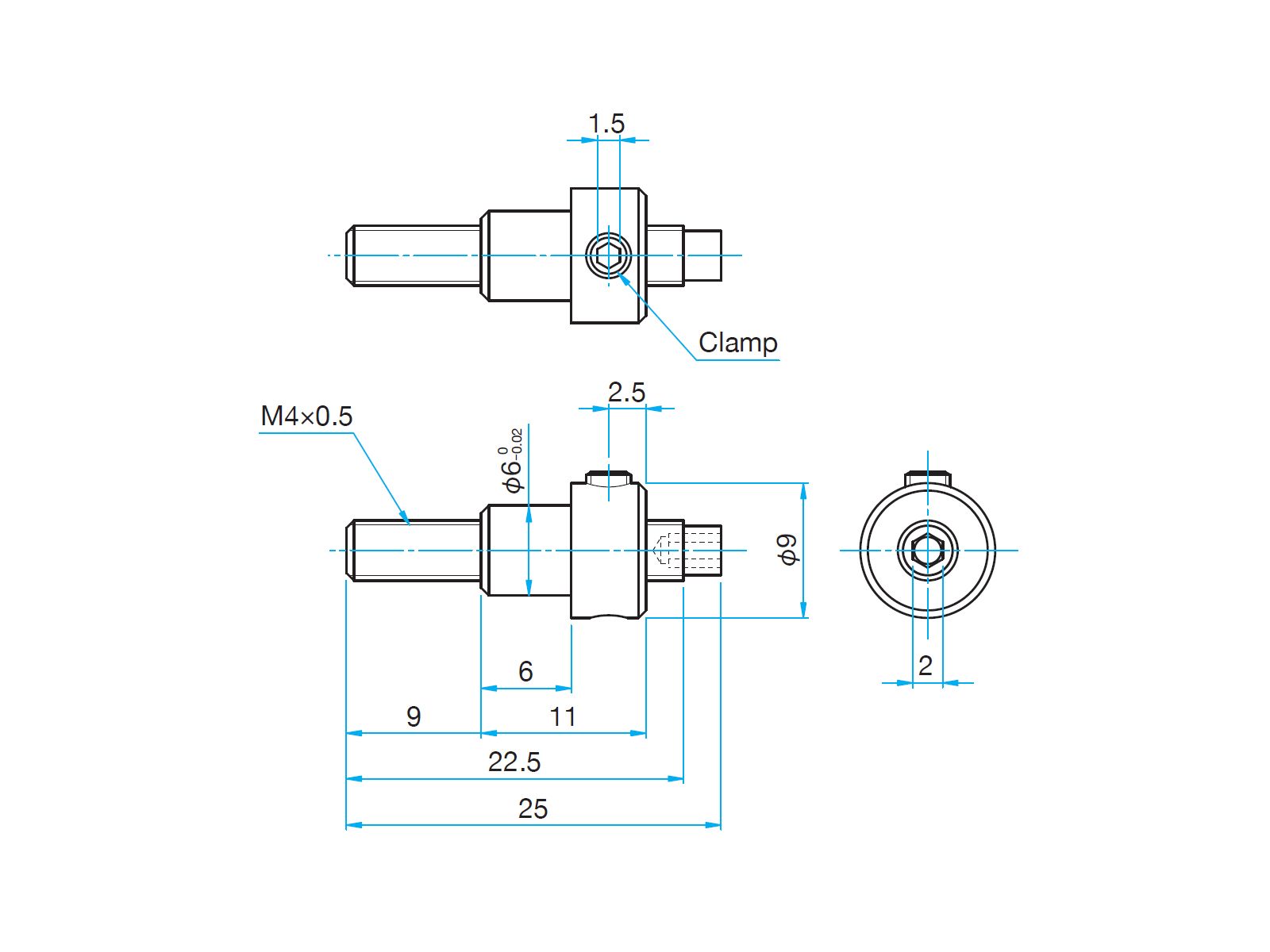

14mm Travel, Hex-Key Adjustment Screw, M4X0.50P Thd, Flat Carbide Tip, Locking, 6mm Shank
FPSAN-45025
25mm
2 weeks
$22.05
Screw M4
Pitch 0.5mm
Length 25mm
Bush Diameter 6mm
Bush Length 6mm
Load Capacity (Static load) 29.4N(3kgf)
Compatible Knobs FPSAN-M4-0.5, or KCL-203
i

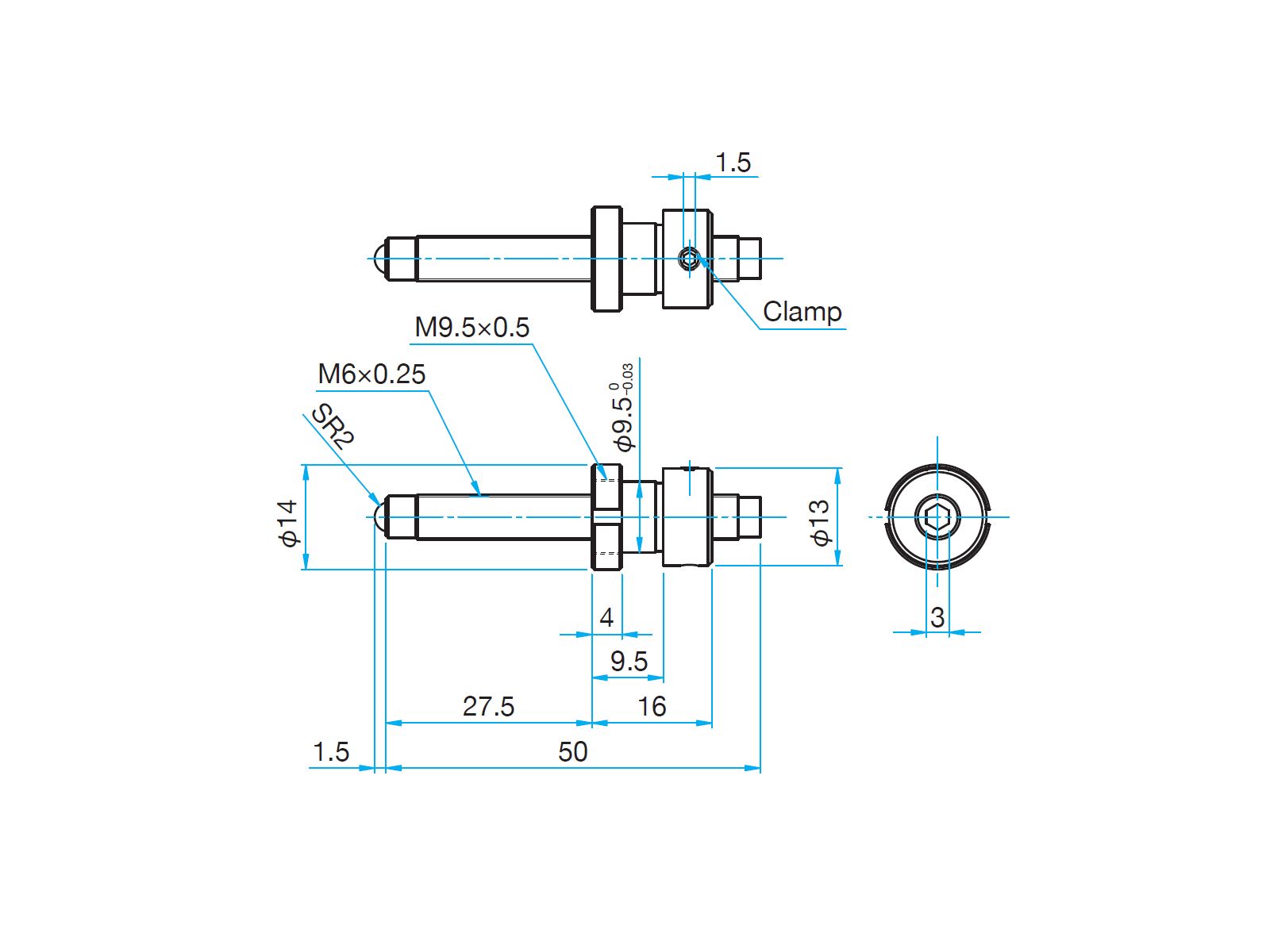

34mm Travel, Hex-Key Adjustment Screw, M6X0.25P Thd, Ball Tip, Locking, 9.5mm Shank
FPSAN-62550R
51.4mm
2 weeks
$30.45
Screw M6
Pitch 0.25mm
Length 51.4mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.25, or KCL-304
i

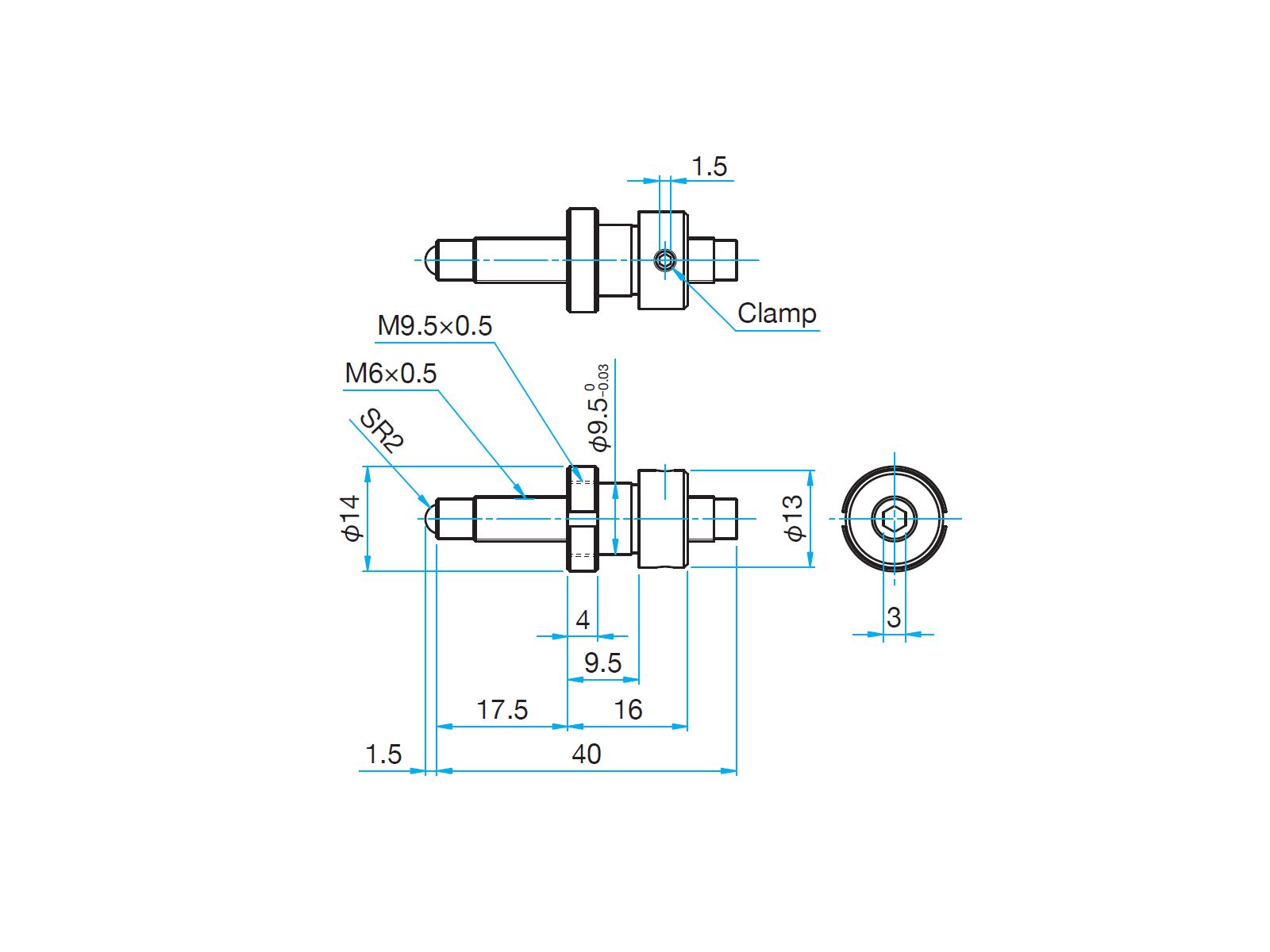

24mm Travel, Hex-Key Adjustment Screw, M6X0.50P Thd, Ball Tip, Locking, 9.5mm Shank
FPSAN-65040R
41.4mm
6-12 weeks
$27.30
Screw M6
Pitch 0.5mm
Length 41.4mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.5, or KCL-304
i

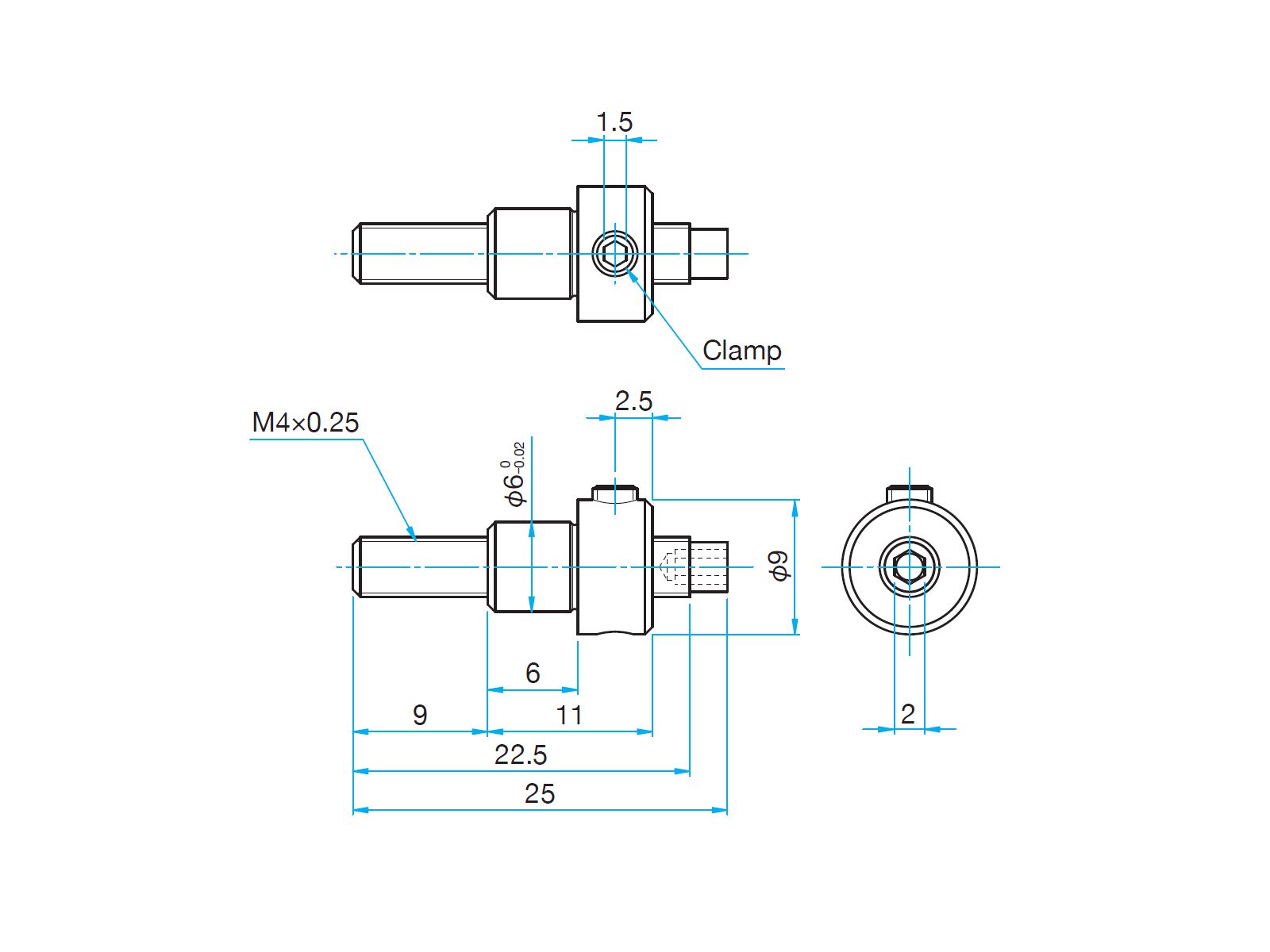

14mm Travel, Hex-Key Adjustment Screw, M4X0.25P Thd, Flat Carbide Tip, Locking, 6mm Shank
FPSAN-42525
25mm
in stock
$22.05
Screw M4
Pitch 0.25mm
Length 25mm
Bush Diameter 6mm
Bush Length 6mm
Load Capacity (Static load) 29.4N(3kgf)
Compatible Knobs FPSAN-M4-0.25, or KCL-203
i

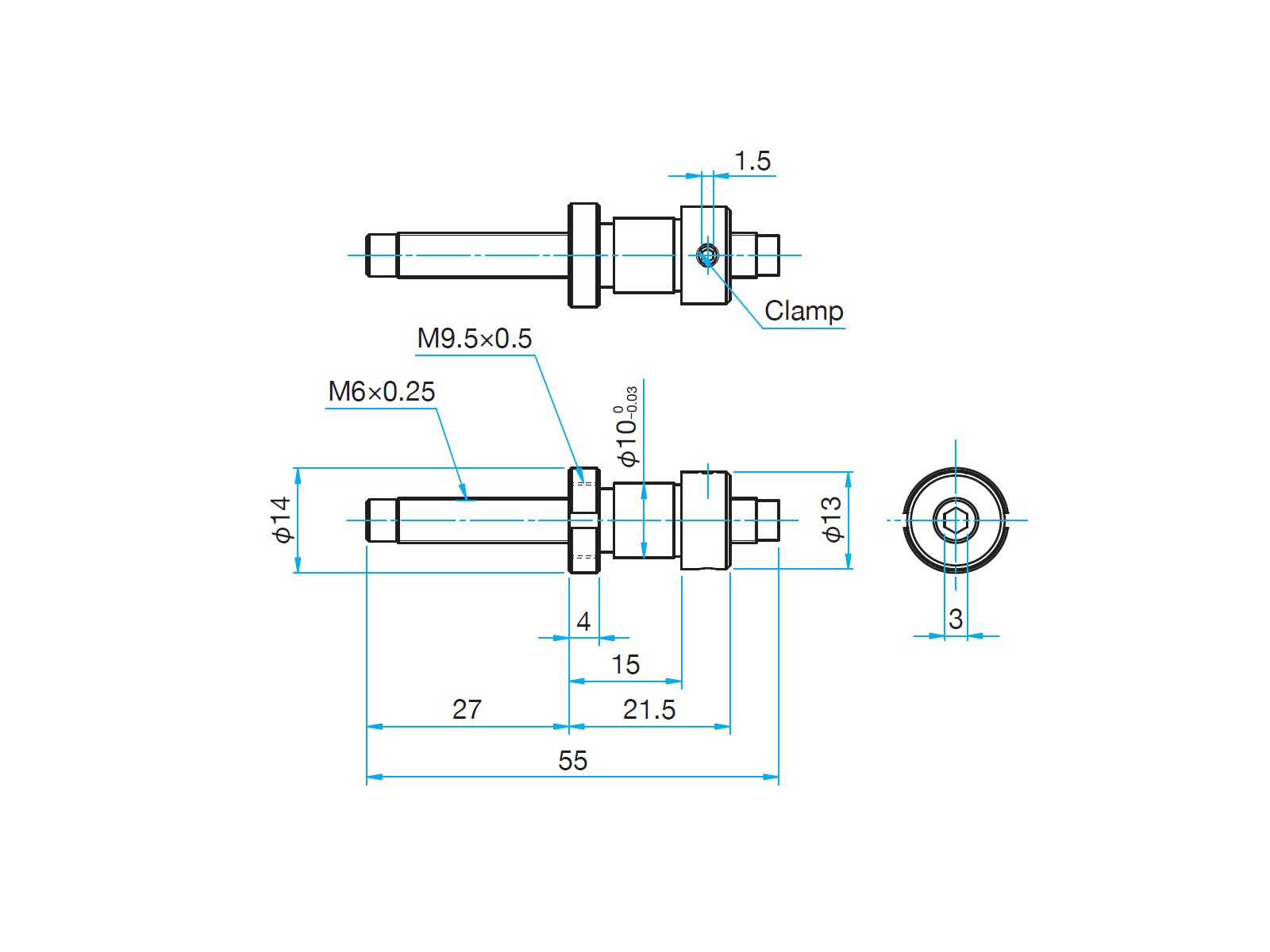

33.5mm Travel, Hex-Key Adjustment Screw, M6X0.25P Thd, Flat Carbide Tip, Locking, 10mm Shank
FPSAN-62555
55mm
2 weeks
$27.30
Screw M6
Pitch 0.25mm
Length 55mm
Bush Diameter 10mm
Bush Length 11mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.25, or KCL-304
i

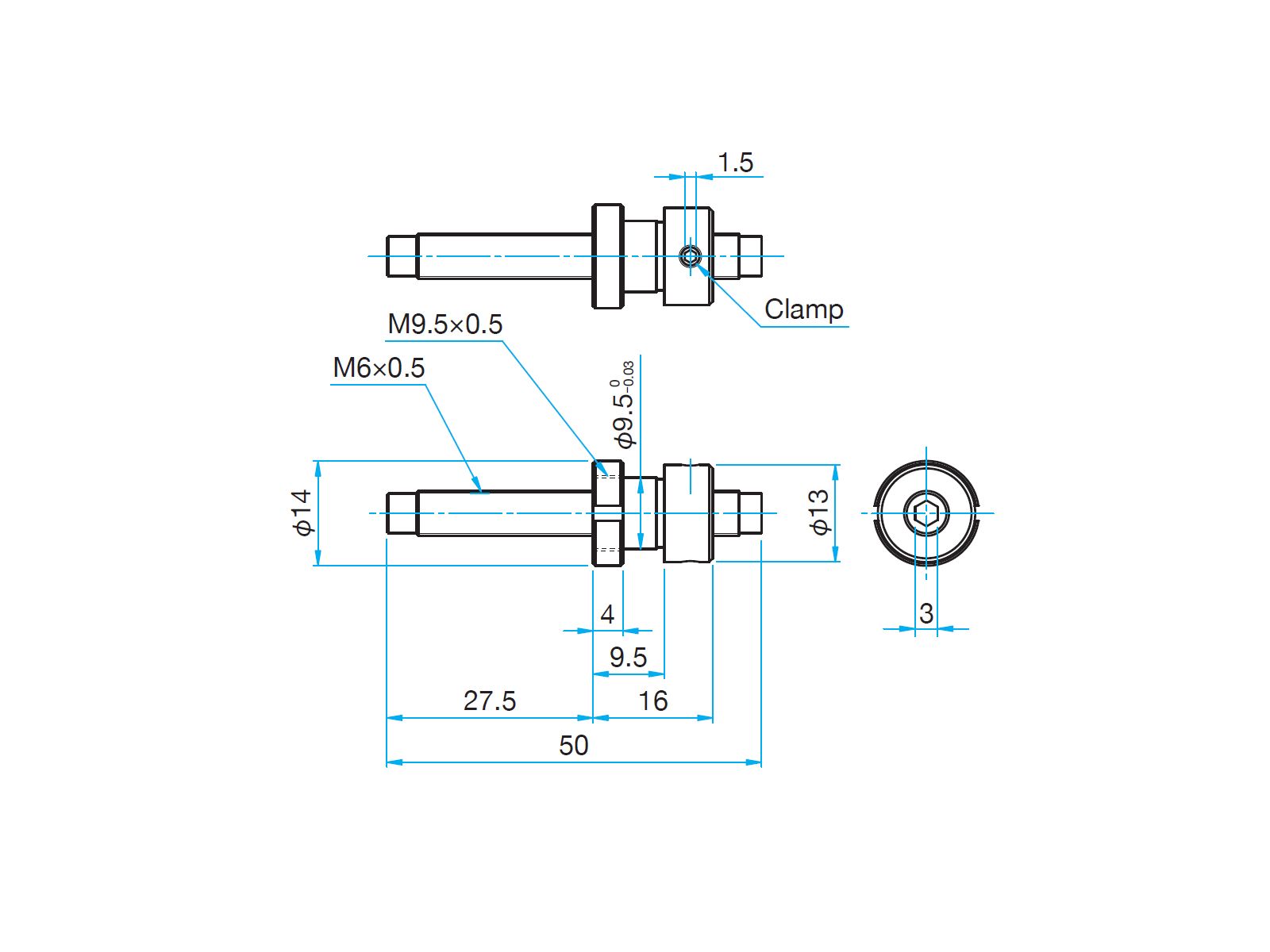

34mm Travel, Hex-Key Adjustment Screw, M6X0.50P Thd, Flat Carbide Tip, Locking, 9.5mm Shank
FPSAN-65050
50mm
6-12 weeks
$27.30
Screw M6
Pitch 0.5mm
Length 50mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.5, or KCL-304
i

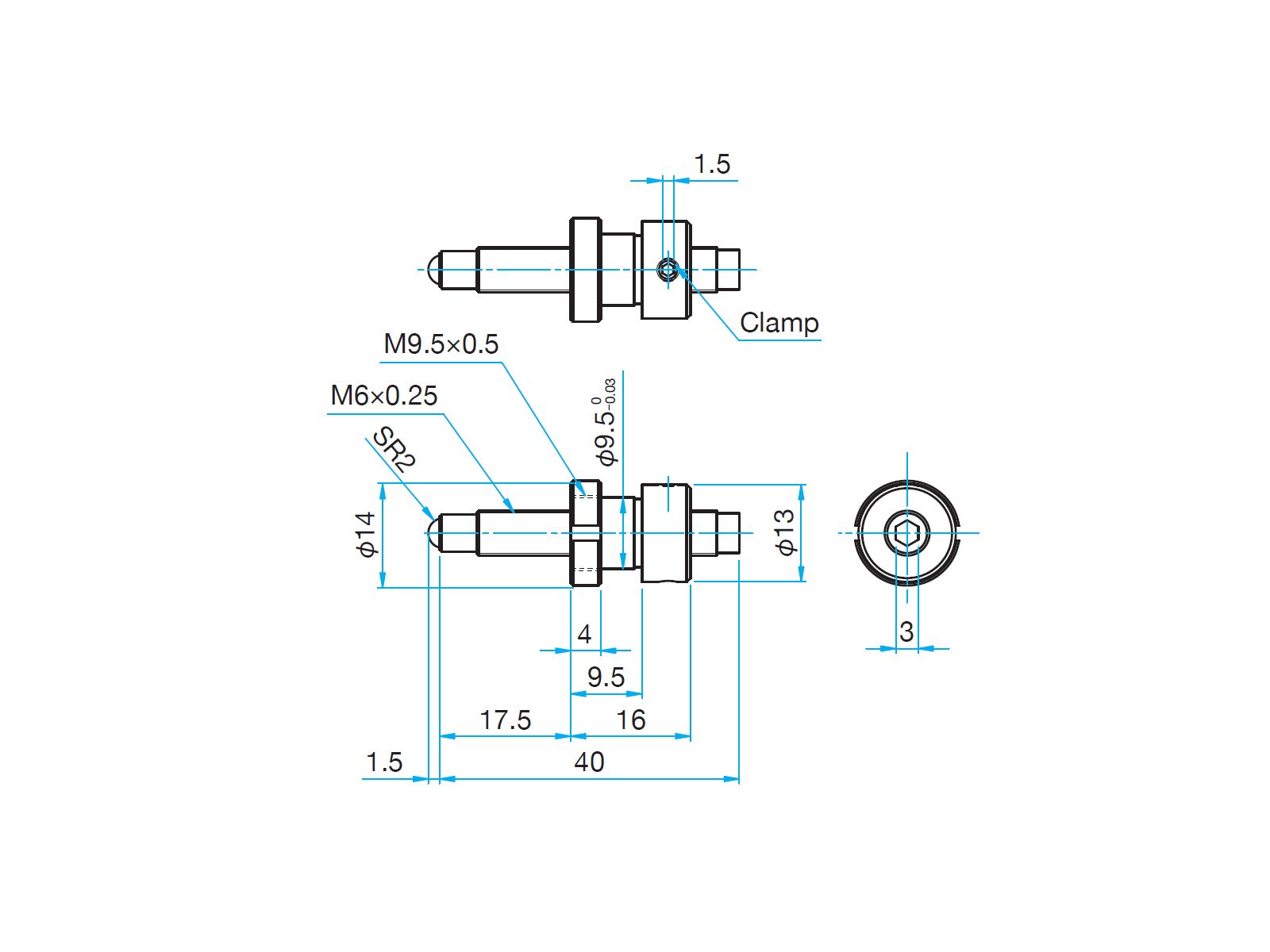

24mm Travel, Hex-Key Adjustment Screw, M6X0.25P Thd, Ball Tip, Locking, 9.5mm Shank
FPSAN-62540R
41.4mm
2 weeks
$27.30
Screw M6
Pitch 0.25mm
Length 41.4mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.25, or KCL-304
i

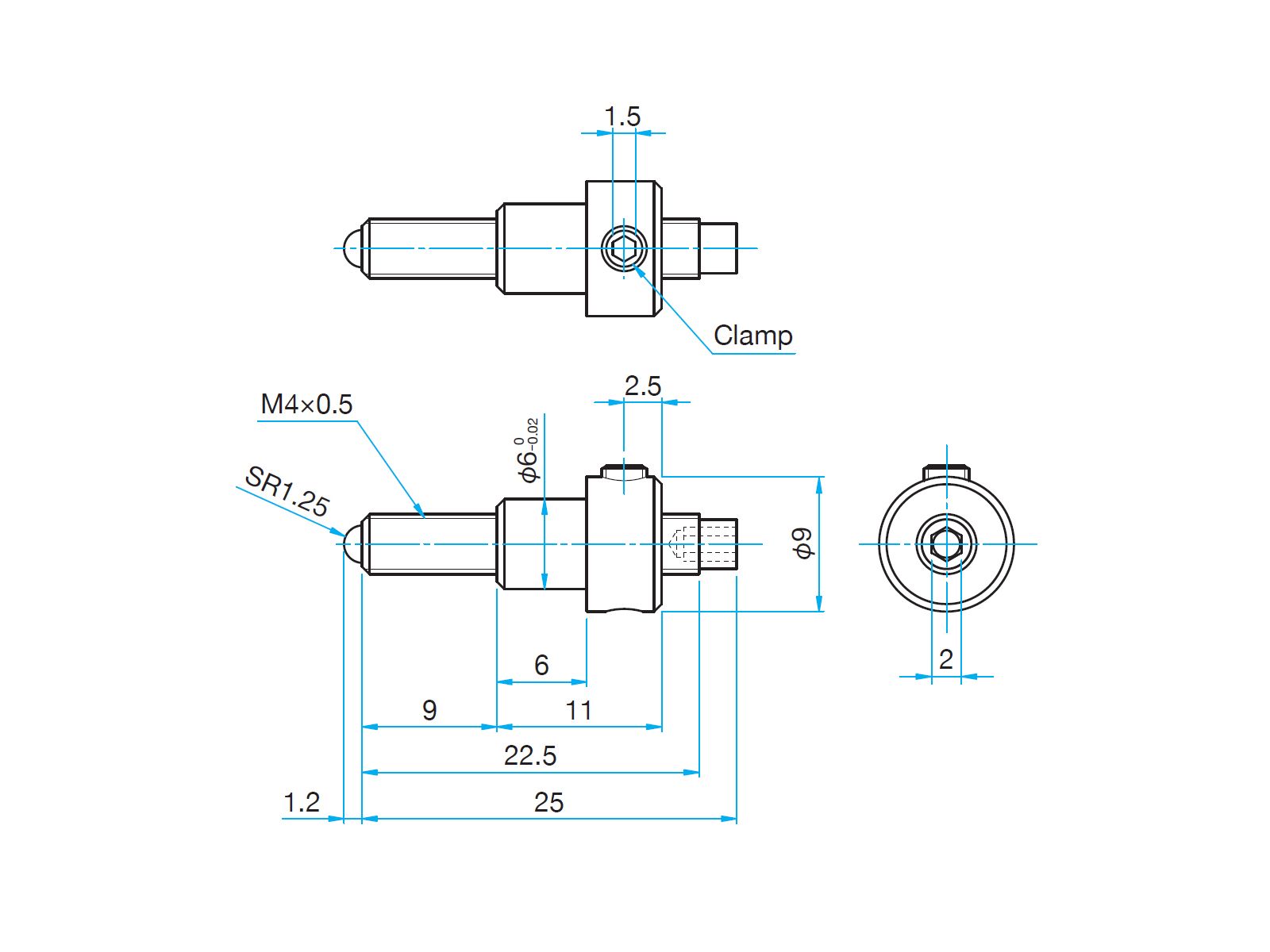

14mm Travel, Hex-Key Adjustment Screw, M4X0.50P Thd, Ball Tip, Locking, 6mm Shank
FPSAN-45025R
26.2mm
2 weeks
$25.20
Screw M4
Pitch 0.5mm
Length 26.2mm
Bush Diameter 6mm
Bush Length 6mm
Load Capacity (Static load) 29.4N(3kgf)
Compatible Knobs FPSAN-M4-0.5, or KCL-203
i

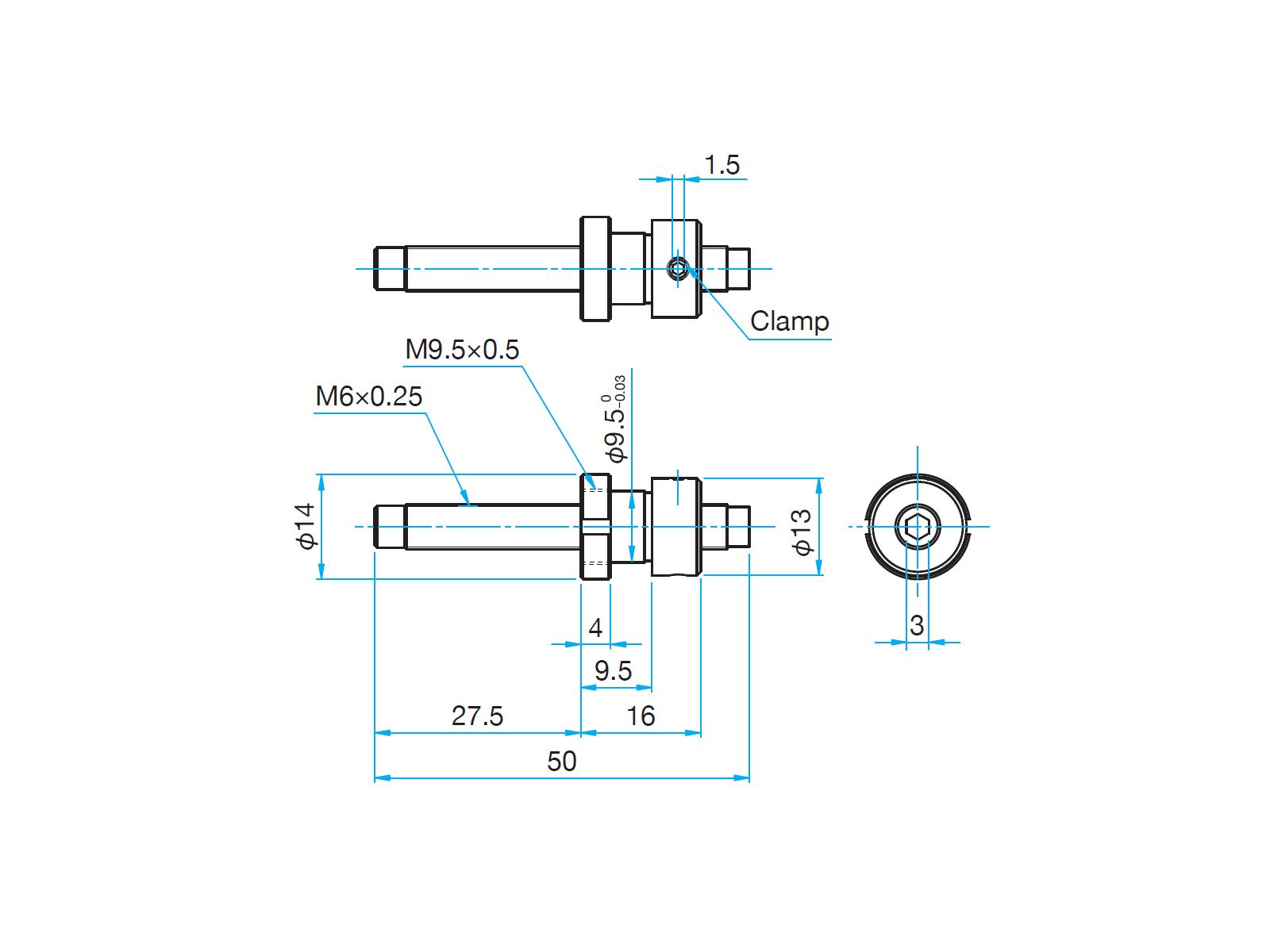

34mm Travel, Hex-Key Adjustment Screw, M6X0.25P Thd, Flat Carbide Tip, Locking, 9.5mm Shank
FPSAN-62550
50mm
2 weeks
$27.30
Screw M6
Pitch 0.25mm
Length 50mm
Bush Diameter 9.5mm
Bush Length 5.5mm
Load Capacity (Static load) 39.2N(4kgf)
Compatible Knobs FPSAN-M6-0.25, or KCL-304

You must be logged in to ask questions

The screw bushing can be locked with the clamp screw.
The flat-type tip is compatible with OptoSigma manual stages and holders.
The FPSAN-series knobs can be screwed to the hex-key end of the screw.
