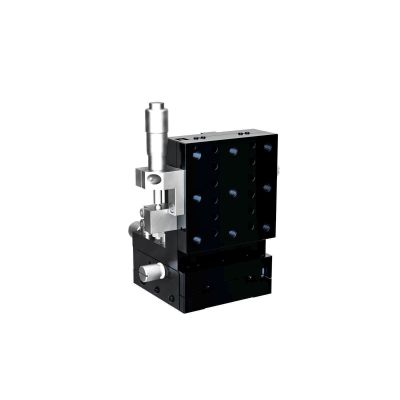

Aluminum Crossed Roller XZ Stage Center Drive Inch Threads
TAM-654CLUU
×
These XZ assemblies incorporate an (X) axis aluminum linear stage and a (Z) axis aluminum stage with an integrated vertical bracket.
Crossed roller guides enable smooth travel.
Crossed roller guides enable smooth travel.
| Name | Aluminum Crossed Roller XZ Stage Center Drive Inch Threads |
|---|---|
| Weight | 0.7000kgs |
| Guide |
|
| Attention | - |
| Image Label | Aluminum Crossed Roller X Stage Size Center Drive Inch Threads |
| Stage Size | 65×65mm |
| Travel | X axis±6.5mm Z axis±6.5mm |
| Load Capacity | 49N (5.0kg) |
| Micrometer Position | Center |
| Lead of Actuator | 0.5mm |
| Micrometer Readable Resolution | 0.01mm |
| Load Capacity | 49N(5.0kgf) |
In stock
SKU
TAM-654CLUU
$957.00
Customize product
These XZ assemblies incorporate an (X) axis aluminum linear stage and a (Z) axis aluminum stage with an integrated vertical bracket.
Crossed roller guides enable smooth travel.
Crossed roller guides enable smooth travel.
