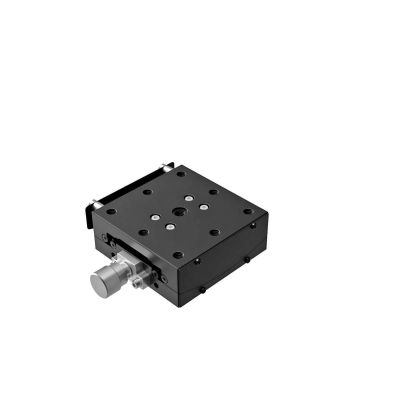

65X65mm Goniometer, EXC Bearings, 1-Axis, +/-15 deg, 75mm Axis Ht, Right-handed, Worm-gear, M6 Thd

GOHT-65A75BR-M6

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.

See the Left Handed version of this product

More Information
Name	65X65mm Goniometer, EXC Bearings, 1-Axis, +/-15 deg, 75mm Axis Ht, Right-handed, Worm-gear, M6 Thd
Weight	0.7500kgs
Guide	Attachment pins (GOHT-AP) can be purchased separately. (WEB Reference Catalog Code/W7112) Contact our Sales Division if you desire a rotation center height not listed in the catalog.
Attention	Locking mechanism is operated using thumbscrew on side of stage.
Image Label	Extended Contact Ball Slide Goniometers
Stage Size	65×65mm
Angle Range	±15°
Load Capacity	98N (10.0kg)
Rotation Center Height	75±0.1mm
Angle Range	±15°
Vernier Readable Resolution	0.1°
Travel per Knob Rotation	about 1.22°
Rotation Center Displacement	φ0.007mm or less

In stock

SKU

GOHT-65A75BR-M6

$1,175.00

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
