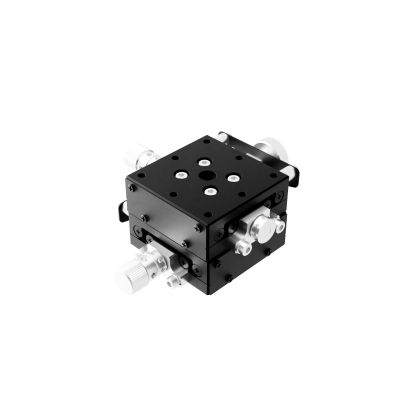

40X40mm Goniometer, EXC Bearings, 2-Axis, +/-8 deg, 60mm Axis Ht, Right-handed, Worm-gear, M3 Thd

GOHT-40B60BR

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.

See the Left Handed version of this product

More Information
Name	40X40mm Goniometer, EXC Bearings, 2-Axis, +/-8 deg, 60mm Axis Ht, Right-handed, Worm-gear, M3 Thd
Weight	0.4000kgs
Guide	Attachment pins (GOHT-AP) can be purchased separately. (WEB Reference Catalog Code/W7112) Contact our Sales Division for information about custom center heights. Motorized version (OSMS-40B***) also available. (WEB Reference Catalog Code/W9098) For the surface finishing, the white coating of electroless nickel plating is also available.
Attention	Locking mechanism is operated using thumbscrew on side of stage.
Image Label	αβ Axis Extended Contact Ball Slide Goniometers
Stage Size	40×40mm
Angle Range/(Upper) β axis	±8°
Load Capacity	58.8N (6.0kg)
Rotation Center Height	60±0.2mm
Angle Range/(Upper) β axis	±8°
Angle Range/(Lower) α axis	±6°
Vernier Readable Resolution	0.1°
Travel per Knob Rotation/(Upper) β axis	about 1.08°
Travel per Knob Rotation/(Lower) α axis	about 0.89°
Rotation Center Displacement	φ0.007mm or less

In stock

SKU

GOHT-40B60BR

$2,135.00

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
