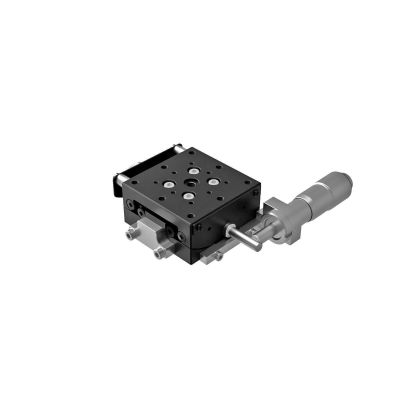

40X40mm Goniometer, EXC Bearings, 1-Axis, +/-11 deg, 20mm Axis Ht, Micrometer, 6-32 Thd

GOHT-40A20BMSUU

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.

See the Right Handed version of this product

More Information
Name	40X40mm Goniometer, EXC Bearings, 1-Axis, +/-11 deg, 20mm Axis Ht, Micrometer, 6-32 Thd
Weight	0.2000kgs
Guide	Attachment pins (GOHT-AP) can be purchased separately. (WEB Reference Catalog Code/W7112) Contact our sales team for information about custom center heights. Motorized extended guide goniometers (OSMS-40A＊＊＊) with stepping motor are also available. (WEB Reference Catalog Code/W9079)
Attention	Locking mechanism is operated using thumbscrew on side of stage. When assembled to an αβ axis stage, the micrometer head of the α axis stage interferes. Please contact our Sales Division for more information.
Image Label	Extended Contact Micrometer Goniometers
Stage Size	40×40mm
Angle Range	±11°
Load Capacity	58.8N (6.0kg)
Rotation Center Height	20±0.1mm
Angle Range	±11°
Travel per Knob Rotation	about 0.9°
Rotation Center Displacement	φ0.007mm or less

In stock

SKU

GOHT-40A20BMSUU

$1,067.00

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
