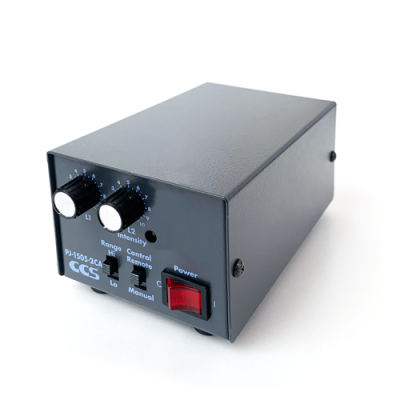

Controller for HLV3-series LED Spot Illumination Sources, 2 Channel
PJ-1505-2CA
Power supply for LED spot illumination.
Slim and palm-size, and can be mounted on a DIN rail by an adapter. Remote control also available.
Easy connection to the spot light and brightness control. Adapter available for connection to DIN rail.
LED ON/OFF and brightness control are possible by PC with USB interface.Flash function is available with external trigger input.
| Name | Controller for HLV3-series LED Spot Illumination Sources, 2 Channel |
|---|---|
| Weight | 0.6400kgs |
| Attention | - |
| Part Name | Power Supply for HLV3-series LED Spot Illumination Sources |
| Input Voltage | 100-240 VAC |
| Dimensions | W 86 mm x D 132 mm x H 62 mm |
| Number of channels | 2 channels |
| Lighting method | Continuous lighting |
| Drive method | Constant-current system |
| Intensity control method | Variable-current control |
| Power consumption | 27 VA typ. |
| Output voltage | 5.5 VDC (max. rating) |
| Intensity control | Manual: Intensity control on front of unit External: Analog input voltage of 0 to 5 V (5.25 V max.) |
| Over current protection | Operates at 105% (min.) of the rating current of the Spot Light and turns the output OFF. |
| Material | Steel plate t1.0 |
| Operating temperature and humidity | Temperature: 0 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| Cooling method | Natural air cooling |
| Output connector | SMP-03V-BC [1: Sense/2: Output(+)/3: Output(-)] x 2 |
| External control connector | 15-pin D-sub plug with M2.6 mm screws |
| Weight | 640 g max. |
| Accessories | AC cord with ground wire (2 m), Instruction Guide |
| Conformed standards | CE, UKCA, RoHS |
| Notes | Applicable Light Unit: HLV3 / HLV2 Series |
In stock
SKU
PJ-1505-2CA
$463.00
Customize product
Power supply for LED spot illumination.
Slim and palm-size, and can be mounted on a DIN rail by an adapter. Remote control also available.
