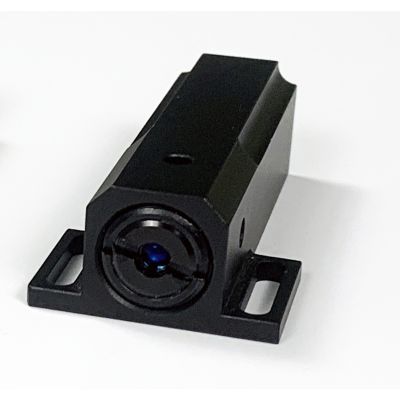

905nm Diode Laser, Square Body, Elliptical Beam, Output Power: 200mW
LDUS-905-200E-SQ
LDUS-SQ continuous-wave laser diode modules are designed for Research, and OEM applications needing high beam quality, and compact size. LDUS-SQ laser modules have a slotted mounting base and are exceptionally easy to use due to their standard USB interface. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDUS-SQ is powered and controlled through a USB interface. Connecting via USB Micro Type B, the LDUS-SQ will work with modern USB 2.0 connections (or later standards). USB 1.0 will provide enough power for most LDUS-SQ lasers, however, the green, blue and violet lasers need a USB 2.0 connection. All models offer stable adjustable output power which can be operated through a downloadable graphical user interface.
◦ Easy-to-Use USB Interface for Power and Control
◦ User-focusable beam collimated by glass (not Plastic) aspheric lens
◦ Exceptionally compact envelope dimensions
◦ User-focusable beam collimated by glass (not Plastic) aspheric lens
◦ Exceptionally compact envelope dimensions
| Name | 905nm Diode Laser, Square Body, Elliptical Beam, Output Power: 200mW |
|---|---|
| Weight | 0.2500kgs |
| Standard Coatings Available | No |
| Attention | Power & Control Interface - USB 1.x or 2.x Micro Type B |
| Wavelength Range | 905nm |
| Wavelength | 905nm |
| Power | 200mW |
| Laser Spot Dimensions at Exit (1/e2) | 1.77x3.55mm |
| Body Style | Square |
| USB Power | USB 1.x or 2.x |
| CDRH Laser Safety Classification | 3b |
| Beam Alignment to Body | <5 Deg. |
| Operating Voltage | 5VDC |
| Beam Focus | Set at 5Ft. User Adjuatable |
| Contents of Box | Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer |
In stock
SKU
LDUS-905-200E-SQ
$2,041.00
Customize product
LDUS-SQ continuous-wave laser diode modules are designed for Research, and OEM applications needing high beam quality, and compact size. LDUS-SQ laser modules have a slotted mounting base and are exceptionally easy to use due to their standard USB interface. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDUS-SQ is powered and controlled through a USB interface. Connecting via USB Micro Type B, the LDUS-SQ will work with modern USB 2.0 connections (or later standards). USB 1.0 will provide enough power for most LDUS-SQ lasers, however, the green, blue and violet lasers need a USB 2.0 connection. All models offer stable adjustable output power which can be operated through a downloadable graphical user interface.
