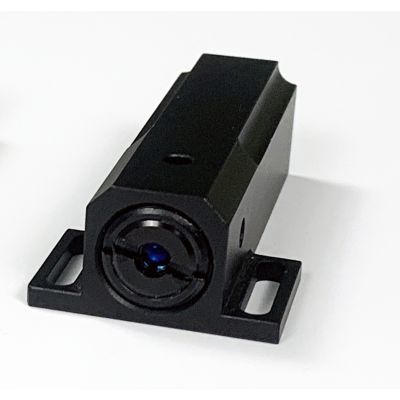

658nm Diode Laser, Square Body, Round Beam, Output Power: 40mW

LDUS-658-40R-SQ

Skip to the beginning of the images gallery

LDUS-SQ continuous-wave laser diode modules are designed for Research, and OEM applications needing high beam quality, and compact size. LDUS-SQ laser modules have a slotted mounting base and are exceptionally easy to use due to their standard USB interface. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDUS-SQ is powered and controlled through a USB interface. Connecting via USB Micro Type B, the LDUS-SQ will work with modern USB 2.0 connections (or later standards). USB 1.0 will provide enough power for most LDUS-SQ lasers, however, the green, blue and violet lasers need a USB 2.0 connection. All models offer stable adjustable output power which can be operated through a downloadable graphical user interface.

Details

◦ Easy-to-Use USB Interface for Power and Control
◦ User-focusable beam collimated by glass (not Plastic) aspheric lens
◦ Exceptionally compact envelope dimensions

More Information

More Information
Name	658nm Diode Laser, Square Body, Round Beam, Output Power: 40mW
Weight	0.2500kgs
Standard Coatings Available	No
Attention	Power & Control Interface - USB 1.x or 2.x Micro Type B
Wavelength Range	658nm
Wavelength	658nm
Power	40mW
Laser Spot Dimensions at Exit (1/e2)	1.29x1.29mm
Body Style	Square
USB Power	USB 1.x or 2.x
CDRH Laser Safety Classification	3b
Beam Alignment to Body	<5 Deg.
Operating Voltage	5VDC
Beam Focus	Set at 5Ft. User Adjuatable
Contents of Box	Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer

In stock

SKU

LDUS-658-40R-SQ

$1,880.00
