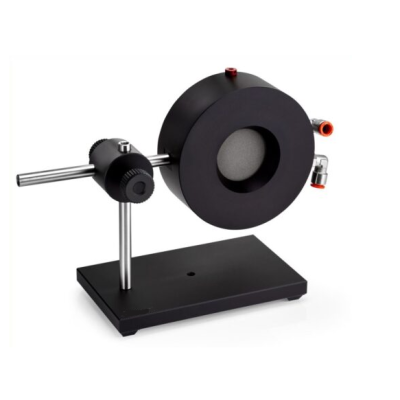

6000W Broadband Thermal Sensor, 55-mm Sensor Aperture, used with PEM-TS-4.3 Stand-alone Controller
PM6000-55D-SH
The Opto Sigma PM6000-55D-SH is a thermopile sensor designed for measuring power and energy of laser or light sources. It can read power levels up to 6000W with 1W resolution. The PM6000-55D-SH operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
-
| Name | 6000W Broadband Thermal Sensor, 55-mm Sensor Aperture, used with PEM-TS-4.3 Stand-alone Controller |
|---|---|
| Weight | 4.2000kgs |
| Guide | - |
| Attention | - |
| Cooling | Forced Air |
| Max Intermitent Power | 9000W |
| Power Resolution | 1W |
| Noise Equivalent Power (NEP) | 500mW |
| Response Time (0-90%) | 3.5s |
| Power Calibration Uncertainty | +/-5% |
| Power Linearity | +/-2% |
| Type of Absorber | SHC |
| Maximum Power Density | 4000W/cm2 at 5000W |
| Max Energy Density | 5ms pulse width: 115 J/cm2, <10us pulse width: 4 J/cm2, 10ns pulse width: 1 J/cm2 |
| Interface | DB15 |
In stock
SKU
PM6000-55D-SH
$3,686.00
Customize product
The Opto Sigma PM6000-55D-SH is a thermopile sensor designed for measuring power and energy of laser or light sources. It can read power levels up to 6000W with 1W resolution. The PM6000-55D-SH operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
