0.2W Broadband Thermal Sensor, 1 - 200 mJ, 10-mm Sensor Aperture, used with PEM-TS-4.3 Stand-alone Controller
PM02-12D-BB

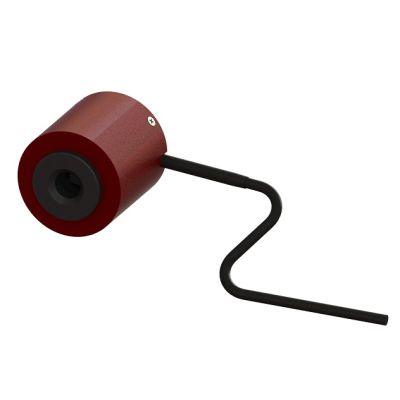

The Opto Sigma PM02-12D-BB is a thermopile sensor designed for measuring the power and energy of laser or light sources. It can read power levels up to 0.2W with a 10uW resolution. The PM02-12D-BB has a DB15 connector and is designed to be used with a PLUS2 Stand-alone controller.
◦Complete meter less model is very small and performs measurement and analysis with PC.
◦Display connecting model can be used with a lightweight touch screen display in a narrow environment where a PC cannot be installed.
◦Display connecting model can be used with a lightweight touch screen display in a narrow environment where a PC cannot be installed.
| Name | 0.2W Broadband Thermal Sensor, 1 - 200 mJ, 10-mm Sensor Aperture, used with PEM-TS-4.3 Stand-alone Controller |
|---|---|
| Weight | 0.2000kgs |
| Guide | - |
| Attention | - |
| Energy Range | 1 mJ - 200 mJ |
| Power Range | 0.1 mW - 200 mW |
| Wavelength Range | 0.19 - 25µm |
| Aperture | 10mm |
| Cooling | Convection |
| Max Intermittent Power | 200mW |
| Power Resolution | 10uW |
| Noise Equivalent Power (NEP) | 5uW |
| Response Time (0-90%) | 2s |
| Power Calibration Uncertainty | +/-3% |
| Power Linearity | +/-1% |
| Energy Resolution | 10uJ |
| Energy Calibration Uncertainty | +/-5% |
| Type of Absorber | HPB |
| Maximum Power Density | 200W/cm2 |
| Max Energy Density | 5ms pulse width: 3.6 J/cm2, 10us pulse width: 0.2 J/cm2, 10ns pulse width: 0.1 J/cm2 |
| Interface | DB15 Conector, Compatible with PEM-TS-4.3 Controller |
In stock
SKU
PM02-12D-BB
$804.30
Customize product
The Opto Sigma PM02-12D-BB is a thermopile sensor designed for measuring the power and energy of laser or light sources. It can read power levels up to 0.2W with a 10uW resolution. The PM02-12D-BB has a DB15 connector and is designed to be used with a PLUS2 Stand-alone controller.
