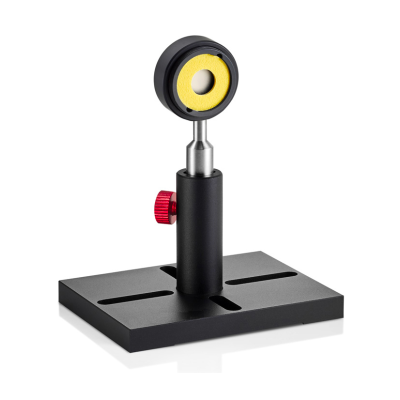

40mW IR Photodiode Sensor, 9.5-mm Sensor Aperture, used with PC thru USB Connection
PMP50-IR-9.5D-USB
The Opto Sigma PMP50-IR-9.5D-USB is a photodiode sensor designed for measuring power of laser or light sources in the near IR range. It can read power levels up to 40 mW with 1uW resolution. The PMP50-IR-9.5D-USB operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
-
| Name | 40mW IR Photodiode Sensor, 9.5-mm Sensor Aperture, used with PC thru USB Connection |
|---|---|
| Weight | 0.1000kgs |
| Guide | - |
| Attention | - |
| Cooling | Convection |
| Power Resolution | 0.001mW |
| Noise Equivalent Power (NEP) | 0.1mW |
| Response Time (0-90%) | 0.25s |
| Power Calibration Uncertainty | +/-7% at 800-1000nm, +/-3% at 1000-1650nm, +/-5% at 1650-1800nm |
| Power Linearity | +/-1.5% |
| Maximum Power Density | 10W/cm2 |
| Detector Type | Germanium |
| Interface | USB |
In stock
SKU
PMP50-IR-9.5D-USB
$1,859.00
Customize product
The Opto Sigma PMP50-IR-9.5D-USB is a photodiode sensor designed for measuring power of laser or light sources in the near IR range. It can read power levels up to 40 mW with 1uW resolution. The PMP50-IR-9.5D-USB operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
