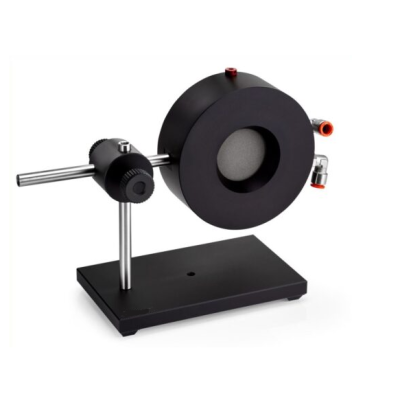

1200W Broadband Thermal Sensor, 5 - 1500 J, 60-mm Sensor Aperture, used with PC thru USB Connection
PM1200-60D-SH-USB
The Opto Sigma PM1200-60D-SH-USB is a thermopile sensor designed for measuring power and energy of laser or light sources. It can read power levels up to 1200W with 100uW resolution. The PM1200-60D-SH-USB operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
-
| Name | 1200W Broadband Thermal Sensor, 5 - 1500 J, 60-mm Sensor Aperture, used with PC thru USB Connection |
|---|---|
| Weight | 4.4000kgs |
| Guide | - |
| Attention | - |
| Cooling | Forced Air |
| Max Intermitent Power | TBD |
| Power Resolution | 100mW |
| Noise Equivalent Power (NEP) | 100mW |
| Response Time (0-90%) | 6s |
| Power Calibration Uncertainty | +/-3% |
| Power Linearity | +/-1.5% |
| Energy Resolution | 100mJ |
| Energy Calibration Uncertainty | +/-5% |
| Type of Absorber | SHC |
| Maximum Power Density | 5000W/cm2 at 1000W |
| Max Energy Density | 5ms pulse width: 115 J/cm2, <10us pulse width: 4 J/cm2, 10ns pulse width: 1 J/cm2 |
| Interface | USB |
In stock
SKU
PM1200-60D-SH-USB
$4,717.00
Customize product
The Opto Sigma PM1200-60D-SH-USB is a thermopile sensor designed for measuring power and energy of laser or light sources. It can read power levels up to 1200W with 100uW resolution. The PM1200-60D-SH-USB operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
