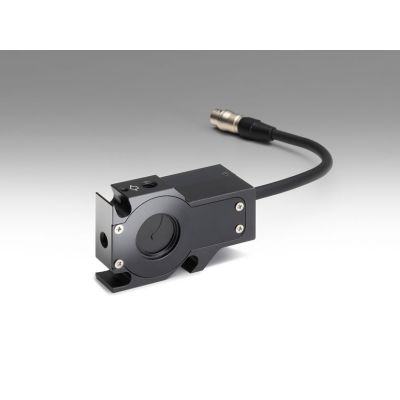

C30 Optical Cage Compatible Automatic Aluminum Blade Shutters, 17mm Aperture

C30-SSH-17RA

Skip to the beginning of the images gallery

Mechanical electromagnetic shutter to turn on and off the laser or to emit for a certain period of time remotely.
Please use with designated controller and cable.

Details

◦In addition to assemble with a post, SSH-RA can be assembled with cage system. It is small and space-saving and faster opening/closing than the conventional products.
◦It can be operated with an external trigger or PC via the shutter controller SSH-C2B-A.

More Information

More Information
Name	C30 Optical Cage Compatible Automatic Aluminum Blade Shutters, 17mm Aperture
Weight	0.0900kgs
Guide	Please use SSH-C2B-A as a controller. WEB Reference Catalog Code/W4105 Please use SSH-CA2-LORA(cable length 2m) and SSH-CA2-LOAB(extension cable, cable length 2m) as a cable.
Attention	The blade type automatic shutter cannot be used with high-power lasers or high-energy pulse lasers. Please use high power laser shutter unit. WEB Reference Catalog Code/W4110 The controller SSH-CRA cannot be used with SSH-RA. The opening/closing speed is 10% -90% of the aperture as a standard value and is not guaranteed. Lifetime is a reference value and not guaranteed. Please refer for the setting of the 2 axis shutter controller SSH-C2B before ver1.00,003 in user setting.
Aperture Diameter	17mm
Applicable size of cage	C30
Opening speed (low/high)	6ms/ 3ms
Closing speed (low/high)	6ms/ 4ms
Controller setting (low/high)	SSH17-L/ SSH17-H
Lifetime (low/high) reference value	1 million times/ 100 thousand times

In stock

SKU

C30-SSH-17RA

$618.00

Mechanical electromagnetic shutter to turn on and off the laser or to emit for a certain period of time remotely.
Please use with designated controller and cable.

C30 Optical Cage Compatible Automatic Aluminum Blade Shutters, 17mm Aperture

Resources & Downloads
