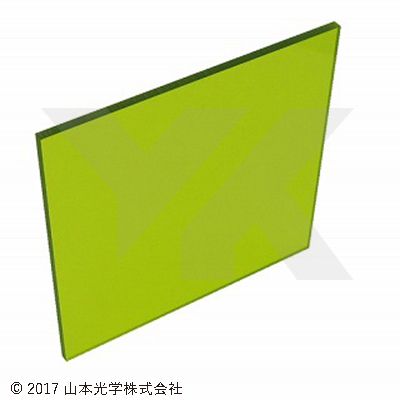

Laser Safety Windows (Acrylic Resin)

YL-500P-Fiber(16)

Skip to the beginning of the images gallery

Protect eyes from accidental exposure to scattered lasers. Appropriate for use in enclosures or laser machine windows.

◦Designed for safety and adjustments.
◦High optical density blocks lasers.
◦Can be applied to partial windows, inset windows or partitions in laser controlled areas.
◦Effective safety measure to prevent potential injuries from unexpected visitors.

More Information

More Information
Name	Laser Safety Windows (Acrylic Resin)
Weight	0.6500kgs
Standard Coatings Available	No
Guide	Contact us for custom sizes or shapes. Replace laser safety windows periodically.
Attention	Do not use with incompatible lasers or wavelengths (even if laser are same, wavelengths can be different). Do not use if damaged or has already been exposed to laser energy. Do not irradiate the laser beam directly at laser safety windows because it may damage them. Do not directly look into the laser beam through laser safety windows.
Length	400×400mm
Wavelength Range	930 - 1170nm<br>1060 - 1130nm
Compatible Laser	NIR
Wavelength	930 - 1170nm 1060 - 1130nm
Optical Density	5＜ 7＜
Color	Green
Visible Light Transmittance	40%
Length	400×400mm
Thickness t	3.5mm

In stock

SKU

YL-500P-Fiber(16)

$1,029.18

Protect eyes from accidental exposure to scattered lasers. Appropriate for use in enclosures or laser machine windows.
