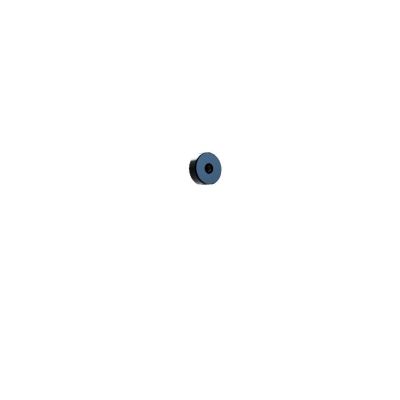

Fixed Lens Holder with 8-32UNC Threads for 10mm Diameter Optic

LHF-10-UU

3d-simple-product
It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.



More Information
Name Fixed Lens Holder with 8-32UNC Threads for 10mm Diameter Optic
Weight 0.0200kgs
Guide
  • Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information.
  • Thin frame lens holders (LHF-S).
  • WEB Reference Catalog Code/W4515
  • Lens holder with rotation center adjustment (LHCM) is also available.
  • WEB Reference Catalog Code/W4512-2
Attention -
Image Label Fixed Lens Holder with 8-32UNC Threads for 10mm Diameter Optic
Diameter 10mm
Mounting Thread 8-32UNC
Compatible Optics Diameter φA φ10mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ7mm
C M10.85 P0.75
Optical Axis Height D 15mm
E 4mm
φG φ32mm
F 12mm
In stock
SKU
LHF-10-UU
$29.42

Delivery in : 6-12 weeks

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.
