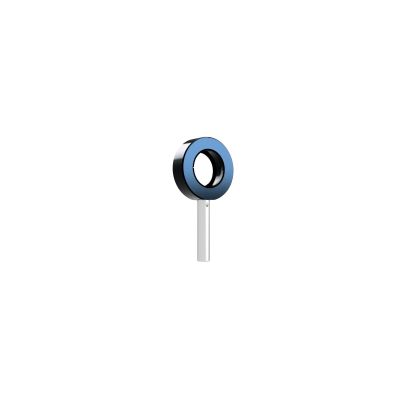

Fixed Lens Holder

LHF-38.1

Skip to the beginning of the images gallery

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.

Details

◦For large diameter lenses over 80mm, “A type” holders are available for thick lenses .

More Information

More Information
Name	Fixed Lens Holder
Weight	0.3000kgs
Guide	Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information. Thin frame lens holders (LHF-S). WEB Reference Catalog Code/W4515 Lens holder with rotation center adjustment (LHCM) is also available. WEB Reference Catalog Code/W4512-2
Attention	-
Compatible Optics Diameter φA	φ38.1mm
Compatible Optics ThicHness	3 - 12mm
Clear Aperture φB	φ34mm
C	M38.95 P0.75
Optical Axis Height D	30mm
E	7mm
φG	φ62mm
F	18mm
φH	φ12mm
L	M6

In stock

SKU

LHF-38.1

$43.00

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.

Fixed Lens Holder
