Drivers

Drivers

Drivers
In stock
SKU
Drivers

Starting at $132.60

Drivers List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Delivery Price Add to cart
i
Compact Micro-step Driver CE Marked
MC-S0514ZU
2 weeks
$265.20
Part Name Compact Micro-step Driver
Driving Motor 5-phase stepping motor
Drive System Bipolar constant current pentagon drive
Driving Current 0.35 − 1.4A/phase
Excitation System Micro-step
Number of Divisions 1~250 16types(2 series) : 1,2,4,5,8,10,16,20,25,40,50,80,100,125,200,250
1~240 16types(3 series) : 1,2,3,6,12,18,24,32,36,48,60,72,120,160,180,240
Input Signal 1 clock input method
2 clock input method
Input Logic Photocoupler input
Max. Response Frequency 500kpps
Auto Current Down OFF Input None
Motor Excitation OFF Input Equipped
Micro-step Selection Input Switching by the number of division setting switch
Origin Excitation Timing Output Equipped
Input Voltage DC24V±5% 3A
Operating Temperature Range 0 − 40°C
External Dimensions (W)99×(H)28×(D)47mm
i
Compact Driver High Current CE Marked
MC-5M
2 weeks
$153.00
Product Name Compact Driver
Driving Motor 5-phase stepping motor
Drive System Bipolar constant current pentagon drive
Driving Current 0.5 − 1.4A/phase
Excitation System Full / Half step
Number of Divisions Two types (1, 2)
Input Signal 1 clock input method
2 clock input method
Input Logic Photocoupler input
Max. Response Frequency 50kpps
Auto Current Down OFF Input None
Motor Excitation OFF Input Equipped
Micro-step Selection Input None
Origin Excitation Timing Output None
Input Voltage DC20 - 40V
3A Max
Operating Temperature Range 0 − 40°C
External Dimensions (W)77×(H)32×(D)45mm
i
Compact Driver Low Current
SG-5MA
2 weeks
$132.60
Part Name Compact Driver
Driving Motor 5-phase stepping motor
Drive System Bipolar constant current pentagon drive
Driving Current 0.25 − 0.85A/phase
Excitation System Full / Half step
Number of Divisions Two types (1, 2)
Input Signal 1 clock input method
2 clock input method
Input Logic Photocoupler input
Max. Response Frequency 50kpps
Auto Current Down OFF Input None
Motor Excitation OFF Input Equipped
Micro-step Selection Input None
Origin Excitation Timing Output None
Input Voltage DC20 - 40V
1.5A Max
Operating Temperature Range 0 − 40°C
External Dimensions (W)77×(H)32×(D)45mm
i
Micro-step Driver CMOS Input
SG-514MSC
2 weeks
$224.40
Part Name Micro-step Driver
Driving Motor 5-phase stepping motor
Drive System Bipolar constant current pentagon drive
Driving Current 0.3 − 1.4A/phase
Excitation System Micro-step
Number of Divisions 16 types (1, 2, 2.5, 5, 8, 10, 20, 25, 40, 50, 80, 100, 125, 200, 250)
Input Signal 2 clock input method
Input Logic C-MOS equivalent negative logic input
Max. Response Frequency 500kpps
Auto Current Down OFF Input None
Motor Excitation OFF Input Equipped
Micro-step Selection Input 4 bit signal input
Origin Excitation Timing Output Equipped
Input Voltage For motor drive : DC24 − 36V ±10%
2A or lower
For logic : DC5V ±5% 0.1A or lower
Operating Temperature Range 0 − 40°C
External Dimensions (W)91×(H)36×(D)70mm
i
Compact Driver High Current
SG-5M
2 weeks
$132.60
Part Name Compact Driver
Driving Motor 5-phase stepping motor
Drive System Bipolar constant current pentagon drive
Driving Current 0.5 − 1.4A/phase
Excitation System Micro-step
Number of Divisions Two types (1, 2)
Input Signal 1 clock input method
2 clock input method
Input Logic Photocoupler input
Max. Response Frequency 50kpps
Auto Current Down OFF Input None
Motor Excitation OFF Input Equipped
Micro-step Selection Input None
Origin Excitation Timing Output None
Input Voltage DC20 - 40V
3A Max
Operating Temperature Range 0 − 40°C
External Dimensions (W)77×(H)32×(D)45mm
i

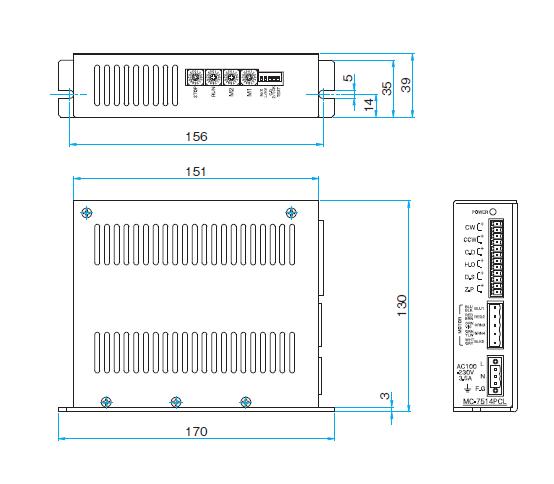

Micro-step Driver AC Power
MC-7514PCL
2 weeks
$591.60
Product Name Micro-step Driver
Driving Motor 5-phase stepping motor
Drive System Bipolar constant current pentagon drive
Driving Current 0.5 − 1.4A/phase
Excitation System Micro-step
Number of Divisions 16 types (1, 2, 4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250)
Input Signal 1 clock input method
2 clock input method
Input Logic Photocoupler input
Max. Response Frequency 500kpps
Auto Current Down OFF Input Equipped
Motor Excitation OFF Input Equipped
Micro-step Selection Input Switching by the number of division setting switch
Origin Excitation Timing Output Equipped
Input Voltage AC100 - 230V 50/60Hz 3.5A
Operating Temperature Range 0 − 40°C
External Dimensions (W)39×(H)130×(D)170mm
