Dielectric Mirrors for High Power Yb Laser

TFMHPQ

Dielectric Mirrors for High Power Yb Laser
In stock
SKU
TFMHPQ
Mirrors for use in optical system of Yb pulsed laser with large energy.
All dielectric coating designs are much more resistant to laser damage than typical mirrors and are suitable for use with high power laser systems.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Design wavelength Diameter φD Reflectance Delivery Price Add to cart
i
Dielectric Mirrors for High Power Yb Laser φ 25.4 mm λ 257 nm
TFMHPQ-25.4C05-257
257nm 25.4mm >98%
6-12 weeks
$425.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 257nm

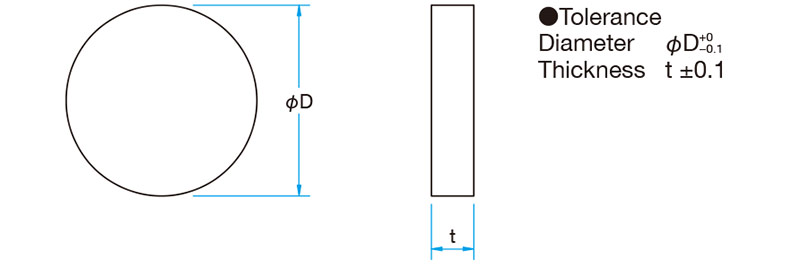

Diameter φD φ25.4mm
Thickness t 5mm
Reflectance >98%
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 50.8 mm λ 257 nm
TFMHPQ-50.8C08-257
257nm 50.8mm >98%
6-12 weeks
$652.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 257nm
Diameter φD φ50.8mm
Thickness t 8mm
Reflectance >98%
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laserφ 25.4 mm λ 343 nm
TFMHPQ-25.4C05-343
343nm 25.4mm >99%
2 weeks
$407.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 343nm
Diameter φD φ25.4mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 8J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser 50.8 mm λ 343 nm
TFMHPQ-50.8C08-343
343nm 50.8mm >99%
6-12 weeks
$634.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 343nm
Diameter φD φ50.8mm
Thickness t 8mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 8J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 25.4 mm λ 515 nm
TFMHPQ-25.4C05-515
515nm 25.4mm >99%
2 weeks
$407.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 515nm
Diameter φD φ25.4mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 26J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 50.8 mm λ 515 nm
TFMHPQ-50.8C08-515
515nm 50.8mm >99%
6-12 weeks
$634.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 515nm
Diameter φD φ50.8mm
Thickness t 8mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 26J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 25.4 mm λ 1030 nm
TFMHPQ-25.4C05-1030
1030nm 25.4mm >99%
2 weeks
$386.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 1030nm
Diameter φD φ25.4mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 28J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 50.8 mm λ 1030 nm
TFMHPQ-50.8C08-1030
1030nm 50.8mm >99%
2 weeks
$612.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 1030nm
Diameter φD φ50.8mm
Thickness t 8mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 28J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ12.7 mm λ 257 nm
TFMHPQ-12.7C03-257
257nm 12.7mm >98%
6-12 weeks
$320.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 257nm
Diameter φD φ12.7mm
Thickness t 3mm
Reflectance >98%
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 30 mm λ 257 nm
TFMHPQ-30C05-257
257nm 30mm >98%
2 weeks
$444.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 257nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance >98%
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 12.7 mm λ 343 nm
TFMHPQ-12.7C03-343
343nm 12.7mm >99%
6-12 weeks
$299.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 343nm
Diameter φD φ12.7mm
Thickness t 3mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 8J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser 30 mm λ 343 nm
TFMHPQ-30C05-343
343nm 30mm >99%
6-12 weeks
$425.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 343nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 8J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ12.7 mm λ 515 nm
TFMHPQ-12.7C03-515
515nm 12.7mm >99%
6-12 weeks
$299.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 515nm
Diameter φD φ12.7mm
Thickness t 3mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 26J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 30 mm λ 515 nm
TFMHPQ-30C05-515
515nm 30mm >99%
6-12 weeks
$425.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 515nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 26J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ12.7 mm λ 1030 nm
TFMHPQ-12.7C03-1030
1030nm 12.7mm >99%
6-12 weeks
$278.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 1030nm
Diameter φD φ12.7mm
Thickness t 3mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 28J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 30 mm λ 1030 nm
TFMHPQ-30C05-1030
1030nm 30mm >99%
2 weeks
$404.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 1030nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 28J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 25 mm λ 257 nm
TFMHPQ-25C05-257
257nm 25mm >98%
6-12 weeks
$425.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 257nm
Diameter φD φ25mm
Thickness t 5mm
Reflectance >98%
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 50 mm λ 257 nm
TFMHPQ-50C08-257
257nm 50mm >98%
6-12 weeks
$652.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 257nm
Diameter φD φ50mm
Thickness t 8mm
Reflectance >98%
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 25 mm λ 343 nm
TFMHPQ-25C05-343
343nm 25mm >99%
6-12 weeks
$407.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 343nm
Diameter φD φ25mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 8J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser 50 mm λ 343 nm
TFMHPQ-50C08-343
343nm 50mm >99%
6-12 weeks
$634.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 343nm
Diameter φD φ50mm
Thickness t 8mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 8J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 25 mm λ 515 nm
TFMHPQ-25C05-515
515nm 25mm >99%
6-12 weeks
$407.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 515nm
Diameter φD φ25mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 26J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 50 mm λ 515 nm
TFMHPQ-50C08-515
515nm 50mm >99%
6-12 weeks
$634.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 515nm
Diameter φD φ50mm
Thickness t 8mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 26J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 25 mm λ 1030 nm
TFMHPQ-25C05-1030
1030nm 25mm >99%
6-12 weeks
$386.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 1030nm
Diameter φD φ25mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 28J/cm2
Availability Please contact
i
Dielectric Mirrors for High Power Yb Laser φ 50 mm λ 1030 nm
TFMHPQ-50C08-1030
1030nm 50mm >99%
6-12 weeks
$612.00
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 1030nm
Diameter φD φ50mm
Thickness t 8mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 28J/cm2
Availability Please contact

You must be logged in to ask questions

- All Dielectric Mirrors for High Power Laser are manufactured using dielectric multi-layer coatings of alternating high and low index layers.
- The Mirrors are specifically designed for use at 45 degrees (AOI).
- All dielectric coating designs are much more resistant to laser damage than typical mirrors and are suitable for use with high power laser systems.
- Mirrors for YAG lasers are also available.

Click here to receive announcements and exclusive promotions

Remind me later

Thank you! Please check your email inbox to confirm.

Oops! Notifications are disabled.
