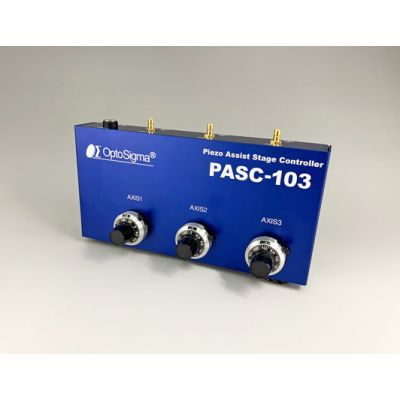

3 Axis Controller for Piezo Assist Stage

PASC-103

CE
Dedicated controller that drives the piezo assist stage series. Lineup includes 1-axis type and 3-axis type.
◦The fine adjustment mechanism of the piezo assist stage is operated by turning the dial knob.
More Information
Name 3 Axis Controller for Piezo Assist Stage
Weight 0.2800kgs
Attention ▶Applicable size of DC jack is dia.4mm. When preparing the power supply by the customer, pay attention to the plug diameter.
Number of Control Axes 3 axes
Power Voltage DC6V 1.8A
Compatible AC Adapter AC-ADP-0618/AC-ADP-0620
Operating temperature 5 - 40℃
Storage Temperature −20 − 60°C
Ambient Humidity 20 - 80%RH(without condensation)
Dimension Ø x L (Except projection) 160x80x25mm
DoE Level -
CCC -
Weight 0.28kg
In stock
SKU
PASC-103
$946.00

Delivery in : 2 weeks

Dedicated controller that drives the piezo assist stage series. Lineup includes 1-axis type and 3-axis type.
