Centering Unit 5mm x 5mm
CEUT-RT-5

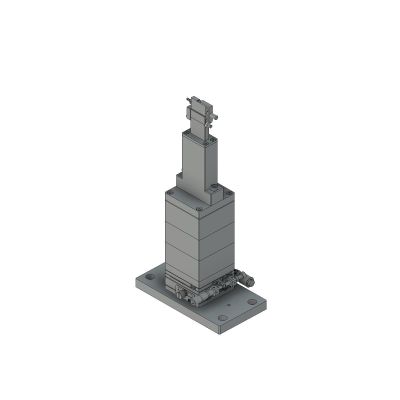

This unit is used to set or fix a sample such as waveguides.
Samples such as waveguides can be fixed by adsorption or mechanical clamping.
Two types of sample sizes are available: 5mm x 5mm and 10mm x 10mm.
The sample position and angle can be adjusted by 2-axis manual stage. We also have options available that have a temperature control for a sample or a contact sensor for a sample and a fiber array.You can select the most appropriat type for your application.
Two types of sample sizes are available: 5mm x 5mm and 10mm x 10mm.
The sample position and angle can be adjusted by 2-axis manual stage. We also have options available that have a temperature control for a sample or a contact sensor for a sample and a fiber array.You can select the most appropriat type for your application.
| Stage Part | ||
|---|---|---|
| Axis | X axis | θy axis |
| Component Products/Products Type | TADC-601SR | KSPT-606MRH |
| Travel | ±6.5mm | ±10° |
| Lead of Actuator | 0.5mm | - |
| Micrometer Readable Resolution | 0.01mm | - |
| Sample Holder Part | |
|---|---|
| Sample size *1 | 5mm×5mm |
| Load cell | Not Included |
| Temperature control unit | Not Included |
Out of stock
SKU
CEUT-RT-5
Customize product
This unit is used to set or fix a sample such as waveguides.
