Quick Delivery High-performance Vibration Isolation Systems - Stocked in USA
OSDVIO-I-USA-QUICK
In stock
SKU
OSDVIO-I-USA-QUICK

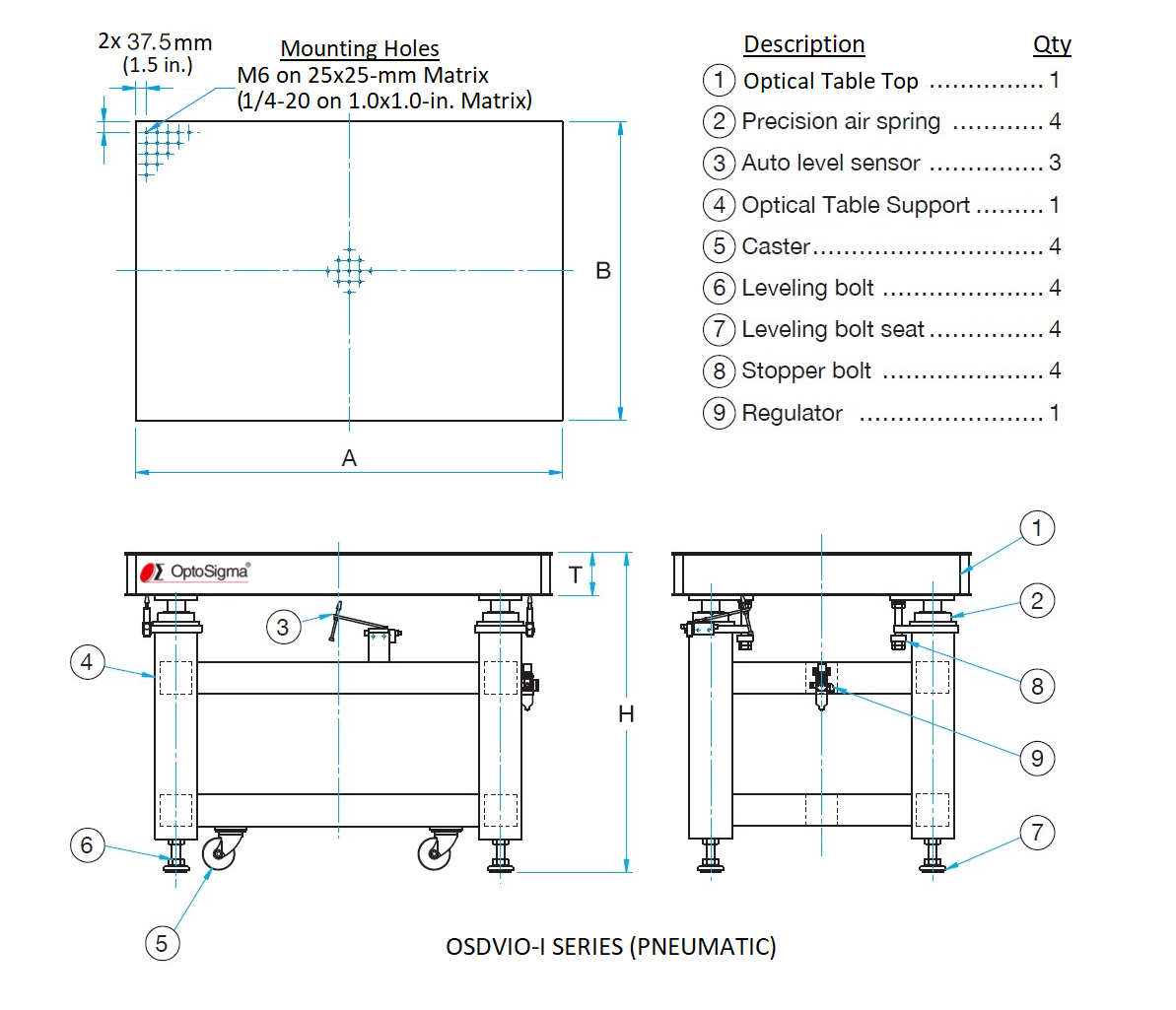

These are similar to the OSDVIO Optical Tables with two exceptions:
- 1. The work-surface height is 900 mm instead of 800 mm.
- 2. The 2.4X1.2 m (4’x8’) tables include a 75-mm access hole in the center
Customize product
Filters
Enabled filters :
Remove all filters
| Name |
Support Type
|
A x B
|
H
|
Load Capacity
|
Mounting Thread
|
Delivery | Price | Add to cart | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
details
OSDVIO-I-1812M-200t(900H)
|
Pneumatic | 1800mm x 1200mm | 900mm | 100kg | M6 |
5-6 weeks
|
$10,593.00
|
|
|
||||||||
|
details
OSDVIO-I-1812E-200t(900H)
|
Pneumatic | 6'x4' | 36" | 100kg | 1/4-20UNC |
in stock
|
$10,593.00
|
|
|
||||||||
|
details
OSDVIO-I-2412CM-300t(900H)
|
Pneumatic | 2400mm x 1200mm | 900mm | 500kg | M6 |
5-6 weeks
|
$9,690.00
|
|
|
||||||||
|
details
OSDVIO-I-2412CE-300t(900H)
|
Pneumatic | 8'x4' | 36" | 500kg | 1/4-20UNC |
5-6 weeks
|
$9,690.00
|
|
|
You must be logged in to ask questions
◦This vibration isolator rapidly attenuates vibrations transmitted to mounted equipment and instruments, and is essential for equipment and instruments that are affected by vibration.
◦The bench is lightweight and has excellent stiffness due to the steel honeycomb core.
◦The top surface of the bench is made from a magnetic stainless steel with tapped holes.
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
◦The bench is lightweight and has excellent stiffness due to the steel honeycomb core.
◦The top surface of the bench is made from a magnetic stainless steel with tapped holes.
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
