In stock
SKU
C60-SLFH-M-SMH-UDL
Holder to integrate focusing lens or other optics into the Cage system.
Customize product
Filters
Enabled filters :
Remove all filters
Attention
▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
| Name | Delivery | Price | Add to cart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
Cage Side-in Focusing Lens Holder

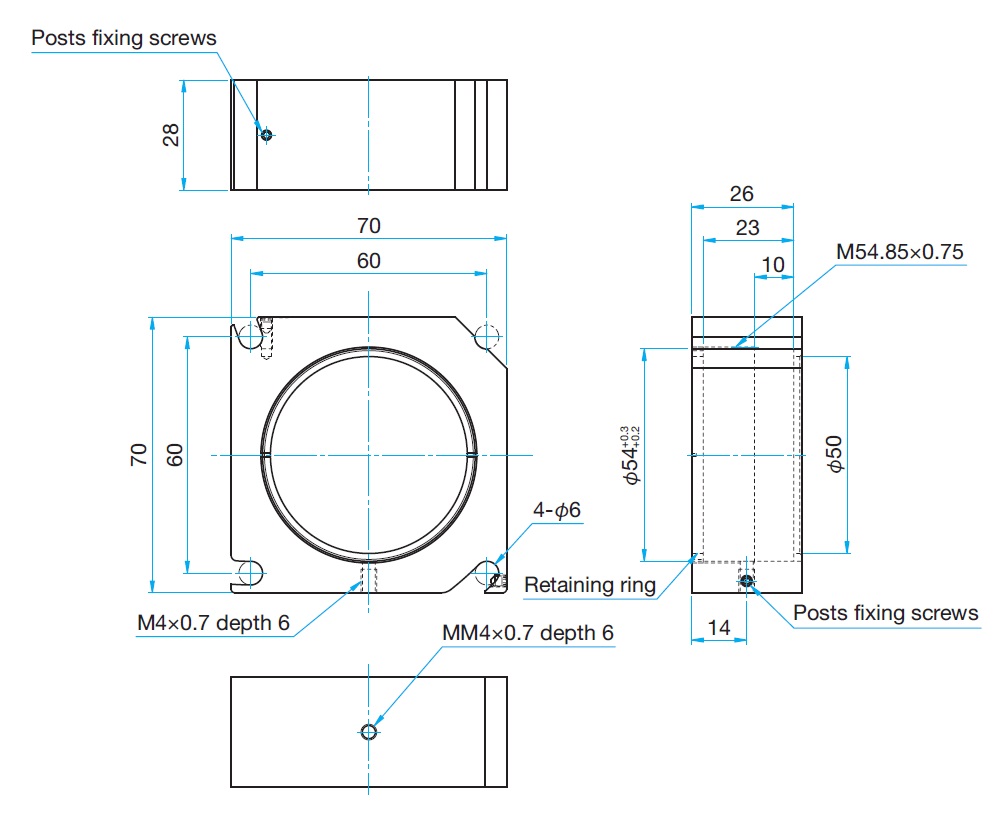

C60-SMH-UDL-50 |
2 weeks
|
$61.00
|
|
|
||||||||||||
|
i
Cage Side-in Focusing Lens Holder

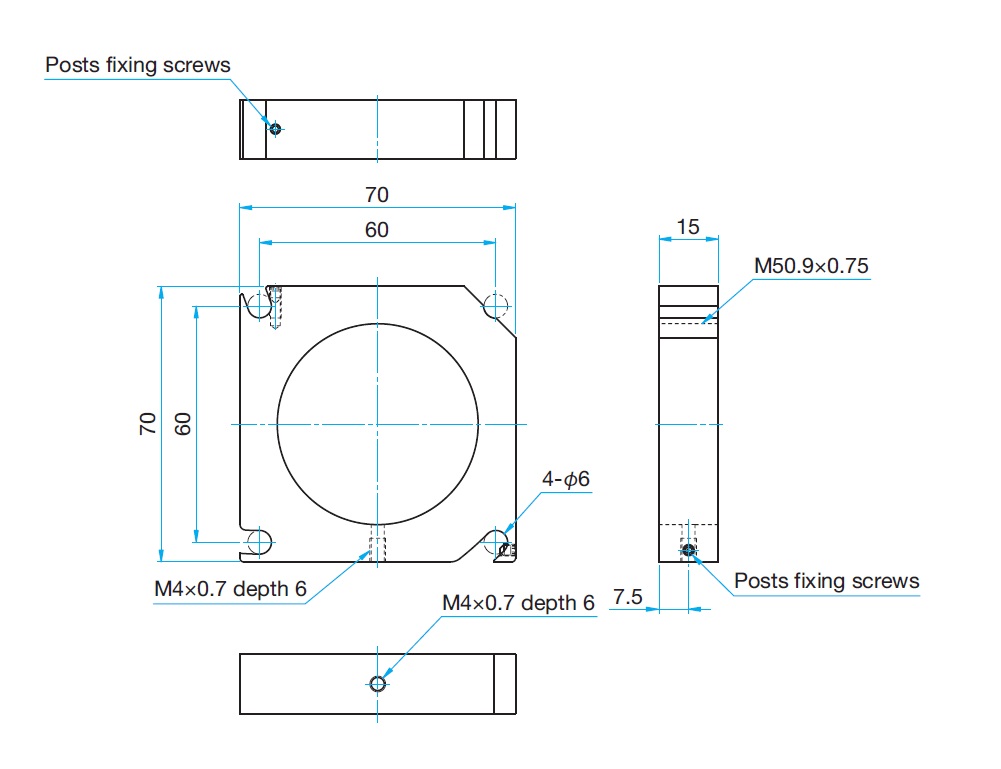

C60-SLFH-M50.9 |
2 weeks
|
$51.00
|
|
|
||||||||||||
|
i
Cage Side-in Focusing Lens Holder

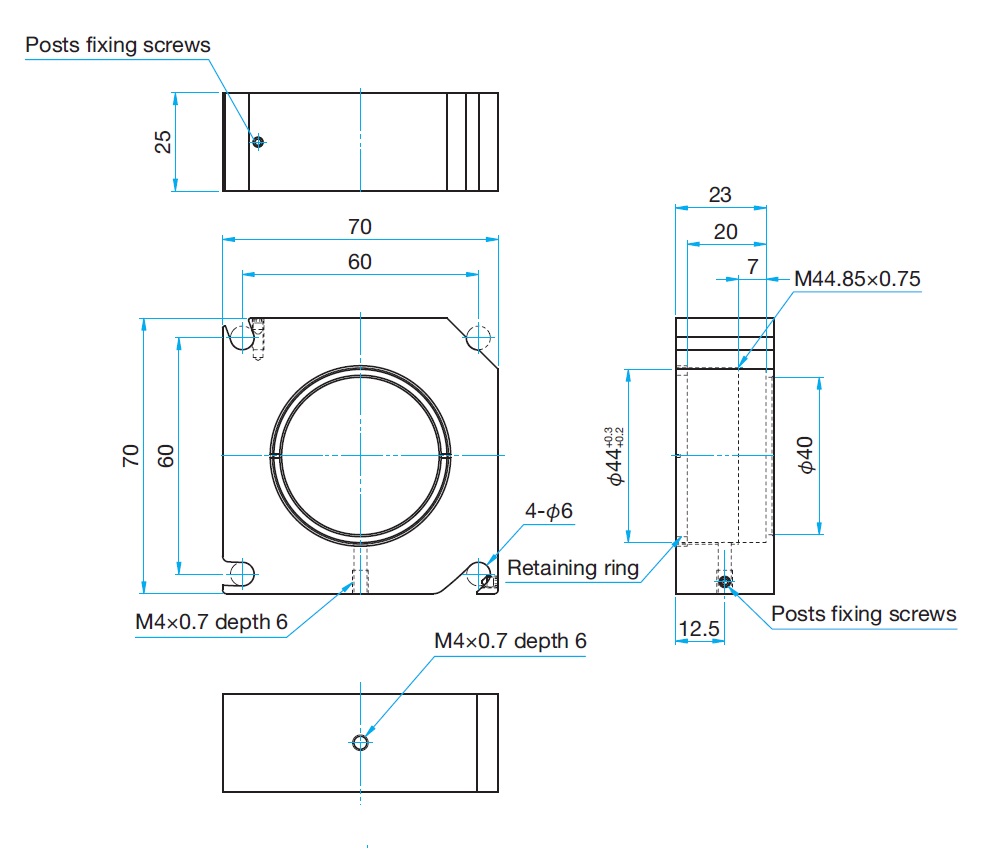

C60-SMH-UDL-40 |
2 weeks
|
$61.00
|
|
|
You must be logged in to ask questions
◦ Four dedicated rods are used in the cage system to attach various kinds of components along the optical axis.
There are three types of cage system available. Two types uses dedicated rod of dia. 6mm. One of them is P30 mm corner arrangement (C30 series) and another one is P60 mm corner arrangement (C60 series).
In addition, the one uses a dedicated rod of dia. 4mm is available for P16 mm corner arrangement to miniaturize.
