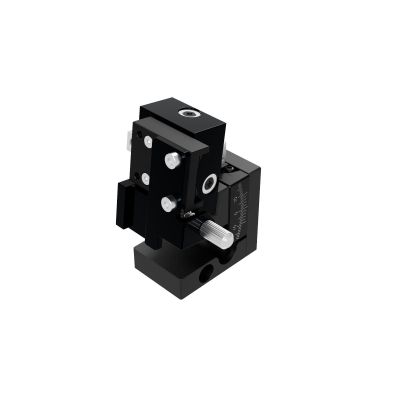

Array Holder for Grating Coupler - Right
ARH-010R-GC8
Fiber holder to fix fiber arrays up to 4~10 mm in width for grating couplers.
Attached to the holder mounting table of the fiber alignment unit.
For use in aligning grating fiber couplers, a variety of fiber holders are available that can be positioned vertically. Lineups for bare fiber and fiber arrays are available.
The angle can be adjusted in the range of 0° to 18°, corresponding to a preset angle of 8°.
Fiber arrays of 4 to 10 mm can be securely fixed depending on the amount of turning of the clamping screw.
Attachment to the fiber alignment unit is a one-touch operation using magnets for easy connection and disconnection.
Can be attached to the DAU-8100A series alignment unit.
| Name | Array Holder for Grating Coupler - Right |
|---|---|
| Weight | 0.1600kgs |
| Guide | Fiber holders are also available for grating couplers. For sizes and shapes not listed here, please contact our sales department. |
| Attention | Please pay attention to the tightening force when securing with the clamp screws. Excessive tightening may cause damage to the fiber array. |
| Array width | 4～10mm |
| Preset angle | 8° |
| Adjustment Range | 0～18° |
| Material / Finish | Aluminum / Black anodized |
In stock
SKU
ARH-010R-GC8
