Aperture Rotation Stages

KSPB-KSW

More about
Aperture Rotation Stages
In stock
SKU
KSPB-KSW
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Stage Size Rotation Range Load Capacity Mounting Thread Delivery Price Add to cart
i
120mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Coarse and Fine Rotation, Worm-gear Drive, 1/4-20 Threads
KSW-1206UU 		φ120mm Coarse :360°　Fine :360° 196N (20.0kg) 1/4-20UNC
in stock
$1,419.00
Primary Material Brass
Finish Super black chrome
Guide Method Crossed roller
Stage Size φ120mm
Rotation Range Coarse :- Fine :360°
Scale Readable Resolution 5′
Knob Rotation Angle 1.62°/rotation
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 60μm
Eccentricity 30μm
Wobble 30μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Micrometer Drive, M6 Threads
KSPB-1206MH-M6 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M6
in stock
$974.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 31.8″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, M6 Threads
KSPB-1606MH-M6 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M6
in stock
$1,106.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 23.7″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Hex Screw Drive, M6 Threads
KSPB-1206FPH-M6 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M6
6-12 weeks
$937.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Hex Screw Drive, M6 Threads
KSPB-1606FPH-M6 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M6
6-12 weeks
$1,069.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i

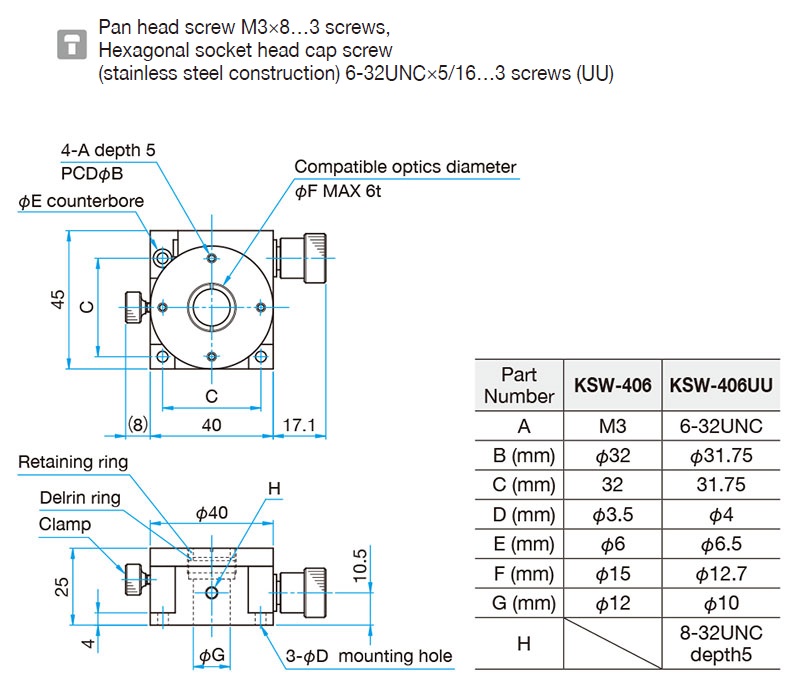

40mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Fine Rotation Only, Worm-gear Drive, M3 Threads
KSW-406 		φ40mm Coarse :－　Fine :360° 49N (5.0kg) M3
in stock
$439.00
Primary Material Brass
Finish Super black chrome
Guide Method Lapping method
Stage Size φ40mm
Rotation Range Coarse :- Fine :360°
Scale Readable Resolution 2°
Knob Rotation Angle about 7.5°/rotation
Load Capacity 49N(5.0kgf)
Max. Moment Capacity / Pitch 0.29N･m
Moment Stiffness 1.5″/N･cm
Parallelism 30μm
Eccentricity 20μm
Wobble 20μm
i

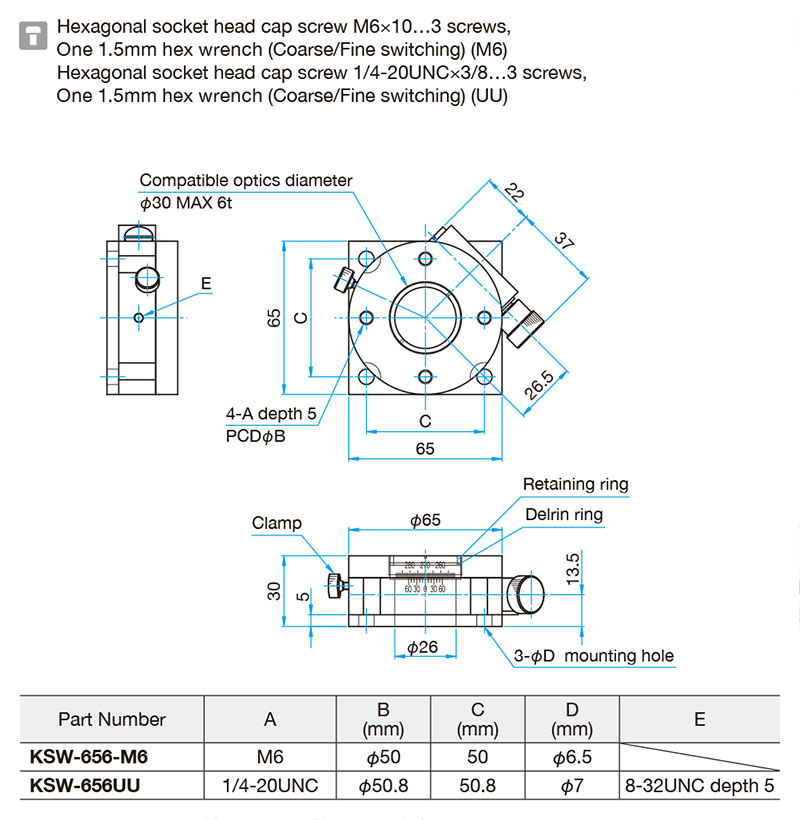

65mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Coarse and Fine Rotation, Worm-gear Drive, M6 Threads
KSW-656-M6 		φ65mm Coarse :360°　Fine :360° 98N (10.0kg) M6
2 weeks
$620.00
Primary Material Brass
Finish Super black chrome
Guide Method Lapping method
Stage Size φ65mm
Rotation Range Coarse :360° Fine :360°
Scale Readable Resolution 10′
Knob Rotation Angle 4°/rotation
Load Capacity 98.0N(10.0kgf)
Max. Moment Capacity / Pitch 0.49N･m
Moment Stiffness 0.9″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i
120mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Coarse and Fine Rotation, Worm-gear Drive, M4 Threads
KSW-1206 		φ120mm Coarse :360°　Fine :360° 196N (20.0kg) M4
in stock
$1,419.00
Primary Material Brass
Finish Super black chrome
Guide Method Crossed roller
Stage Size φ120mm
Rotation Range Coarse :- Fine :360°
Scale Readable Resolution 5′
Knob Rotation Angle 2.05°/rotation
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 60μm
Eccentricity 30μm
Wobble 30μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Micrometer Drive, 1/4-20 Threads
KSPB-1206MHUU 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) 1/4-20UNC
6-12 weeks
$974.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 31.8″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, 1/4-20 Threads
KSPB-1606MHUU 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) 1/4-20UNC
6-12 weeks
$1,106.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 23.7″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Hex Screw Drive, 1/4-20 Threads
KSPB-1206FPHUU 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) 1/4-20UNC
6-12 weeks
$935.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Hex Screw Drive, 1/4-20 Threads
KSPB-1606FPHUU 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) 1/4-20UNC
6-12 weeks
$1,066.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
40mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Fine Rotation Only, Worm-gear Drive, 6-32 Threads
KSW-406UU 		φ40mm Coarse :－　Fine :360° 49N (5.0kg) 6-32UNC
in stock
$439.00
Primary Material Brass
Finish Super black chrome
Guide Method Lapping method
Stage Size φ40mm
Rotation Range Coarse :- Fine :360°
Scale Readable Resolution 2°
Knob Rotation Angle about 7.5°/rotation
Load Capacity 49N(5.0kgf)
Max. Moment Capacity / Pitch 0.29N･m
Moment Stiffness 1.5″/N･cm
Parallelism 30μm
Eccentricity 20μm
Wobble 20μm
i
65mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Coarse and Fine Rotation, Worm-gear Drive, 1/4-20 Threads
KSW-656UU 		φ65mm Coarse :360°　Fine :360° 98N (10.0kg) 1/4-20UNC
in stock
$620.00
Primary Material Brass
Finish Super black chrome
Guide Method Lapping method
Stage Size φ65mm
Rotation Range Coarse :360° Fine :360°
Scale Readable Resolution 10′
Knob Rotation Angle 4°/rotation
Load Capacity 98.0N(10.0kgf)
Max. Moment Capacity / Pitch 0.49N･m
Moment Stiffness 0.9″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i

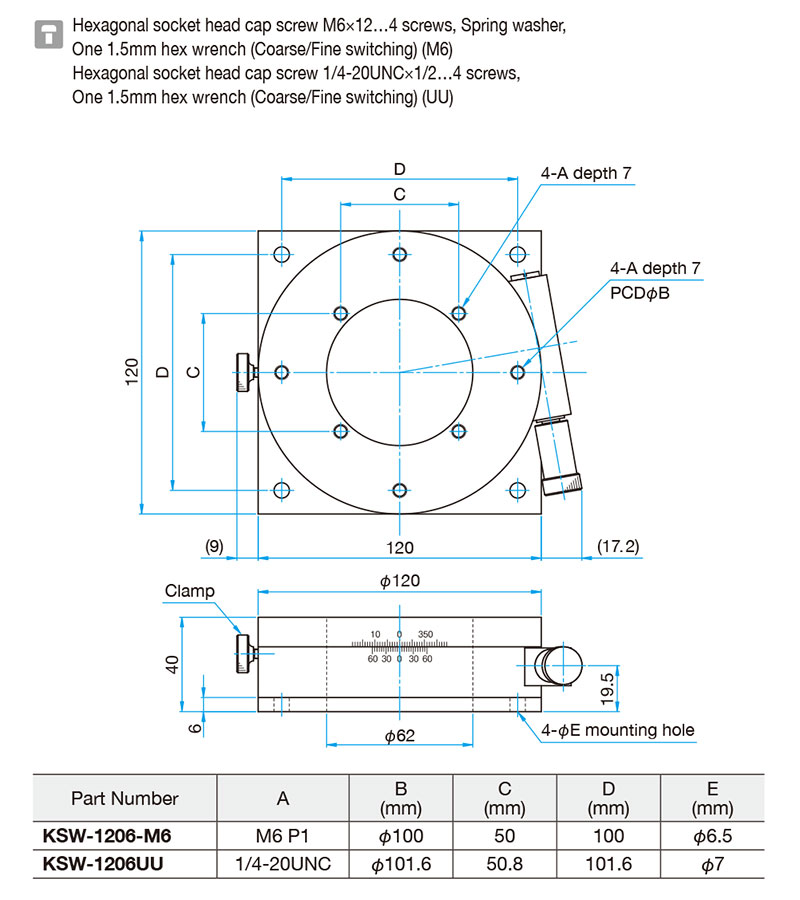

120mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Coarse and Fine Rotation, Worm-gear Drive, M6 Threads
KSW-1206-M6 		φ120mm Coarse :360°　Fine :360° 196N (20.0kg) M6
in stock
$1,419.00
Primary Material Brass
Finish Super black chrome
Guide Method Crossed roller
Stage Size φ120mm
Rotation Range Coarse :- Fine :360°
Scale Readable Resolution 5′
Knob Rotation Angle 1.62°/rotation
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 60μm
Eccentricity 30μm
Wobble 30μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Micrometer Drive, M4 Threads
KSPB-1206MH 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M4
2 weeks
$974.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 31.8″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, M4 Threads
KSPB-1606MH 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M4
2 weeks
$1,106.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 23.7″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Hex Screw Drive, M4 Threads
KSPB-1206FPH 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M4
6-12 weeks
$935.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Hex Screw Drive, M4 Threads
KSPB-1606FPH 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M4
6-12 weeks
$1,066.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i

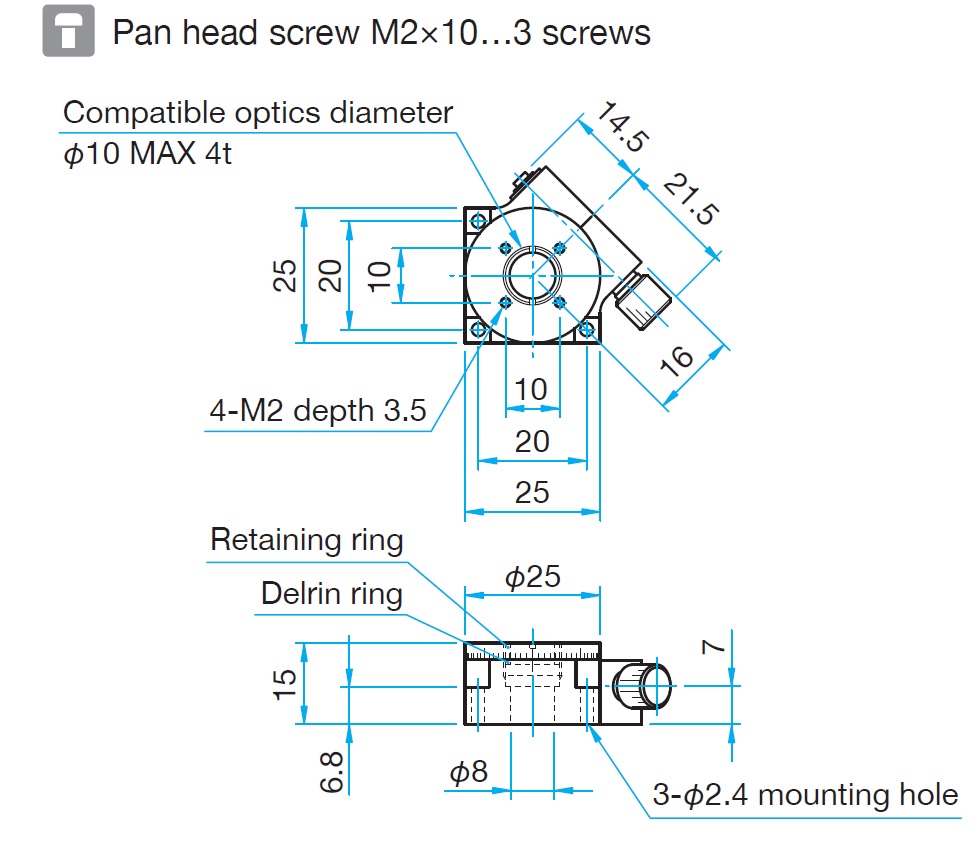

25mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Fine Rotation Only, Worm-gear Drive Drive, M2 Threads
KSW-256 		φ25mm Coarse :－　Fine :360° 29.4N (3.0kg) M2
in stock
$362.00
Primary Material Brass
Finish Super black chrome
Guide Method Lapping method
Stage Size φ25mm
Rotation Range Coarse :- Fine :360°
Scale Readable Resolution 5°
Knob Rotation Angle about 8°/rotation
Load Capacity 29.4N(3.0kgf)
Max. Moment Capacity / Pitch 0.14N･m
Moment Stiffness 6.1″/N･cm
Parallelism 30μm
Eccentricity 20μm
Wobble 15μm
i

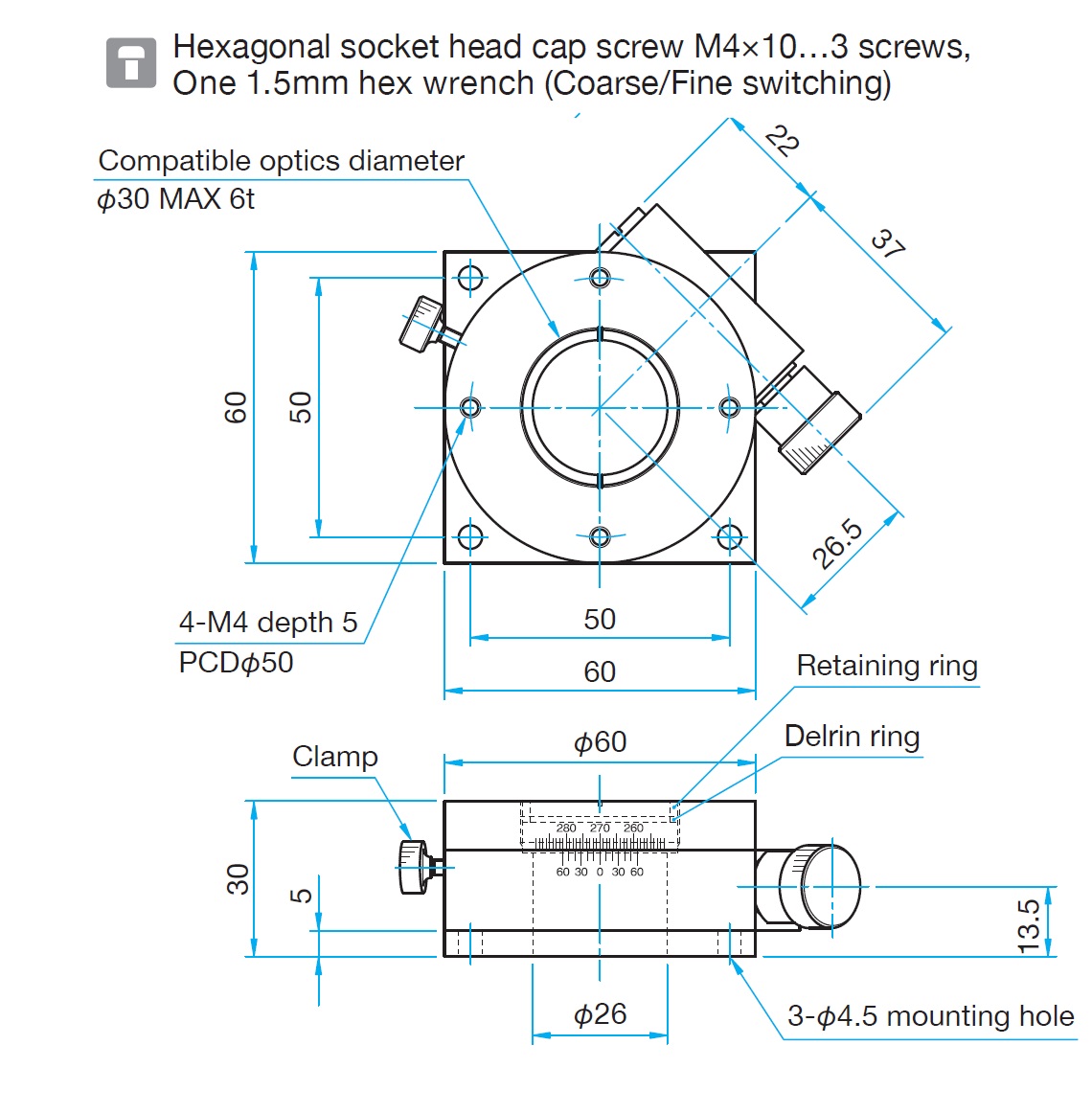

60mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Fine Rotation Only, Worm-gear Drive, M4 Threads
KSW-606 		φ60mm Coarse :－　Fine :360° 98N (10.0kg) M4
2 weeks
$555.00
Primary Material Brass
Finish Super black chrome
Guide Method Lapping method
Stage Size φ60mm
Rotation Range Coarse :- Fine :360°
Scale Readable Resolution 10′
Knob Rotation Angle about 4°/rotation
Load Capacity 98.0N(10.0kgf)
Max. Moment Capacity / Pitch 0.49N･m
Moment Stiffness 0.9″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i
84mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Fine Rotation Only, Worm-gear Drive, M4 Threads
KSW-1006 		φ84mm Coarse:360° 78.4N (8.0kg) M4
2 weeks
$620.00
Primary Material Aluminum
Finish Black anodized
Guide Method Lapping method
Stage Size φ84mm
Rotation Range Coarse:360°
Scale Readable Resolution 5′
Knob Rotation Angle 2.05°/rotation
Load Capacity 78.4N(8.0kgf)
Max. Moment Capacity / Pitch 1N･m
Moment Stiffness 0.5"/N･cm
Parallelism 70μm
Eccentricity 20μm
Wobble 20μm

You must be logged in to ask questions

Crossed roller bearing for high precision and high stiffness.
Vernier scales for reading angular position.
Center hole extends completely through stage.
Available with micrometers or fine pitch screws.
The through hole at the center of the stage can be used as a transmission hole.
In order to switch coarse / fine adjustment, please use a set screw inside of the side surface of the rotation stage.(The location of the set screw is indicated by â–½ mark.)
