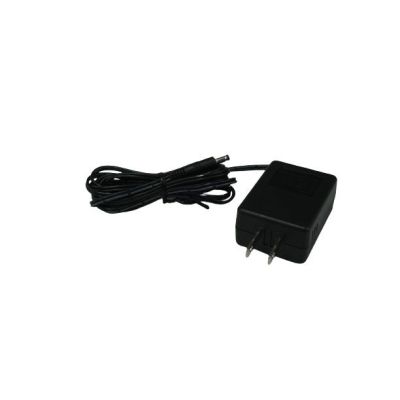

AC to DC Power Adaptor, 6VDC, 2.0A Output
AC-ADP-0620-62368
Plug-in power supply for devices requiring 6VDC to operate. Note the jack has a 4mm outer diameter. Compatible with Piezo Assist controllers: PADC-101 and PADC-103.
| Name | AC to DC Power Adaptor, 6VDC, 2.0A Output |
|---|---|
| Weight | 0.2000kgs |
| Guide | Compatible with Piezo Assist controllers: PADC-101 and PADC-103 |
| Attention | Applicable size of DC jack is dia.4mm. When preparing the power supply by the customer, pay attention to the plug diameter and polarity. |
| Output Power Voltage | DC6V 2.0A |
| External Dimensions | 43.5×40.2×60mm |
| DoE Level | Level VI |
| Jack Diameter ID/OD | 1.7mm/4.0mm |
| Input Voltage | 100–240V AC (50/60Hz) |
| Polarity | Center-positive (+) |
In stock
SKU
AC-ADP-0620-62368
$65.00
Customize product
Plug-in power supply for devices requiring 6VDC to operate. Note the jack has a 4mm outer diameter. Compatible with Piezo Assist controllers: PADC-101 and PADC-103.
