50.8mm Dia. Off-Axis Parabolic Mirror, 101.6 mm FL, Prot Gold -700-20000nm Coating, 90 deg.

OPG-50.8-101.6-A90

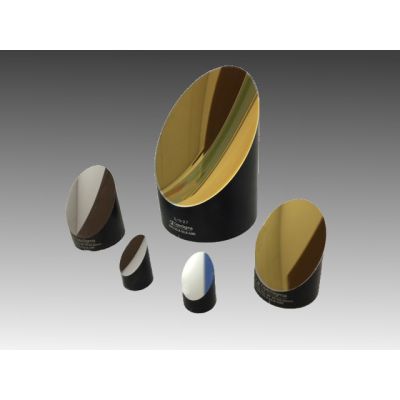

OAPs (Off-Axis Parabolic) mirrors combine the achromatic and diffraction-limited focusing properties of a parabolic mirror with the ability to deviate the light path off-axis, which is useful for most optical systems. The reflected angle for this family is 90 degrees. Parabolic mirrors are aspherical and therefore ideally suited for use in optical instruments. They are free from spherical and chromatic aberrations, and thus focus the parallel beam to a point or point source to infinity. Each diameter is available in two focal lengths and two reflective metallic coatings. The back side of the mirror has threaded mounting holes and keying dowel pin holes for fixing location and orientation.
OAPs combine the achromatic and diffraction limited imaging properties of a parabolic mirror with the ability to deviate the light path off-axis, which is useful for most imaging systems.
More Information
Name 50.8mm Dia. Off-Axis Parabolic Mirror, 101.6 mm FL, Prot Gold -700-20000nm Coating, 90 deg.
Weight 0.2000kgs
Standard Coatings Available No
Guide
  • Parabolic mirrros are free from spherical and chromatic aberrations
Attention
  • The back side of the mirror has threded mounting holes and keying dowel pin holes for fixing location and orientation.
  • Each diemater is available in two focal lengths and two refelctive metalic coatings.
  • The reflected angle is 90 degrees.
Coating Protected Gold
Diameter φD 50.8mm
Focal length 101.6mm
Numerical Aperture 0.22
Reflectance Rave.>94%
Material Aluminum
Process Diamond Turning
Surface Figure Lambda/4
Focus Tolerance +/-1%
Coating Protected Gold
Clear aperture 90% of the diameter
Surface Quality <br> (Scratch-Dig) 80-50
Focus Point Height from Base 38.1mm
Mounting Screw Threads M4
In stock
SKU
OPG-50.8-101.6-A90
$394.00

Delivery in : in stock

OAPs (Off-Axis Parabolic) mirrors combine the achromatic and diffraction-limited focusing properties of a parabolic mirror with the ability to deviate the light path off-axis, which is useful for most optical systems. The reflected angle for this family is 90 degrees. Parabolic mirrors are aspherical and therefore ideally suited for use in optical instruments. They are free from spherical and chromatic aberrations, and thus focus the parallel beam to a point or point source to infinity. Each diameter is available in two focal lengths and two reflective metallic coatings. The back side of the mirror has threaded mounting holes and keying dowel pin holes for fixing location and orientation.
