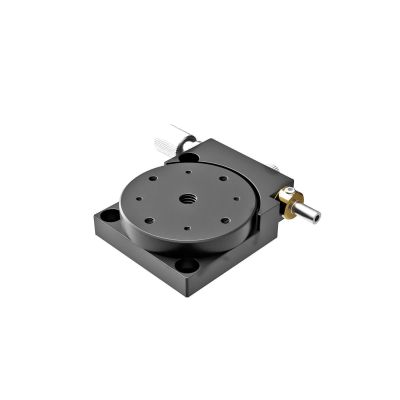

40mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Hex Screw Drive, M3 Threads

KSP-406FP

3d-simple-product
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.



More Information
Name 40mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Hex Screw Drive, M3 Threads
Weight 0.3000kgs
Guide
  • Most stages can be directly mounted to corresponding sized linear stages for multiple axis adjustments.
  • Using the top plate for KSP-406 (SP-123)(WEB Reference Catalog Code/W6068) to convert mounting holes, various stages can be mounted.
  • Using the top plate for KSP/KSPA (SP-103)(WEB Reference Catalog Code/W6059) to convert mounting holes, various stages can be mounted.
  • Using the bottom plate for KSP-786M (SP-104))(WEB Reference Catalog Code/W6059) to convert mounting holes, mounting on magnet bases or 60 × 60mm stages (M4 50×50) is possible.
  • Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention -
Image Label Rotation Stage Brass 40mm with 360 Degree Course Adjustment and 10 Degree Fine Pitch Screw Adjustment and Lockable with Metric Holes
Stage Size φ40mm
Rotation Range Coarse:360° Fine:±5°
Load Capacity 49N (5.0kg)
Mounting Thread M3
Stage Size φ40mm
Rotation Range Coarse:360° Fine:±5°
Scale Readable Resolution
Micrometer Readable Resolution -
Guide Method Lapping method
Primary Material Brass
Finish Super black chrome
Load Capacity 49N(5.0kgf)
Max. Moment Capacity 0.3N・m
Moment Stiffness 1.5″/N・cm
Parallelism 20μm
Eccentricity 20μm
Wobble 20μm
In stock
SKU
KSP-406FP
$250.00

Delivery in : 2 weeks

Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
