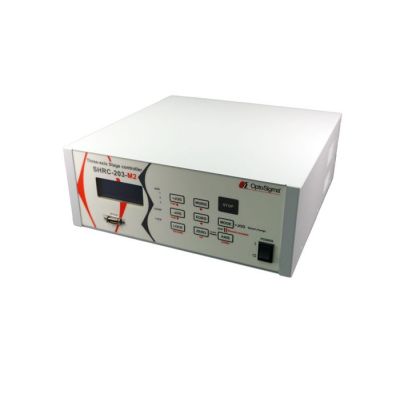

3 Axis Stage Controller (for 2-phase Stepping Motor)
SHRC-203-M2
This controller can control a motorized stage equipped with a 2-phase stepping motor in 4 different command formats.
- 3-axis stage controller with built-in 2-phase stepping motor driver for full closed-loop control with linear and rotary encoders.
- In addition to our original commands, G code can be used.
- It is equipped with flow control that receives and holds multiple next move commands even when stage motion is not completed, and executes them in the order received.
- External control via USB/GP-IB/Ethernet interface, manual operation via front panel or handy terminal (JS-301, JB-401, JD-101, MD-400), and automatic control via internal program (8 banks) are available.
| Name | 3 Axis Stage Controller (for 2-phase Stepping Motor) |
|---|---|
| Weight | 4.6000kgs |
| Guide |
|
| Number of Control Axes | 3 Axes |
| Power Source | AC100 - 240V±10% 50/60Hz |
| Current Consumption | 2A |
| Operating Temperature | 5 - 40℃ |
| Storage Temperature | -20 - 60℃ |
| Ambient Humidity | 20 - 80%RH (without condensation) |
| External Dimensions (W×H×D) | 265×99×265mm |
| Coordinate Indication Range | ±999,999,999 |
| Max. Travel to Set | -2147483648～ ＋2147483647 Pulse |
| Max. Driving Speed | 1,000,000pps |
| Min. Driving Speed | 1pps |
| Acceleration/Deceleration Time | 1～1,000ms |
| Micro-step (Max. Division) | 8,000 |
| Driving Current | 0.2 - 2.8A/phase |
| Interface | GP-IB / USB / Ethernet |
