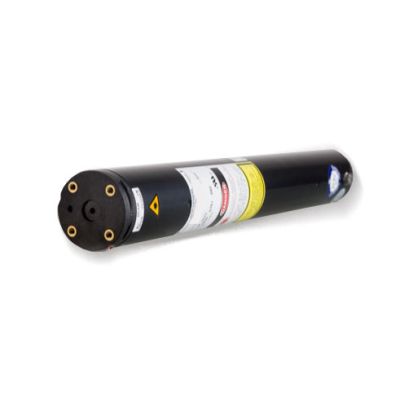

18mW HeNe Laser, 632.8 nm, 1.0mm Beam, 45mm Diameter, 637mm Long

OSK-6328-18

The laser module oscillates at 632.8nm and with linear polarization. It features high beam quality, low noise, high stability and long lifetime.
◦1.7 meter length cable connected.
More Information
Name 18mW HeNe Laser, 632.8 nm, 1.0mm Beam, 45mm Diameter, 637mm Long
Weight 0.9300kgs
Guide
  • Please contact our sales for the laser which output power is not listed.
Attention
  • As imported products, prices and lead times are subject to change.
Image Label He-Ne Laser 18mW BD1mm
Beam Diameter 1mm
Description He-Ne Laser
18mW BD1mm
Beam Diameter 1mm
Beam Divergence ≤ 1.0mrad
Dimension Ø x L 45x637mm
Output Power 18mW
Operating Voltage 3700V
Operating Current 7mA
Polarized None
In stock
SKU
OSK-6328-18
$2,057.00

Delivery in : 6-12 weeks

The laser module oscillates at 632.8nm and with linear polarization. It features high beam quality, low noise, high stability and long lifetime.
