160X220mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-0.7-deg.,+/-0.6-deg, M4 Threads

AIS-1622B

3d-simple-product

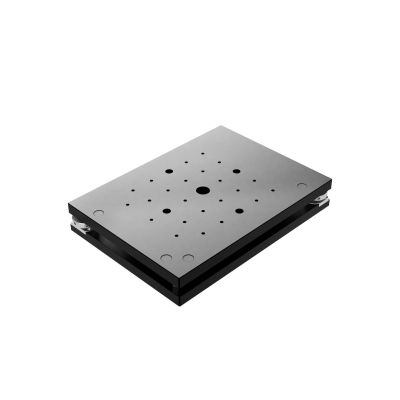

Tilt stages for adjusting the tilt of a sample on the table top to an arbitrary angle.
The adjustment knobs are located on the side of the stage to minimize protrusions.



More Information
Name 160X220mm, 2-Axis Kinematic Tilt Stage, Aluminum, Edge-Knob Adjustment, +/-0.7-deg.,+/-0.6-deg, M4 Threads
Weight 2.5000kgs
Guide
  • Since the Stage Sizes of AIS-8013B/1016B/1622B are the same as that of the precision labjacks (LJ/LJA), these can be used in combination with the labjacks.(WEB Reference Catalog Code/W7055)
Attention
  • Please use in surface load because the three-point support structure. It can not be used hanging on the wall or upside down.
Stage Size 160×220mm
Tilt Range (α axis)±0.7°(β axis)±0.6°
Load Capacity 98N (10.0kg)
Stage Size 160×220mm
Tilt Range (α axis)±0.7°(β axis)±0.6°
Travel per Knob Rotation (α axis)about 0.33°(β axis)about 0.22°
Primary Material Aluminum
Finish Black anodized
Load Capacity 98.0N(10.0kgf)
In stock
SKU
AIS-1622B
$649.00

Delivery in : 2 weeks

Tilt stages for adjusting the tilt of a sample on the table top to an arbitrary angle.
The adjustment knobs are located on the side of the stage to minimize protrusions.
