Round Aluminum-Coated Mirrors

TFA-C

More about
Round Aluminum-Coated Mirrors
In stock
SKU
TFA-C
This is a vapor-deposited aluminum flat mirror with the substrate polished with high accuracy, designed for high reflectivity at any incident angle.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name

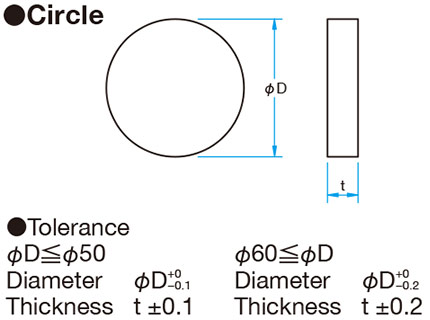

Diameter φD
Material
Reflectance
Protective Coating
Parallelism
Surface Flatness
Delivery Price Add to cart
details
TFA-25C05-4
25mm BK7 Rave.＞90% Yes <3' λ/4
6-12 weeks
£29.52
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Polished
details
TFAQN-40C08-20
40mm Synthetic fused silica No <3' λ/20
6-12 weeks
£295.31
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 8mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-100C15-4
100mm Hard glass Rave.＞90% No <3' λ/4
6-12 weeks
£246.09
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ/4
Rear surface Polished
details
TFAQ-25C06-20
25mm Synthetic fused silica Yes <3' λ/20
2 weeks
£118.12
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-50C08-10
50mm BK7 Rave.＞90% Yes <3' λ/10
2 weeks
£147.65
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-130C18-4
130mm Hard glass Rave.＞90% Yes <3' λ/4
6-12 weeks
£393.74
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-10C05-10
10mm BK7 Rave.＞90% Yes <3' λ/20
1 week
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-10C03-10
10mm BK7 Rave.＞90% No <3' λ/10
6-12 weeks
£24.15
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-25C05-10
25mm BK7 Rave.＞90% No <3' λ/10
6-12 weeks
£39.37
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-50C08-1
50mm BK7 Rave.＞90% No <3' λ
2-3 weeks
£88.58
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ
Rear surface Polished
details
TFAN-130C18-4
130mm Hard glass Rave.＞90% No <3' λ/4
6-12 weeks
£393.74
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ/4
Rear surface Polished
details
TFAQN-10C06-20
10mm Synthetic fused silica No <3' λ/20
6-12 weeks
£63.53
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-25.4C05-4
25.4mm BK7 Rave.＞90% Yes <3' λ/4
2 weeks
£34.00
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25.4mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-50C08-20
50mm BK7 Rave.＞90% No <3' λ/20
1 week
£295.31
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-150C20-4
150mm Hard glass Rave.＞90% Yes <3' λ/4
6-12 weeks
£689.07
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ/4
Rear surface Polished
details
TFAQ-12.7C06-20
12.7mm Synthetic fused silica Yes <3' λ/20
6-12 weeks
£68.91
Material Synthetic fused silica
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ12.7mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-25.4C05-10
25.4mm BK7 Rave.＞90% No <3' λ/10
2 weeks
£39.37
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25.4mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-60C10-1
60mm Hard glass Rave.＞90% Yes <3' λ
2 weeks
£98.42
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ
Rear surface Polished
details
TFAN-150C20-4
150mm Hard glass Rave.＞90% No <3' λ/4
6-12 weeks
£689.07
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-15C05-20
15mm BK7 Rave.＞90% Yes <3' λ/20
6-12 weeks
£49.21
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-30C05-10
30mm BK7 Rave.＞90% Yes <3' λ/10
2 weeks
£57.26
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-60C10-20
60mm Hard glass Rave.＞90% Yes <3' λ/20
6-12 weeks
£492.19
Material Hard glass
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-15C05-10
15mm BK7 Rave.＞90% No <3' λ/10
2 weeks
£24.15
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-30C05-1
30mm BK7 Rave.＞90% No <3' λ
6-12 weeks
£29.52
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ
Rear surface Polished
details
TFAN-60C10-10
60mm Hard glass Rave.＞90% No <3' λ/10
2 weeks
£246.09
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-20C03-10
20mm BK7 Rave.＞90% Yes <3' λ/10
1 week
£34.00
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-30C05-20
30mm BK7 Rave.＞90% No <3' λ/20
2 weeks
£115.43
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-80C12-4
80mm Hard glass Rave.＞90% Yes <3' λ/4
6-12 weeks
£216.56
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-20C05-20
20mm BK7 Rave.＞90% Yes <3' λ/20
2 weeks
£68.91
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-40C06-4
40mm BK7 Rave.＞90% Yes <3' λ/4
6-12 weeks
£78.74
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-80C12-1
80mm Hard glass Rave.＞90% No <3' λ
2 weeks
£137.82
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ
Rear surface Polished
details
TFAN-20C05-4
20mm BK7 Rave.＞90% No <3' λ/4
2-3 weeks
£29.52
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFAQ-40C08-20
40mm Synthetic fused silica Yes <3' λ/20
6-12 weeks
£273.17
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 8mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-80C12-20
80mm Hard glass Rave.＞90% No <3' λ/20
2 weeks
£630.00
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/20
Rear surface Polished
details
TFAQN-20C06-20
20mm Synthetic fused silica No <3' λ/20
6-12 weeks
£88.58
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-40C06-10
40mm BK7 Rave.＞90% No <3' λ/10
6-12 weeks
£98.42
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-100C15-10
100mm Hard glass Rave.＞90% Yes <3' λ/10
6-12 weeks
£393.74
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-25C05-10
25mm BK7 Rave.＞90% Yes <3' λ/10
6-12 weeks
£39.37
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-50C08-1
50mm BK7 Rave.＞90% Yes <3' λ
2-3 weeks
£88.58
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ
Rear surface Polished
details
TFAN-100C15-10
100mm Hard glass Rave.＞90% No <3' λ/10
6-12 weeks
£393.74
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-10C03-4
10mm BK7 Rave.＞90% Yes <3' λ/4
6-12 weeks
£19.67
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 3mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-10C05-20
10mm BK7 Rave.＞90% Yes <3' λ/20
2 weeks
£49.21
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-25C05-1
25mm BK7 Rave.＞90% No <3' λ
6-12 weeks
£24.15
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ
Rear surface Polished
details
TFA-50C08-20
50mm BK7 Rave.＞90% Yes <3' λ/20
6-12 weeks
£295.31
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-130C18-10
130mm Hard glass Rave.＞90% Yes <3' λ/10
6-12 weeks
£689.07
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-10C05-10
10mm BK7 Rave.＞90% No <3' λ/10
2 weeks
£24.15
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-25C05-20
25mm BK7 Rave.＞90% No <3' λ/20
2 weeks
£78.74
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-50C08-4
50mm BK7 Rave.＞90% No <3' λ/4
2-3 weeks
£127.95
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-130C18-10
130mm Hard glass Rave.＞90% No <3' λ/10
6-12 weeks
£689.07
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-12.7C05-4
12.7mm BK7 Rave.＞90% Yes <3' λ/4
6-12 weeks
£19.67
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ12.7mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFA-25.4C05-10
25.4mm BK7 Rave.＞90% Yes <3' λ/10
2 weeks
£39.37
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25.4mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Polished
details
TFAQN-50C10-20
50mm Synthetic fused silica No <3' λ/20
6-12 weeks
£442.98
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 10mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-150C20-10
150mm Hard glass Rave.＞90% Yes <3' λ/10
6-12 weeks
£1,082.81
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-15C03-10
15mm BK7 Rave.＞90% Yes <3' λ/10
2 weeks
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-30C05-1
30mm BK7 Rave.＞90% Yes <3' λ
2 weeks
£29.52
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ
Rear surface Polished
details
TFA-60C10-4
60mm Hard glass Rave.＞90% Yes <3' λ/4
6-12 weeks
£157.49
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-150C20-10
150mm Hard glass Rave.＞90% No <3' λ/10
6-12 weeks
£1,082.81
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ/10
Rear surface Polished
details
TFAQ-15C06-20
15mm Synthetic fused silica Yes <3' λ/20
2 weeks
£68.91
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-30C05-20
30mm BK7 Rave.＞90% Yes <3' λ/20
2 weeks
£115.43
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-60C10-1
60mm Hard glass Rave.＞90% No <3' λ
2 weeks
£98.42
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ
Rear surface Polished
details
TFAN-15C05-20
15mm BK7 Rave.＞90% No <3' λ/20
6-12 weeks
£49.21
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-30C05-4
30mm BK7 Rave.＞90% No <3' λ/4
6-12 weeks
£47.41
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-60C10-20
60mm Hard glass Rave.＞90% No <3' λ/20
6-12 weeks
£492.19
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-20C05-4
20mm BK7 Rave.＞90% Yes <3' λ/4
6-12 weeks
£29.52
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Ground
details
TFAQN-30C06-20
30mm Synthetic fused silica No <3' λ/20
2 weeks
£177.19
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-80C12-10
80mm Hard glass Rave.＞90% Yes <3' λ/10
2 weeks
£315.00
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/10
Rear surface Polished
details
TFAQ-20C06-20
20mm Synthetic fused silica No <3' λ/20
2 weeks
£88.58
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFA-40C06-10
40mm BK7 Rave.＞90% Yes <3' λ/10
6-12 weeks
£98.42
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-80C12-4
80mm Hard glass Rave.＞90% No <3' λ/4
6-12 weeks
£216.56
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/4
Rear surface Polished
details
TFAN-20C05-10
20mm BK7 Rave.＞90% No <3' λ/10
2 weeks
£34.00
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAN-40C06-1
40mm BK7 Rave.＞90% No <3' λ
6-12 weeks
£49.21
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ
Rear surface Polished
details
TFA-100C15-1
100mm Hard glass Rave.＞90% Yes <3' λ
2 weeks
£177.19
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ
Rear surface Polished
details
TFA-25C05-1
25mm BK7 Rave.＞90% Yes <3' λ
2 weeks
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ
Rear surface Polished
details
TFAN-40C06-20
40mm BK7 Rave.＞90% No <3' λ/20
2 weeks
£196.86
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-100C15-1
100mm Hard glass Rave.＞90% No <3' λ
6-12 weeks
£177.19
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ
Rear surface Polished
details
TFA-25C05-20
25mm BK7 Rave.＞90% Yes <3' λ/20
2 weeks
£78.74
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-50C08-4
50mm BK7 Rave.＞90% Yes <3' λ/4
2-3 weeks
£127.47
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-130C18-1
130mm Hard glass Rave.＞90% Yes <3' λ
2 weeks
£285.46
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ
Rear surface Polished
details
TFA-10C03-10
10mm BK7 Rave.＞90% Yes <3' λ/10
2 weeks
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFAQ-10C06-20
10mm Synthetic fused silica Yes <3' λ/20
2 weeks
£63.53
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-25C05-4
25mm BK7 Rave.＞90% No <3' λ/4
6-12 weeks
£29.52
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Polished
details
TFAQ-50C10-20
50mm Synthetic fused silica Yes <3' λ/20
6-12 weeks
£442.98
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 10mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-130C18-1
130mm Hard glass Rave.＞90% No <3' λ
6-12 weeks
£285.46
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ
Rear surface Polished
details
TFAN-10C05-20
10mm BK7 Rave.＞90% No <3' λ/20
2 weeks
£49.21
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ10mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAQN-25C06-20
25mm Synthetic fused silica No <3' λ/20
2 weeks
£118.12
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-50C08-10
50mm BK7 Rave.＞90% No <3' λ/10
2 weeks
£147.65
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-150C20-1
150mm Hard glass Rave.＞90% Yes <3' λ
6-12 weeks
£393.74
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ
Rear surface Polished
details
TFA-12.7C05-10
12.7mm BK7 Rave.＞90% Yes <3' λ/10
2 weeks
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ12.7mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFAQ-25.4C06-20
25.4mm Synthetic fused silica Yes <3' λ/20
6-12 weeks
£118.12
Material Synthetic fused silica
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ25.4mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFA-50.8C08-10
50.8mm BK7 Rave.＞90% Yes <3' λ/10
2 weeks
£147.65
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ50.8mm
Thickness t 8mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-150C20-1
150mm Hard glass Rave.＞90% No <3' λ
6-12 weeks
£393.74
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ
Rear surface Polished
details
TFA-15C05-10
15mm BK7 Rave.＞90% Yes <3' λ/10
6-12 weeks
£24.15
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-30C05-4
30mm BK7 Rave.＞90% Yes <3' λ/4
2-3 weeks
£47.41
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-60C10-10
60mm Hard glass Rave.＞90% Yes <3' λ/10
6-12 weeks
£246.09
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-15C03-10
15mm BK7 Rave.＞90% No <3' λ/10
6-12 weeks
£24.15
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFAQ-30C06-20
30mm Synthetic fused silica Yes <3' λ/20
6-12 weeks
£177.19
Material Synthetic fused silica
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-60C10-4
60mm Hard glass Rave.＞90% No <3' λ/4
2-3 weeks
£157.49
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/4
Rear surface Polished
details
TFAQN-15C06-20
15mm Synthetic fused silica No <3' λ/20
2 weeks
£68.91
Material Synthetic fused silica
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ15mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-30C05-10
30mm BK7 Rave.＞90% No <3' λ/10
6-12 weeks
£57.26
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Polished
details
TFA-80C12-1
80mm Hard glass Rave.＞90% Yes <3' λ
2 weeks
£137.82
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ
Rear surface Polished
details
TFA-20C05-10
20mm BK7 Rave.＞90% Yes <3' λ/10
6-12 weeks
£34.00
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-40C06-1
40mm BK7 Rave.＞90% Yes <3' λ
6-12 weeks
£49.21
Material BK7
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ
Rear surface Polished
details
TFA-80C12-20
80mm Hard glass Rave.＞90% Yes <3' λ/20
6-12 weeks
£630.00
Material Hard glass
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-20C03-10
20mm BK7 Rave.＞90% No <3' λ/10
2 weeks
£34.00
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 3mm
Surface Flatness λ/10
Rear surface Ground
details
TFA-40C06-20
40mm BK7 Rave.＞90% Yes <3' λ/20
6-12 weeks
£196.86
Material BK7
Coating Al+SiO
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/20
Rear surface Polished
details
TFAN-80C12-10
80mm Hard glass Rave.＞90% No <3' λ/10
6-12 weeks
£315.00
Material Hard glass
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/10
Rear surface Polished
details
TFAN-20C05-20
20mm BK7 Rave.＞90% No <3' λ/20
2 weeks
£68.91
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/20
Rear surface Ground
details
TFAN-40C06-4
40mm BK7 Rave.＞90% No <3' λ/4
6-12 weeks
£78.74
Material BK7
Coating Al only
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/4
Rear surface Polished
details
TFA-100C15-4
100mm Hard glass Rave.＞90% Yes <3' λ/4
6-12 weeks
£246.09
Material Hard glass
Coating Al+MgF2
Parallelism ＜3′
Incident angle 45°
Laser Damage Threshold 0.25J/cm2
Surface Quality (Scratch-Dig) 40-20
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ/4
Rear surface Polished

You must be logged in to ask questions

◦With four types to choose from; (TFAN/TFAQN) which is coated with aluminum only, (TFA/TFAQ) which is coated with a protective coating against accidental hard scratches, (TFAE) which is coated aluminum and a protective coating to increase the reflectance of ultraviolet and lastly, (OPBA/OPSQA) which provides Aluminum with protective coat on the optical parallel substrate.
◦For ultraviolet, visible and near-infrared light applications.
◦For low thermal expansion mirrors, we have (TFAQ/TFAQN) which is made of Synthetic fused silica that provides high rigidity and high precision surface quality.
