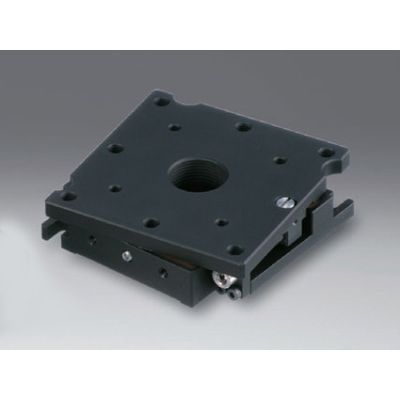

60x60mm Square, Brass, Dovetail Rotation Stage, +/-7 Deg Fine Adjustment, Hex Screw Drive, M4 Threads
KSSA-606
×
The KSSA stages are fine rotation stages having a square table top. These stages are suitable for making minute angle adjustment in applicationswhere a minimasl footprint is desirrd.
| Name | 60x60mm Square, Brass, Dovetail Rotation Stage, +/-7 Deg Fine Adjustment, Hex Screw Drive, M4 Threads |
|---|---|
| Weight | 0.7000kgs |
| Guide |
|
| Attention |
|
| Image Label | Rotation Stage Brass 60mm Square 14 Degree Fine Screw Adjustment and Lockable with Metric Holes |
| Stage Size | 60×60mm |
| Rotation Range | ±7° |
| Load Capacity | 68.6N (7.0kg) |
| Mounting Thread | M4 |
| Stage Size | 60×60mm |
| Rotation Range | ±7mm |
| Scale Readable Resolution | - |
| Micrometer Readable Resolution | about 1.47° |
| Guide Method | Dovetail method |
| Primary Material | Brass |
| Finish | Super black chrome |
| Load Capacity | 68.6N(7.0kgf) |
| Max. Moment Capacity | - |
| Moment Stiffness | 1.0″/N･cm |
| Parallelism | 50μm |
| Eccentricity | - |
| Wobble | - |
In stock
SKU
KSSA-606
£318.65
Customize product
The KSSA stages are fine rotation stages having a square table top. These stages are suitable for making minute angle adjustment in applicationswhere a minimasl footprint is desirrd.
