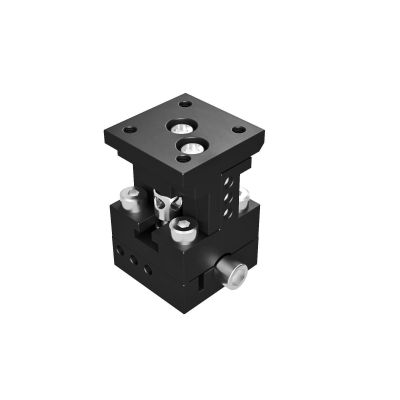

15X15mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-2mm, M2 Threads
TASB-154
×
XZ axis translation stages with horizontal top plate.
Space saving design offers compact footprints.
Appropriate for system integration.
Space saving design offers compact footprints.
Appropriate for system integration.
| Name | 15X15mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-2mm, M2 Threads |
|---|---|
| Weight | 0.0300kgs |
| Guide |
|
| Attention | - |
| Image Label | Preset XZ Stage 15×15mm Size Metric Threads 4mm X 2mm Z Travel |
| Stage Size | 15×15mm |
| Travel | X axis : ±2mm Z axis : ＋2・-0 |
| Load Capacity | 4.9N (0.5kg) |
| Guide Method | Dovetail method |
| Primary Material | Brass |
| Finish | Super black chrome |
| Screw Pitch | 0.4mm |
| Travel Accuracy / Straightness | 30μm |
| Max. Moment Capacity / Pitch | - |
| Max. Moment Capacity / Roll | - |
| Max. Moment Capacity / Yaw | - |
| Moment Stiffness / Pitch | - |
| Moment Stiffness / Roll | - |
| Parallelism | 150μm |
In stock
SKU
TASB-154
£228.44
Customize product
XZ axis translation stages with horizontal top plate.
Space saving design offers compact footprints.
Appropriate for system integration.
Space saving design offers compact footprints.
Appropriate for system integration.
