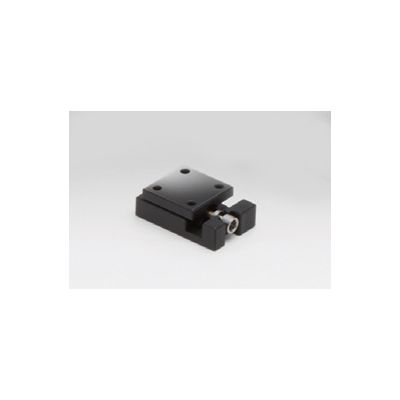

15X15mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-3mm, M2 Threads

TAS-151

Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.

More Information
Name	15X15mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-3mm, M2 Threads
Weight	0.0200kgs
Guide	Use adaptor plates for TAS-2060 (SP-127-1 (WEB Reference Catalog Code/W6069) and SP-134 (WEB Reference Catalog Code/W6076) ) to mount post holders and various stages.
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for more information.
Image Label	Leadscrew X Stage 15×15mm Size Metric Threads 6mm Travel
Stage Size	15×15mm
Travel	±3mm
Load Capacity	9.8N (1.0kg)
Mounting Thread	M2
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Screw Pitch	0.4mm
Travel Accuracy / Straightness	20μm
Max. Moment Capacity / Pitch	0.05N･m
Max. Moment Capacity / Roll	0.05N･m
Max. Moment Capacity / Yaw	0.02N･m
Moment Stiffness / Pitch	-
Moment Stiffness / Roll	-
Parallelism	50μm

In stock

SKU

TAS-151

£90.21

Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.
