Test Target Holder

TGH-30

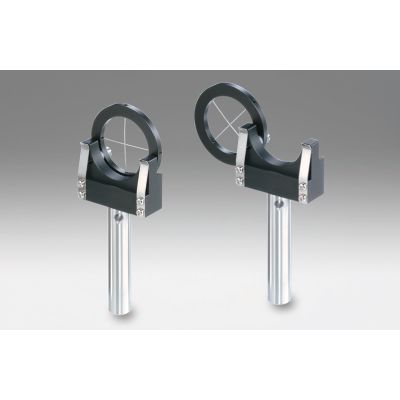

Fixtures used for optical axis adjustment of non-visible lasers. Insert IR sensor cards or van paper in the path using the spring clips, rotate cross wires into the laser light to confirm the positional relationship of the shadow of beam and cross wire.
◦The cross wires are retractable and are placed in the center of posts to enable good repeatability.
◦If two target holders are placed leaving an interval, they can be used as a laser beam tilt adjustment jig.
More Information
Name Test Target Holder
Weight 0.1000lbs
Guide
  • Iris diaphragm (IH) convenient for visible light lasers is also available.
  • WEB Reference Catalog Code/W4039
Attention
  • Use IR sensor cards with large light receiving surface. Card type IR/UV sensors (SIRC-1 or SUVC-1) cannot be used.
Clear Aperture φ30mm
MAX Holding Thickness 3mm
In stock
SKU
TGH-30
SGD 146.30

Delivery in : in stock

Fixtures used for optical axis adjustment of non-visible lasers. Insert IR sensor cards or van paper in the path using the spring clips, rotate cross wires into the laser light to confirm the positional relationship of the shadow of beam and cross wire.
