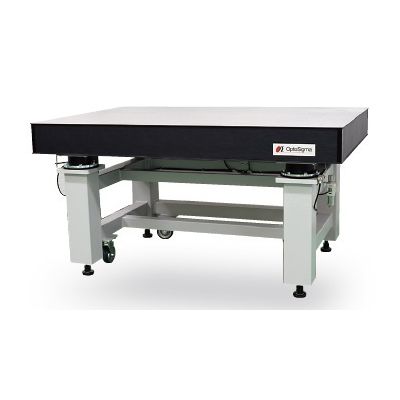

Large Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling)
HOA-129-100LA
Precision air spring vibration isolation system. Best suited for isolating vertical vibrations.
◦This vibration isolator rapidly attenuates vibrations transmitted to mounted equipment and instruments, and is essential for mounting equipment and instruments that are affected by vibration.
◦The bench is lightweight with excellent stiffness due to the aluminum honeycomb core.
◦The top surface of the bench is magnetic stainless steel plate, with tapped holes (M6 25×25mm matrix) over the entire surface allowing both magnetic type and screw fixing type systems or equipment to be mounted.
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
◦The bench is lightweight with excellent stiffness due to the aluminum honeycomb core.
◦The top surface of the bench is magnetic stainless steel plate, with tapped holes (M6 25×25mm matrix) over the entire surface allowing both magnetic type and screw fixing type systems or equipment to be mounted.
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
| Name | Large Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling) |
|---|---|
| Weight | 195.0000lbs |
| Guide |
|
| Attention |
|
| Image Label | Large Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling) |
| A x B | 1200mm x 900mm |
| H | 750mm |
| T | 100mm |
| Type | Automatic Vertical Leveling |
| A×B | 1,200×900mm |
| H | 750mm |
| T | 100mm |
| Load capacity | 1,961N(about 200kgf) |
In stock
SKU
HOA-129-100LA
$7,853.70
Customize product
Precision air spring vibration isolation system. Best suited for isolating vertical vibrations.
