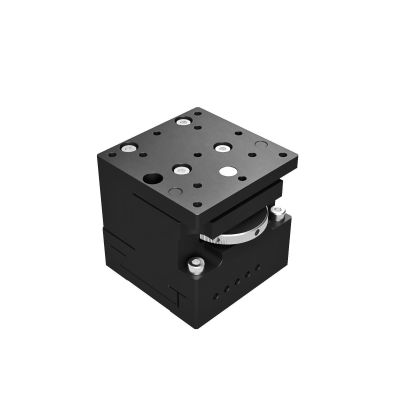

60X60mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-10mm, M4 Threads
TASB-604
×
XZ axis translation stages with horizontal top plate.
Space saving design offers compact footprints.
Appropriate for system integration.
Space saving design offers compact footprints.
Appropriate for system integration.
| Name | 60X60mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-10mm, M4 Threads |
|---|---|
| Weight | 1.4000kgs |
| Guide |
|
| Attention | - |
| Image Label | Preset XZ Stage 60×60mm Size Metric Threads 20mm X 7mm Z Travel |
| Stage Size | 60×60mm |
| Travel | X axis : ±10mm Z axis : ＋7・-0 |
| Load Capacity | 98N (10.0kg) |
| Guide Method | Dovetail method |
| Primary Material | Brass |
| Finish | Super black chrome |
| Screw Pitch | 0.5mm |
| Travel Accuracy / Straightness | 30μm |
| Max. Moment Capacity / Pitch | 1.0N･m |
| Max. Moment Capacity / Roll | 1.0N･m |
| Max. Moment Capacity / Yaw | - |
| Moment Stiffness / Pitch | 1.1″/N･cm |
| Moment Stiffness / Roll | 2.1″/N･cm |
| Parallelism | 150μm |
In stock
SKU
TASB-604
₹33,466.40
Customize product
XZ axis translation stages with horizontal top plate.
Space saving design offers compact footprints.
Appropriate for system integration.
Space saving design offers compact footprints.
Appropriate for system integration.
