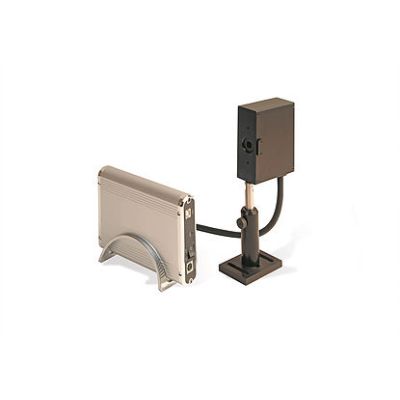

InGaAs (IR) beam profiler, 3 blades for 800 - 1800 nm
BA3-IR5-USB
Multiple Scanning Knife-Edge Beam Profiler
| Name | InGaAs (IR) beam profiler, 3 blades for 800 - 1800 nm |
|---|---|
| Weight | 0.1000kgs |
| Image Label | Multiple Scanning Knife-Edge Beam Profiler : 3-blades, InGaAs detector 5mm circular |
| Spectral Range | 800 - 1800 nm |
| Beam Size Range | 3 µm - 5 mm |
| Number of Blades | 3 |
| Specifications | 3-blades, InGaAs detector 5mm circular |
| Sensor Type | InGaAs (IR) |
| Beamwidth Resolution | 1 µm for beams>100 µm in size, 0.1µm for beams<100µm in size |
| Beamwidth Accuracy | ±2% |
| Power Range | 10 µW to 5 mW |
| Power Accuracy | ±10% |
| Saturation | 0.1 W/cm² without filter |
| Operature Temperature | 10°C to 35°C |
In stock
SKU
BA3-IR5-USB
Customize product
Multiple Scanning Knife-Edge Beam Profiler
