Fiber Alignment Unit

Fiber Alignment Unit

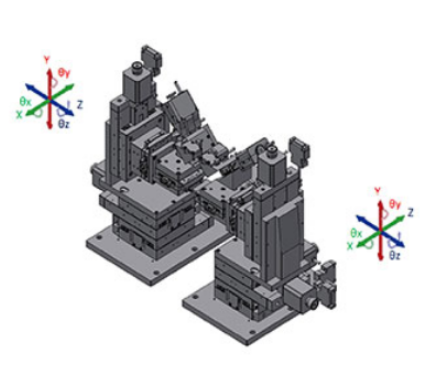

Motorized Optical Fiber Alignment Stage Unit consists of two 6-axis alignment stages for precise positioning of optical fibers and waveguides.

  • It combines θx/θy/θz rotation with XYZ linear motion and is available in symmetrical L and R type configurations.
  • Compared with the conventional DAU-080A unit, it offers higher rigidity and longer travel.
  • Magnetic mounting and precision holder mechanisms ensure positional repeatability, and a range of compatible holders—fiber, rotation, and array—supports application changes with different devices.

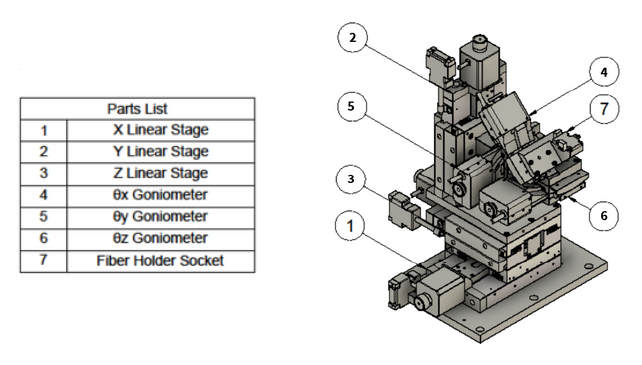

    • System Components

    fau-system-components

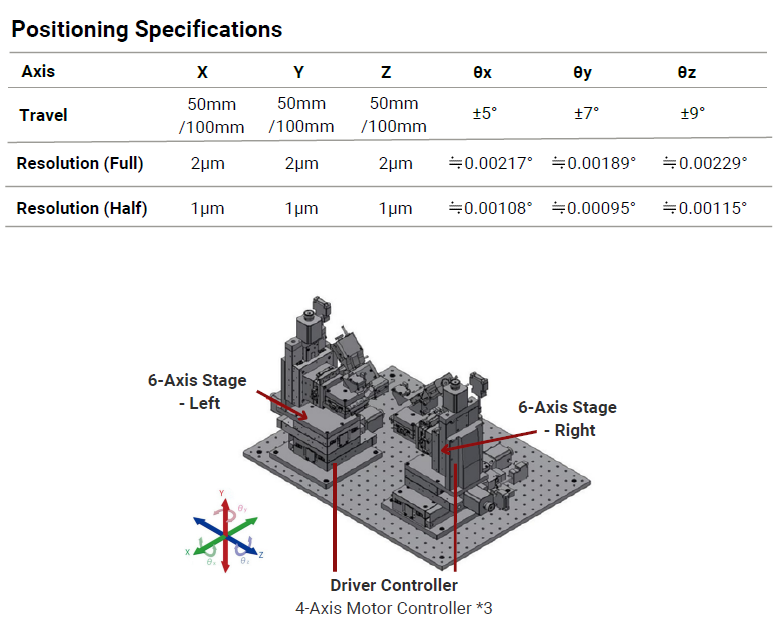

    fau-positioning

    Configuration Options

    • 6-Axis System: Ideal for standard fiber alignment tasks.
    • 12-Axis System: Offers higher precision and flexibility for complex optical alignments.
    • Manual or Motorized stage options.
