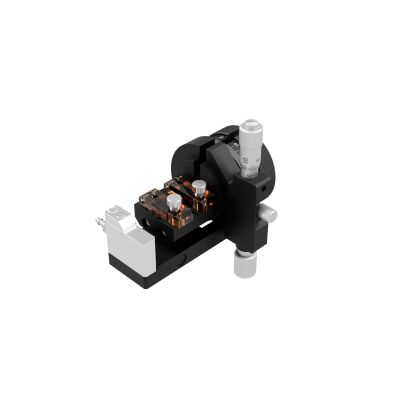

Rotating Fiber Holder with Coarse/Fine Adjustment – Ø125–900 µm – Right (with suction)
FHRSW-125/900R
Rotating fiber holder with coarse/fine adjustment to rotate and align the polarization plane of polarization-maintaining fibers. It is used by attaching it to the holder mounting section of the alignment unit.
The plastic pushers have built-in magnetizing set bolts, gently clamps the polarization-maintaining fiber by the magnetic force of the fiber holder's magnets.
Attachment to the fiber alignment unit is a one-touch operation using magnets for easy connection and disconnection.
Can be attached to the DAU series fiber alignment unit.
| Name | Rotating Fiber Holder with Coarse/Fine Adjustment – Ø125–900 µm – Right (with suction) |
|---|---|
| Weight | 0.2000kgs |
| Guide | We have two types of fiber holders: the FHRSW series with a suction function at the tip and the FHRS series without a suction function. We also have three jacket diameters of 250 μm, 400 μm, and 900 μm. All cladding diameters are specified at 125 μm. The FHRSW series comes with a vacuum suction tube (2m). |
| Attention | When removing the fiber retention unit, please do so at the 0 degree position. A vacuum pump is also required to use the adsorption mechanism. Please contact our sales department for information on vacuum pump peripheral equipment. |
| Fiber optic cladding diameter | 125μm |
| Fiber optic jacket diameter | 900μm |
| Travel | Coarse: 360°, Fine: ±5° |
| Fine Resolution | 0.026°/DIV |
| Material / Finish | Aluminum / Black anodized |
In stock
SKU
FHRSW-125/900R
€1,188.00
Customize product
Rotating fiber holder with coarse/fine adjustment to rotate and align the polarization plane of polarization-maintaining fibers. It is used by attaching it to the holder mounting section of the alignment unit.
