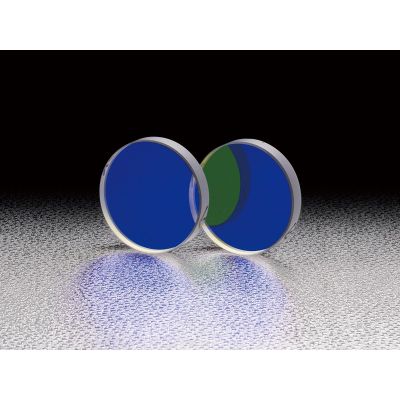

0-45° Wide Incidence Dielectric Mirror

TFVMQ-50C08-3000

You can use the 0-45° Wide Angle Dielectric Mirrors for an optical system for reciprocating the light between two mirrors or Michelson interferometer, if you want to use a mirror at an incident angle of 45 ° or less. When used at 45 degree and 0 degree incidence angle, one mirror can be shared to obtain high reflectivity.
  • Very high reflectivity can be obtained between 0 degree to 45 degree angle of incidence.
  • If used at a fixed angle of incidence, it can also be used as a broadband mirror.
  • Since there is no absorption in the coating there will be very little change in the performance over time and the mirror is durable even with continuous laser irradiation.
More Information
Name 0-45° Wide Incidence Dielectric Mirror
Weight 0.2000kgs
Standard Coatings Available No
Guide
  • Please consult our Sales Division for assistance in your selection and for customized products. (customized on outer diameter, wavelength characteristic, etc.) Please use the inquiry sheet.
  • This mirror is also available as a “HTFM mirror” which provides guaranteed surface accuracy after coating.
Attention
  • Reflectance wavelength characteristics of dielectric multilayer coating vary depending on the polarization state of the incident beam. Reflectance of P-polarized light is lower than that of the S-polarized light, and the reflection range will also be narrower.
  • When used not in adaptive wavelength, reflectance may be lower.
  • If a mirror is used other than normal incidence, wavelength reflectance characteristics also vary depending on the polarization condition.
  • The reflectance characteristics of the 45 degree angle of incidence listed are the average value of the reflectance of P-polarized light and S-polarized light.
Diameter 50mm
Diameter φD 50mm
Material Synthetic fused silica
Rear Surface Ground
Parallelism <3'
Surface Flatness λ/10
Coating Dielectric multi-layer coating
Incident angle 0°~45°
Reflectance >99.4%
Clear aperture 80% of the diameter
Rear surface Polished
Diameter φD φ50 mm
Thickness t 8 mm
Wavelength Range 3000 nm
Surface Quality (Scratch-Dig) 20 - 10
Out of stock
SKU
TFVMQ-50C08-3000
€848.60
You can use the 0-45° Wide Angle Dielectric Mirrors for an optical system for reciprocating the light between two mirrors or Michelson interferometer, if you want to use a mirror at an incident angle of 45 ° or less. When used at 45 degree and 0 degree incidence angle, one mirror can be shared to obtain high reflectivity.
