Low Dispersion Mirrors for Femtosecond Laser

FLM - FLMHP

More about

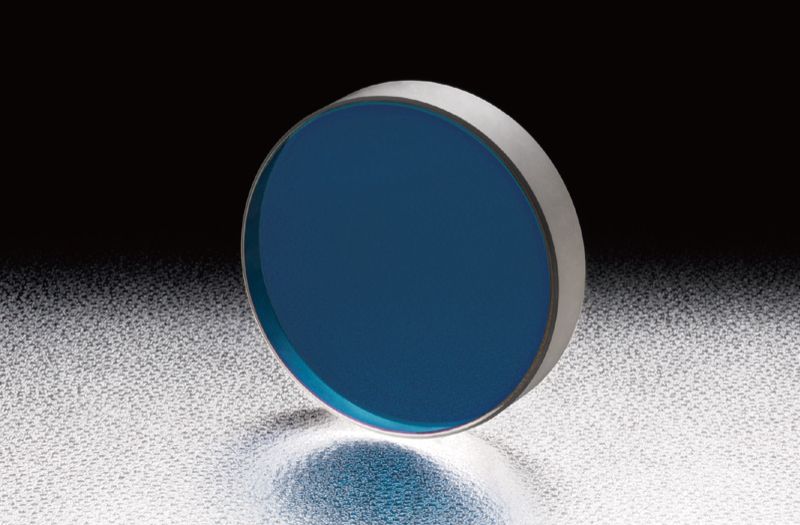

Low Dispersion Mirrors for Femtosecond Laser
In stock
SKU
FLM - FLMHP
This mirror is designed to provide low wavelength dispersion suitable for use with ultra-short pulse lasers with 100 femtosecond or less.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Design wavelength
Diameter φD
Reflectance
Diameter
Incident Angle
Material
Rear Surface
Parallelism
Surface Flatness
Delivery Price Add to cart
details
FLM1-12.7C05-800
800nm 12.7mm ＞99.8%
5-8 weeks
€295.60
Material BK7
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 720 - 900nm
Wavelength Range (P polarization) 760 - 840nm

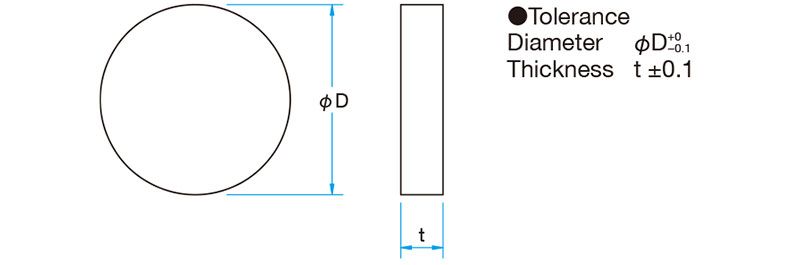

Diameter φD φ12.7mm
Thickness t 5mm
Reflectance ＞99.8%
Laser Damage Threshold<sup>*</sup> 1J/cm2
Availability Please contact
details
FLM2-12.7C05-800
800nm 12.7mm ＞99.8%
1 week
€288.50
Material BK7
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 700 - 940nm
Wavelength Range (P polarization) 740 - 860nm
Diameter φD φ12.7mm
Thickness t 5mm
Reflectance ＞99.8%
Laser Damage Threshold<sup>*</sup> 0.5J/cm2
Availability Please contact
details
FLMHP-12.7C05-800
800nm 12.7mm ＞99%
5-8 weeks
€373.90
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 745 - 855nm
Wavelength Range (P polarization) 775 - 825nm
Diameter φD φ12.7mm
Thickness t 5mm
Reflectance ＞99%
Laser Damage Threshold<sup>*</sup> 2J/cm2
Availability Please contact
details
FLMHP-12.7C05-1030
1030nm 12.7mm 12.7mm 45° Synthetic fused silica Polished <3' λ/10
5-8 weeks
€1,268.90
Contact us
Coating Dielectric multi-layer coating
Surface Quality (Scratch-Dig) 10 - 5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 1000 - 1060 nm
Wavelength Range (P polarization) 1000 - 1060 nm
Thickness t 5 mm
Reflectance ＞99.9%
Laser Damage Threshold 0.25 J/cm2( Laser pulse width: 200 fs, wavelength: 1030 nm )
details
FLMHP-12.7C05-515
515nm 12.7mm 12.7mm 45° Synthetic fused silica Polished <3' λ/10
5-8 weeks
€1,202.10
Contact us
Coating Dielectric multi-layer coating
Surface Quality (Scratch-Dig) 10 - 5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 1000 - 1060 nm
Wavelength Range (P polarization) 1000 - 1060 nm
Thickness t 5 mm
Reflectance ＞99.9%
Laser Damage Threshold 0.15 J/cm2( Laser pulse width: 200 fs, wavelength: 515 nm )
details
FLM1-25.4C05-800
800nm 25.4mm ＞99.8%
5-8 weeks
€313.10
Material BK7
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 720 - 900nm
Wavelength Range (P polarization) 760 - 840nm
Diameter φD φ25.4mm
Thickness t 5mm
Reflectance ＞99.8%
Laser Damage Threshold<sup>*</sup> 1J/cm2
Availability Please contact
details
FLM2-25.4C05-800
800nm 25.4mm ＞99.8%
1 week
€305.50
Material BK7
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 700 - 940nm
Wavelength Range (P polarization) 740 - 860nm
Diameter φD φ25.4mm
Thickness t 5mm
Reflectance ＞99.8%
Laser Damage Threshold<sup>*</sup> 0.5J/cm2
Availability Please contact
details
FLMHP-25.4C05-800
800nm 25.4mm ＞99%
5-8 weeks
€391.40
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 745 - 855nm
Wavelength Range (P polarization) 775 - 825nm
Diameter φD φ25.4mm
Thickness t 5mm
Reflectance ＞99%
Laser Damage Threshold<sup>*</sup> 2J/cm2
Availability Please contact
details
FLMHP-25.4C05-1030
12.7mm 12.7mm 45° Synthetic fused silica Polished <3' λ/10
5-8 weeks
€1,335.70
Contact us
Coating Dielectric multi-layer coating
Surface Quality (Scratch-Dig) 10 - 5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 1000 - 1060 nm
Wavelength Range (P polarization) 1000 - 1060 nm
Thickness t 5 mm
Reflectance ＞99.9%
Laser Damage Threshold 0.25 J/cm2( Laser pulse width: 200 fs, wavelength: 1030 nm )
details
FLMHP-25.4C05-515
515nm 25.4mm 25.4mm 45° Synthetic fused silica Polished <3' λ/10
5-8 weeks
€1,268.90
Contact us
Coating Dielectric multi-layer coating
Surface Quality (Scratch-Dig) 10 - 5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 1000 - 1060 nm
Wavelength Range (P polarization) 1000 - 1060 nm
Thickness t 5 mm
Reflectance ＞99.9%
Laser Damage Threshold 0.15 J/cm2( Laser pulse width: 200 fs, wavelength: 515 nm )
details
FLM1-30C05-800
800nm 30mm ＞99.8%
5-8 weeks
€347.90
Material BK7
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 720 - 900nm
Wavelength Range (P polarization) 760 - 840nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance ＞99.8%
Laser Damage Threshold<sup>*</sup> 1J/cm2
Availability From stock
details
FLM2-30C05-800
800nm 30mm ＞99.8%
6-12 weeks
€339.40
Material BK7
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 700 - 940nm
Wavelength Range (P polarization) 740 - 860nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance ＞99.8%
Laser Damage Threshold<sup>*</sup> 0.5J/cm2
Availability From stock
details
FLMHP-30C05-800
800nm 30mm ＞99%
5-8 weeks
€426.20
Material Synthetic fused silica
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism ＜5″
Surface Quality (Scratch-Dig) 10−5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 745 - 855nm
Wavelength Range (P polarization) 775 - 825nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance ＞99%
Laser Damage Threshold<sup>*</sup> 2J/cm2
Availability Please contact
details
FLMHP-30C05-1030
1030nm 30mm φ30mm 45° Synthetic fused silica Polished <3' λ/10
5-8 weeks
€1,669.60
Contact us
Coating Dielectric multi-layer coating
Surface Quality (Scratch-Dig) 10 - 5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 1000 - 1060 nm
Wavelength Range (P polarization) 1000 - 1060 nm
Thickness t 5 mm
Reflectance ＞99.9%
Laser Damage Threshold 0.25 J/cm2( Laser pulse width: 200 fs, wavelength: 1030 nm )

You must be logged in to ask questions

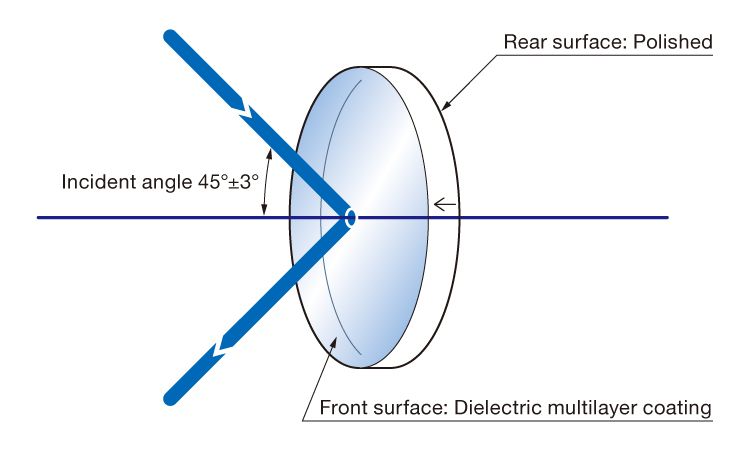

◦We have designed a special thin film coating that optimizes wavelength dispersion, range and the strength of lasers.
◦It has the effect of suppressing the spread of the pulse width produced by a plurality of reflecting mirrors.
◦There are three types available, FLM1 standard, FLM2 wide wavelength band, and FLMHP for high power femtosecond laser*.
◦These mirrors are designed and produced for usage within the microscopy with femtosecond laser and optical systems with femtosecond time-resolved spectroscopy.
