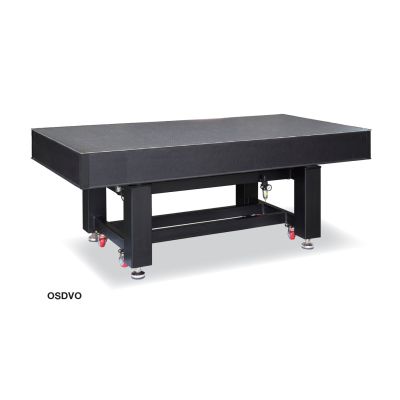

High performance Pneumatic Isolation M6 Table 1200mm x 600mm x 100mm
OSDVIO-I-1206M-100t(800H)
Our highest performance vibration isolation system utilizes independent isolation mechanisms for the horizontal and vertical axes.
This system achieves the highest performance and efficiency for the most demanding applications.
This system achieves the highest performance and efficiency for the most demanding applications.
◦This vibration isolator rapidly attenuates vibrations transmitted to mounted equipment and instruments, and is essential for equipment and instruments that are affected by vibration.
◦The bench is lightweight and has excellent stiffness due to the steel honeycomb core.
◦The top surface of the bench is made from a magnetic stainless steel with tapped holes (M6 25×25mm matrix).
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
◦The bench is lightweight and has excellent stiffness due to the steel honeycomb core.
◦The top surface of the bench is made from a magnetic stainless steel with tapped holes (M6 25×25mm matrix).
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
| Name | High performance Pneumatic Isolation M6 Table 1200mm x 600mm x 100mm |
|---|---|
| Weight | 141.0000kgs |
| Guide |
|
| Attention |
|
| H | 800mm |
| T | 100mm |
| A × B | 1,200×600mm |
| H | 800mm |
| T | 100mm |
| Distance to first hole | 37.5mm |
| Load capacity | 310kg |
In stock
SKU
OSDVIO-I-1206M-100t(800H)
Customize product
Our highest performance vibration isolation system utilizes independent isolation mechanisms for the horizontal and vertical axes.
This system achieves the highest performance and efficiency for the most demanding applications.
This system achieves the highest performance and efficiency for the most demanding applications.
