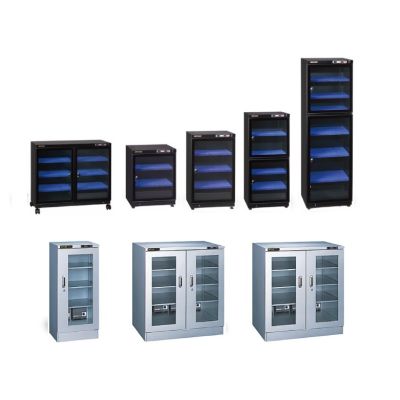

Dry Cabinet (Electronic Drying Case)
TDC-297-PDX
Damp-proof storage cabinets, suitable for storing optics such as lenses, mirrors, and prisms, and optical hardware at a controlled humidity.
◦Humidity can be controlled with humidity adjuster. (+/−5 − 7%RH)
◦Humidity inside and outside of the Dry Cabinet can be checked with digital dual hygrometer.
◦Photo catalysis is applied to shelf-sheet, which reacts to in-room visible light, also decomposes and removes bacteria, virus and smell.
◦Electrical outlet equipped on rear side top right corner (general-use power supply: up to 100V 500W)
◦Our standard Dry Cabinets are intended to use in 100V. Please contact us when you used outside of Japan.
◦Load capacity per shelf plate is 490N (50kgf).
◦Humidity inside and outside of the Dry Cabinet can be checked with digital dual hygrometer.
◦Photo catalysis is applied to shelf-sheet, which reacts to in-room visible light, also decomposes and removes bacteria, virus and smell.
◦Electrical outlet equipped on rear side top right corner (general-use power supply: up to 100V 500W)
◦Our standard Dry Cabinets are intended to use in 100V. Please contact us when you used outside of Japan.
◦Load capacity per shelf plate is 490N (50kgf).
| Name | Dry Cabinet (Electronic Drying Case) |
|---|---|
| Weight | 52.0000kgs |
| Guide | - |
| Attention |
|
| Image Label | Dry Cabinet 880×448×980mm |
| External dimension <br> (WxDxH) with rubber feet | 880×448×980mm |
| Internal Dimension <br> (WxDxH) | 878×390×850mm |
| Effective Capacity | 291ℓ |
| Attachment Shelf Board (With cushion sheet) | 3 sheets |
| Power <br>Consumption | 0 - 10W/H Max218W |
In stock
SKU
TDC-297-PDX
Customize product
Damp-proof storage cabinets, suitable for storing optics such as lenses, mirrors, and prisms, and optical hardware at a controlled humidity.
