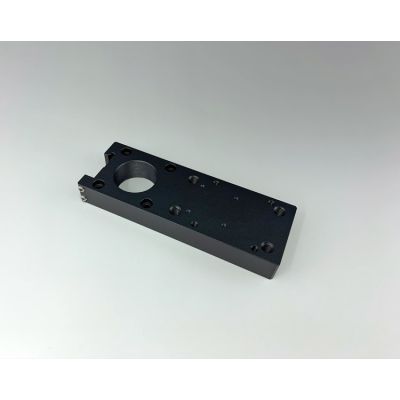

CageCore Stage Mounting Base

C30-CU-OLSM-M25

Skip to the beginning of the images gallery

A stage mount base for the core unit that allows to mount a 25x25mm or 40x40mm size stage and an objective lens to achieve a compact sample observation unit.

More Information

More Information
Name	CageCore Stage Mounting Base
Weight	0.1560kgs
Guide	Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. For consultation of optical system using cage system please contact Sales.
Attention	If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material	Aluminum
Compatible Mount	C30-CB-H25.4/ CU-010
Compatiblefixing screw	M25 P0.75

In stock

SKU

C30-CU-OLSM-M25

€251.80

A stage mount base for the core unit that allows to mount a 25x25mm or 40x40mm size stage and an objective lens to achieve a compact sample observation unit.
