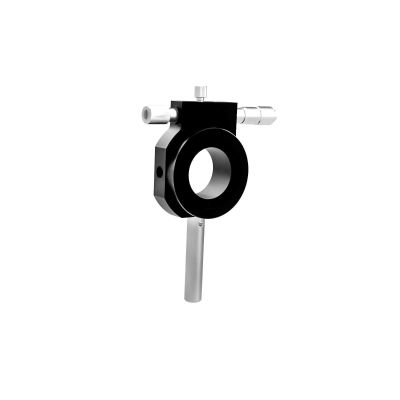

Polarizing Prism Holder 30mm Precision

GTPC-SPH30

Used to adjust polarizing prisms such as Glan-Thompson prisms. Best used for precision alignment of Glan-Thompson prisms or for polarimetry devices.

More Information
Name	Polarizing Prism Holder 30mm Precision
Weight	0.4000kgs
Guide	Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information. Holders for polarizing prisms of diameters or thickness not in the specifications listed in the catalog can be made to order.
Attention	These holders are sold separately from the corresponding optics. WEB Reference Catalog Code/W3450 Rotary holders and adapters (GTPC-ADP) are also sold separately. Purchase the combination of three items, a Glan-Thompson prism, adapter and rotary holder, by checking the combinations listed in the following specification table.
Image Label	Polarizing Prism Holder 30mm Precision
Type	Precision Type
Compatible Adapters Diameter	φ34mm
Scale or Vernier MIN Reading	5′
Fine Adjustment Range	±5°
Micro Indicator Conversion	about 0.014°/DIV
Total Weight	0.32kg

In stock

SKU

GTPC-SPH30

$325.00

Used to adjust polarizing prisms such as Glan-Thompson prisms. Best used for precision alignment of Glan-Thompson prisms or for polarimetry devices.
