CageCore Stage Mounting Base
C30-CU-OLSM
In stock
SKU
C30-CU-OLSM
A stage mount base for the core unit that allows to mount a 25x25mm or 40x40mm size stage and an objective lens to achieve a compact sample observation unit.
Customize product
Filters
Enabled filters :
Remove all filters
Attention
▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
| Name | Delivery | Price | Add to cart | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
i
CageCore Stage Mounting Base

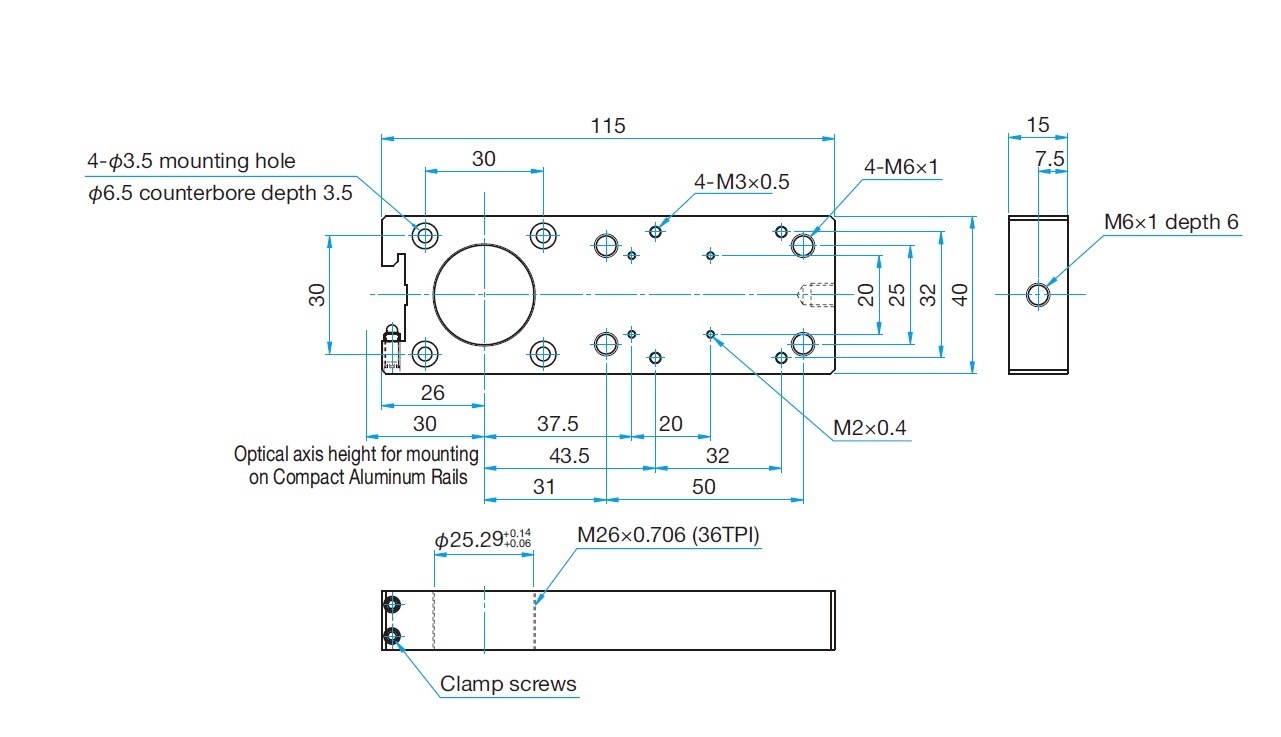

C30-CU-OLSM-M26 |
3-5 days
|
€251.80
|
|
|
||||||
|
i
CageCore Stage Mounting Base

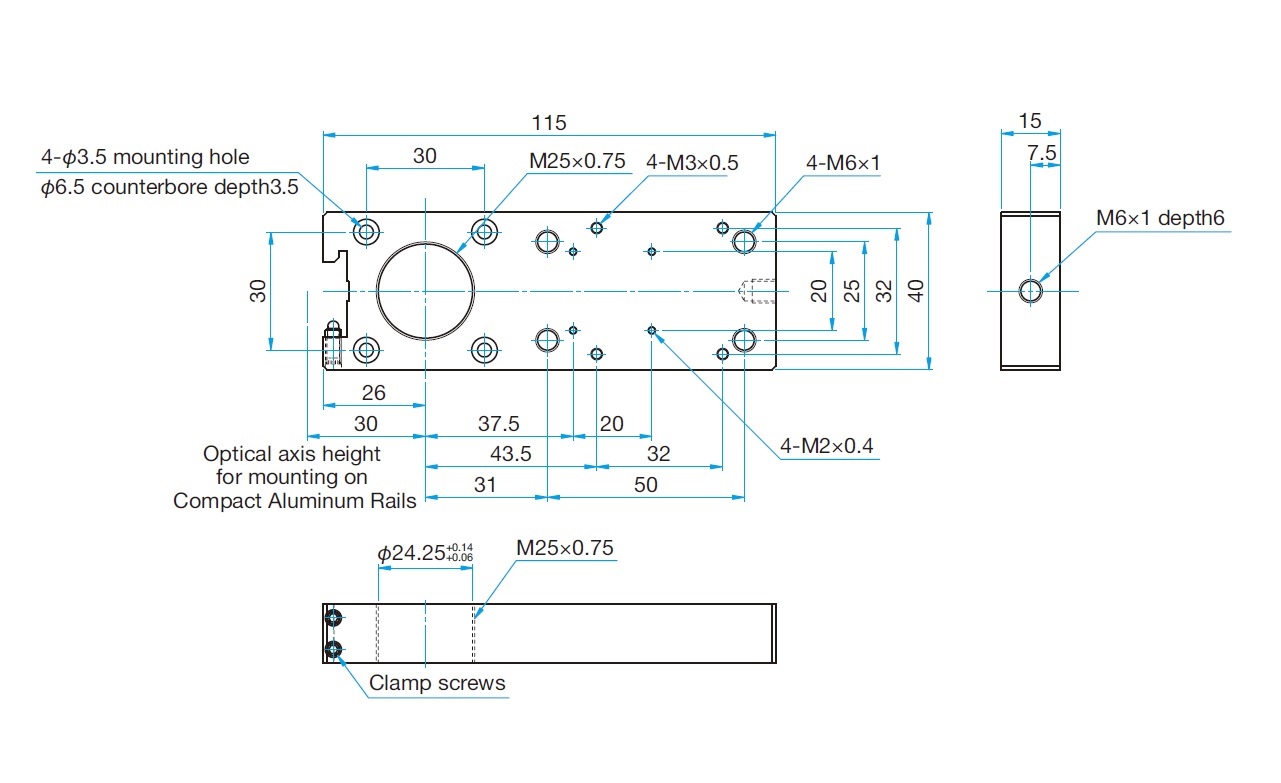

C30-CU-OLSM-M25 |
3-5 days
|
€251.80
|
|
|
||||||
|
i
CageCore Stage Mounting Base
C30-CU-OLSM-M20.32 |
3-5 days
|
€251.80
|
|
|
