Modular Microscope Systems (OUCI)

Modular Microscope Systems (OUCI)
We provide four different versions of modular, infinite-conjugate observation systems. For the purposes of experimental or production work, you can configure an appropriate observation system to suit your exact needs.
  • A modular microscope system optimized for high-resolution imaging

  • Diffraction limited resolution at all magnifications

  • Infinite conjugate optical design

  • Objective magnifications to 100X

  • Built-in coaxial illumination port

  • Modular components for user configuration





Application Examples

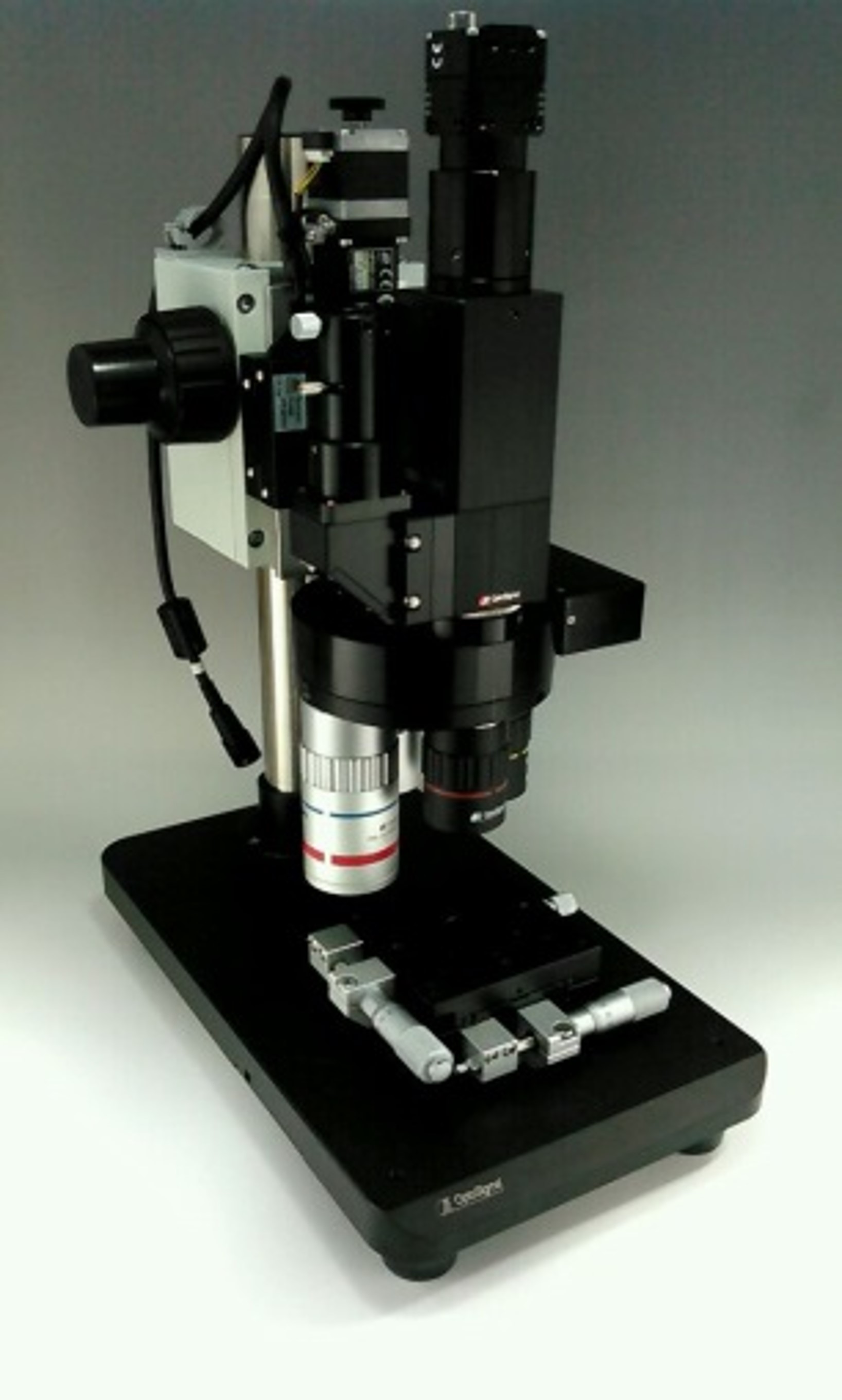

The OUCI can be user-configured to serve a multitude of diverse applications.  The configuration to the left includes a motorized turret holding four objectives, a motorized focus stage, a CMOS digital camera, an LED light source providing coaxial illumination, and a precision XY sample stage.

This OUCI can resolve features to 500nm and is used to identify defects in printed circuit boards as seen in the images to the right.  Even higher resolution can be achieved with our 100x Objective Lens (P/N: EPLE-100) which reaches 274nm resolution.



System Options





Find Out More
