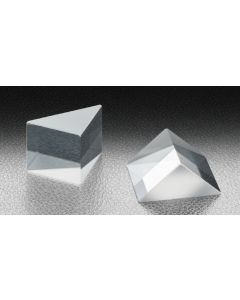

Knife Edge Right Angle Prisms

KRPB - KRPB4

More about
Knife Edge Right Angle Prisms
Out of stock
SKU
KRPB - KRPB4
The knife edge prism is polished to the sharp edges of the right angle surfaces and have no chamfers on these edges.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Coating
Material
Length
Delivery Price Add to cart
details
KRPB4-15-550
Protected Aluminum BK7
1 week
€139.30
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating 2-surface that make up the right angle ; Al+MgF2 (Protected Aluminum)
Obliquity ; Uncoated
Laser Damage Threshold 0.25J/cm2
A＝B 15mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 40−20
details
KRPB4-30-550
Protected Aluminum BK7 30mm
4-6 weeks
€375.47
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating 2-surface that make up the right angle ; Al+MgF2 (Protected Aluminum)
Obliquity ; Uncoated
Laser Damage Threshold 0.25J/cm2
A＝B 30mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 40−20
details
KRPB-20-4M
Uncoated BK7 20mm
1 week
€154.35
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 20mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 10−5
details
KRPB-10-10H
Uncoated BK7 10mm
1 week
€115.30
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 10mm
Surface flatness of substrate λ/10
Angle tolerance (90°) ±5″
Angle tolerance (45°) ±30″
Surface Quality (Scratch-Dig) 10−5
details
KRPB-25-10H
Uncoated BK7 25mm
1 week
€375.47
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 25mm
Surface flatness of substrate λ/10
Angle tolerance (90°) ±5″
Angle tolerance (45°) ±30″
Surface Quality (Scratch-Dig) 10−5
details
KRPB4-20-550
Protected Aluminum BK7 20mm
1 week
€206.65
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating 2-surface that make up the right angle ; Al+MgF2 (Protected Aluminum)
Obliquity ; Uncoated
Laser Damage Threshold 0.25J/cm2
A＝B 20mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 40−20
details
KRPB-10-4M
Uncoated BK7 10mm
1 week
€71.94
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 10mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 10−5
details
KRPB-25-4M
Uncoated BK7 25mm
1 week
€240.79
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 25mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 10−5
details
KRPB-15-10H
Uncoated BK7 15mm
1 week
€173.43
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 15mm
Surface flatness of substrate λ/10
Angle tolerance (90°) ±5″
Angle tolerance (45°) ±30″
Surface Quality (Scratch-Dig) 10−5
details
KRPB-30-10H
Uncoated BK7 30mm
1 week
€433.60
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 30mm
Surface flatness of substrate λ/10
Angle tolerance (90°) ±5″
Angle tolerance (45°) ±30″
Surface Quality (Scratch-Dig) 10−5
details
KRPB4-10-550
Protected Aluminum BK7 10mm
1 week
€95.94
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating 2-surface that make up the right angle ; Al+MgF2 (Protected Aluminum)
Obliquity ; Uncoated
Laser Damage Threshold 0.25J/cm2
A＝B 10mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 40−20
details
KRPB4-25-550
Protected Aluminum BK7 25mm
4-6 weeks
€269.39
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating 2-surface that make up the right angle ; Al+MgF2 (Protected Aluminum)
Obliquity ; Uncoated
Laser Damage Threshold 0.25J/cm2
A＝B 25mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 40−20
details
KRPB-15-4M
Uncoated BK7 15mm
1 week
€115.30
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 15mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 10−5
details
KRPB-30-4M
Uncoated BK7 30mm
1 week
€346.87
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 30mm
Surface flatness of substrate λ/4
Angle tolerance (90°) ±1′
Angle tolerance (45°) ±1′
Surface Quality (Scratch-Dig) 10−5
details
KRPB-20-10H
Uncoated BK7 20mm
1 week
€288.75
Material BK7 (Refractive index nd＝1.517)
Ridge Processing Right-angle ridge ; knike edge (Not chamfered) Other ridge ; Chamfered
Coating Uncoated (3 surfaces)
A＝B 20mm
Surface flatness of substrate λ/10
Angle tolerance (90°) ±5″
Angle tolerance (45°) ±30″
Surface Quality (Scratch-Dig) 10−5

You must be logged in to ask questions

◦With knife edge prism having no coating (KRPB) by using light in the range of 0±5.7 degrees angle of incidence to the slope surface the total reflection critical angle is obtained.
